YS32 Hubbell Electronic Components
Part#:YS32
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

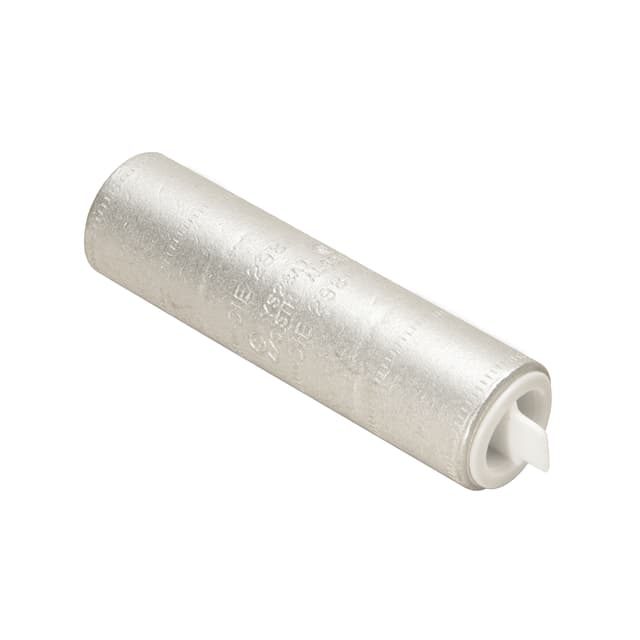

400 kcmil CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, BLUE Color Code, 19 or 470 Die Index ; Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used A
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YS32 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Feature - Barrel Type Long
- Connector Type Splice
- Type YS, Long Barrel
- Dimension - B Length inch 2.08 in
- Rating - KVA 35 kV
- Conductor - Copper Str Size Range 400 kcmil
- UL Listed Yes
- Sub Brand HYLINK
- Die Index 19 or 470
- Dimension - Length Overall inch 4.62 in
- Wire Size 400 kcmil
- Standards - Industry Standards Met UL 486A-486B
- Color Code Blue
- Feature - Barrel Style Chamfered
- UPC 12 Digit 7818105084044
- Voltage Rating 35 kV
- Certification - ETL No
- Minimum Pack Quantity 1
- Plating Type Tin - Electro Plated
- Plated Y
- Dimension - L Length Overall mm 117 mm
- Voltage - Maximum 35000
- Industry Standard(s) UL 486A-486B
- Conductor - Copper Str Size 400 kcmil
- Standards - RoHS Compliance Status CM
- EU RoHS Indicator Yes
- Trade Name HYLINK™
- UPC 781810508404
- Dimension - Strip Length inch 2-1/16
- Conductor - Copper Str Navy Size 400 (127) Navy
- Certification - CSA Approved Yes
- Certification - UL Recognized No
- Certification - cULus No
