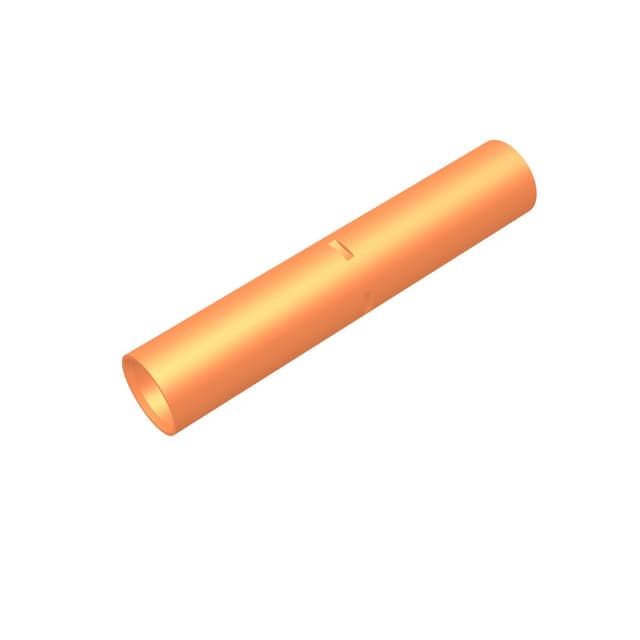

YS31 Hubbell Industrial Automation Components
Part#:YS31
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!
350 kcmil CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, RED Color Code, 18 or 324 Die Index. ; Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used A
About the manufacturer: Hubbell is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YS31 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Connector Type Splice
- Voltage - Maximum 35000
- Certification - cULus No
- Minimum Pack Quantity 1
- Conductor - Copper Str Size Range 350 kcmil
- Trade Name HYLINK™
- Feature - Barrel Type Long
- Dimension - L Length Overall mm 110 mm
- Conductor - Copper Str Navy Size 350 (91) Navy
- Industry Standard(s) UL 486A-486B
- Plated Y
- Color Code Red
- Finish Type Tin-Plated
- Die Index 18 or 324
- Type YS, Long Barrel
- Dimension - B Length inch 1.95 in
- Dimension - Strip Length inch 2-1/16
- Conductor - Copper Str Size 350 kcmil
- Feature - Barrel Style Chamfered
- Plating Type Tin - Electro Plated
- Application Wire Splice
- UPC 12 Digit 7818105082511
- Rating - KVA 35 kV
- Wire Size 350 kcmil
- Standards - RoHS Compliance Status CM
- EU RoHS Indicator Yes
- Material Copper
- Sub Brand HYLINK
- Dimension - Length Overall inch 4.35 in
- UPC 781810508251
- Voltage Rating 35 kV
- Certification - UL Recognized No
- Certification - CSA Approved Yes
- UL Listed Yes
- Certification - ETL No
- Standards - Industry Standards Met UL 486A-486B
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents YS31 Specs
