YS32FXB Hubbell Electronic Components
Part#:YS32FXB
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

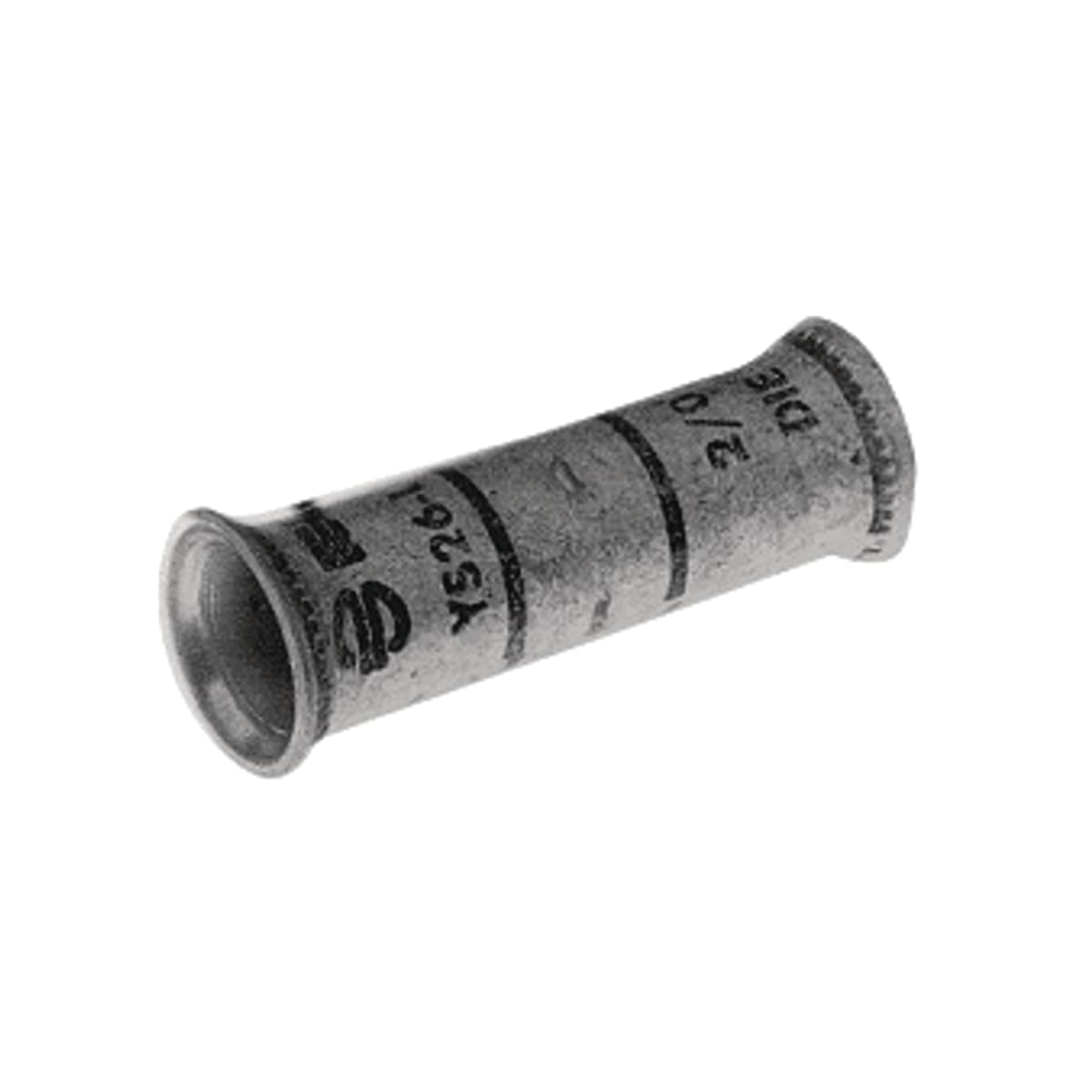

Copper Compression Splice, 313.1 kcmil, 4.82" Splice Length, Long barrel, belled end, Tin Plated.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YS32FXB Hubbell price in the box on the right side or send a quick quote.
Product Details
- Feature - Barrel Type Long
- Color Code Red
- Dimension - D inch 1.12 in
- Conductor - Copper DLO Size Range 313 kcmil
- Conductor - Copper Flex K Size Range 300 kcmil
- Conductor - Copper Flex H Size 300 kcmil
- Certification - CSA Approved Yes
- Temperature Rating 194
- Dimension - B Length inch 2.32 in
- Feature - Barrel Style Belled
- Conductor - Copper DLO Size 313.1 (775/#24) DLO
- Conductor - Copper Flex G Size Range 300 kcmil
- Conductor - Copper Flex K Size 300 kcmil
- Conductor - Copper Str Size Range 300 kcmil
- Plated Y
- UPC 781810041529
- Connector Type Splice
- Dimension - Length Overall inch 4.82 in
- Dimension - Strip Length inch 2-7/16
- Voltage - Maximum 35000
- Conductor - Copper Flex M Size 300 kcmil
- Standards - Industry Standards Met UL 486A-486B
- Plating Type Tin - Electro Plated
- Die Index 18
- UPC 12 Digit 7818100415299
- Dimension - Outside Diameter inch 0.95 in
- Voltage Rating 35 kV
- Conductor - Copper Flex G Size 300 kcmil
- Conductor - Copper Flex I Size Range 300 kcmil
- Trade Name HYLINK™
- Dimension - L Length Overall mm 122 mm
- Rating - KVA 35 kV
- Conductor - Copper Flex H Size Range 300 kcmil
- Conductor - Copper Flex I Size 300 kcmil
- Standards - RoHS Compliance Status CM
- Industry Standard(s) UL 486A-486B
- Certification - ETL No
- Minimum Pack Quantity 50
- Conductor - Copper Str Size 300 kcmil
- Certification - cULus No
- UL Listed Yes
- Certification - UL Recognized No
