YS39 Hubbell Electronic Components
Part#:YS39
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

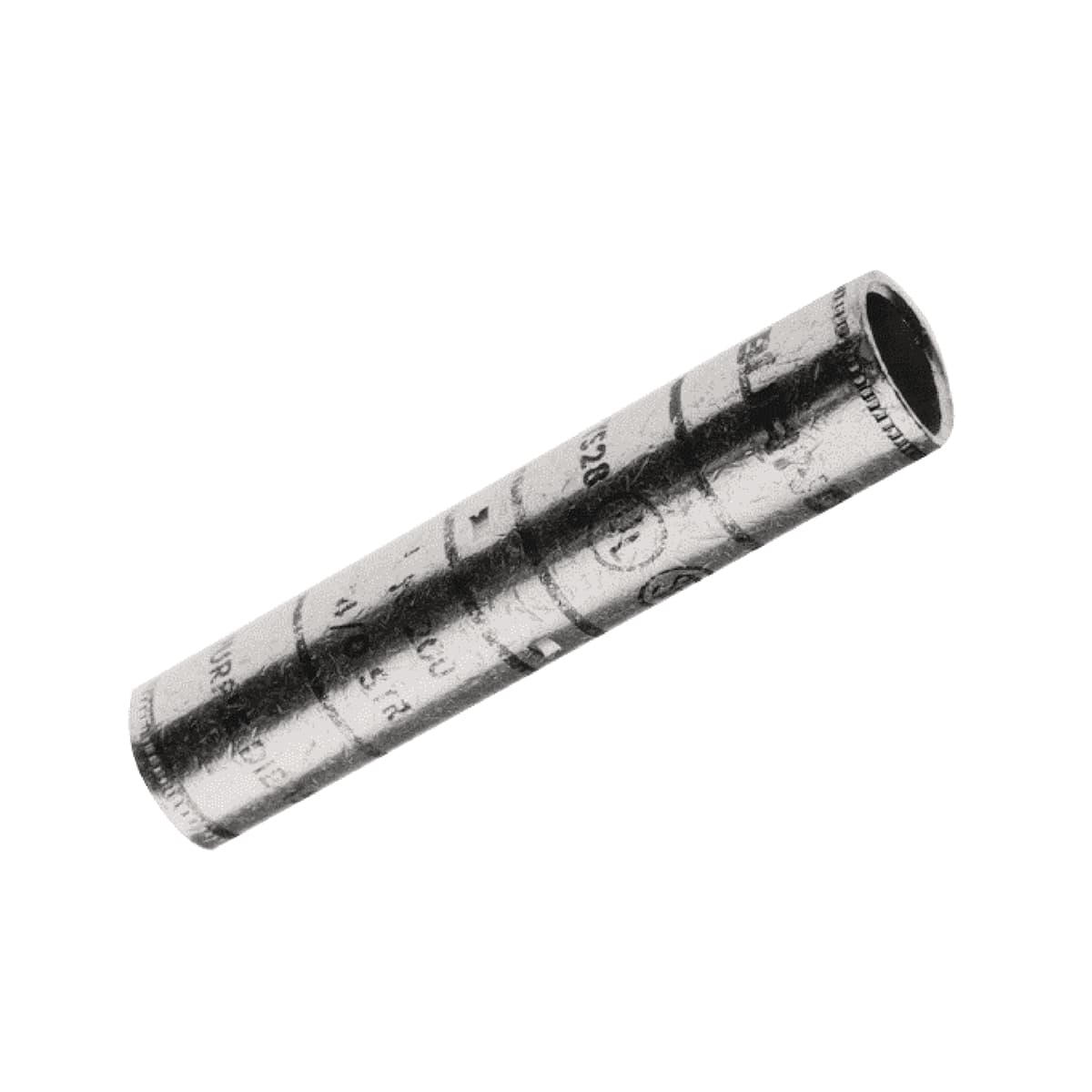

750 kcmil CU, Long Barrel, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, BLACK Color Code, 24 Die Index ; Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At High
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YS39 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Plating Type Tin - Electro Plated
- Dimension - Strip Length inch 2-7/8
- Dimension - B Length inch 2.81 in
- Conductor - Copper Str Size Range 750 kcmil
- Certification - UL Recognized No
- Plated Y
- Die Index 24
- UPC 781810526859
- Voltage - Maximum 35000
- Certification - ETL No
- Standards - RoHS Compliance Status CM
- Feature - Barrel Style Chamfered
- Rating - KVA 35 kV
- Industry Standard(s) UL 486A-486B
- Wire Size 750 kcmil
- Minimum Pack Quantity 1
- Connector Type Splice
- Type YS, Long Barrel
- UPC 12 Digit 7818105268599
- Feature - Barrel Type Long
- Conductor - Copper Str Size 750 kcmil
- EU RoHS Indicator Yes
- Sub Brand HYLINK
- Trade Name HYLINK™
- Color Code Black
- Voltage Rating 35 kV
- Certification - CSA Approved Yes
- Certification - cULus No
- UL Listed Yes
- Dimension - Length Overall inch 6.38 in
- Dimension - L Length Overall mm 162 mm
- Standards - Industry Standards Met UL 486A-486B
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents YS39 Specs
