YS38FXLTCKITC Hubbell Electronic Components
Part#:YS38FXLTCKITC
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

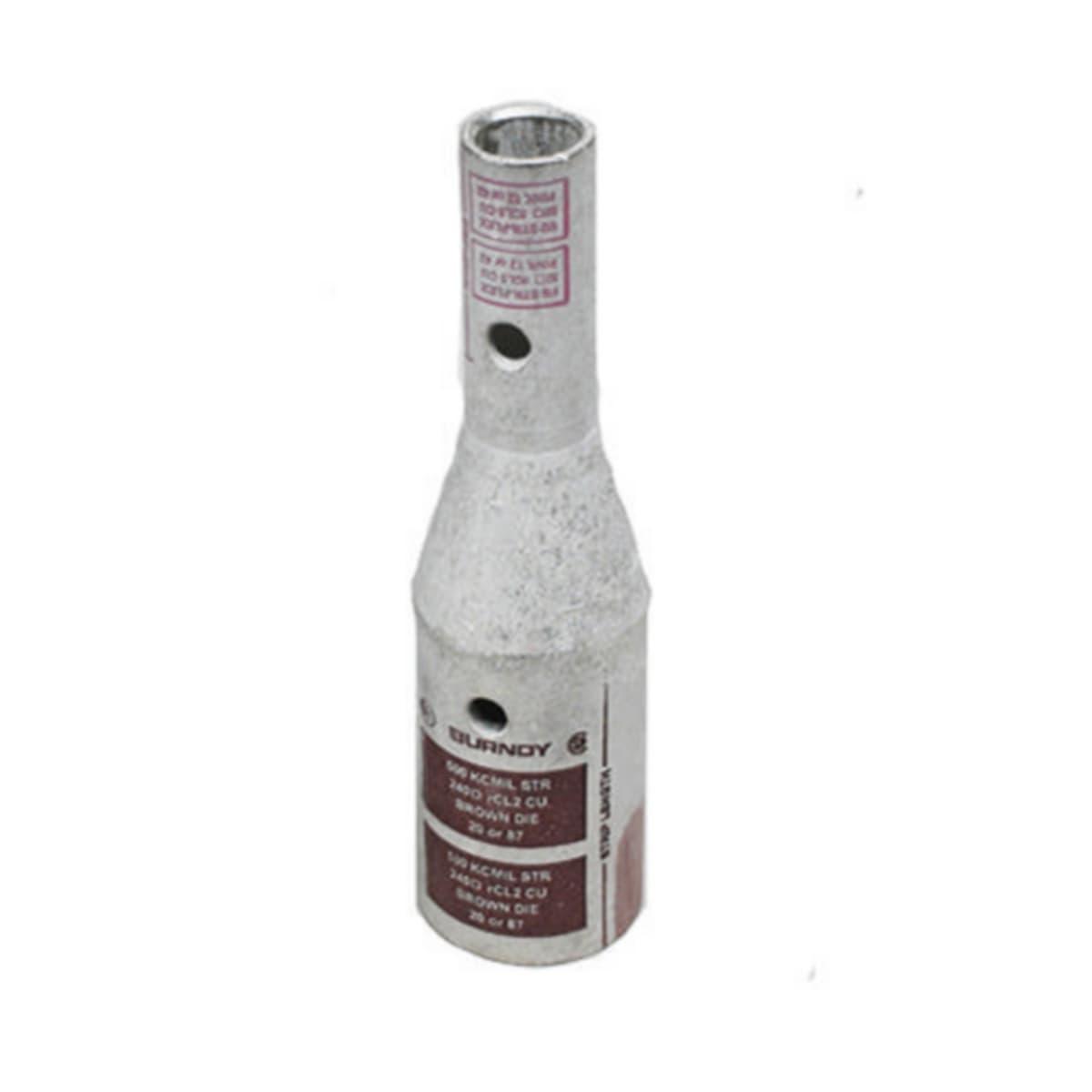

500 kcmil H,I,K / 550 kcmil G,H,I,535 DLO CU, Standard Barrel, Internal Chamfer, Tin Plated, Connector is UL/CSA, 90°C Up to 35kV, Kit comes with Clear Heat Shrink Pink Color Code, L99 Die Index.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the YS38FXLTCKITC Hubbell price in the box on the right side or send a quick quote.
Product Details
- Die Index Tap Side L99
- Die Index L99
- Trade Name HYLINK™
- Feature - Barrel Type Standard
- Color Code - Side A Pink
- Dimension - Length Overall inch 4.3 in
- Plating Type Tin - Electro Plated
- Dimension - Length BB inch 1.77 in
- Conductor - Copper Flex G Size B 500 kcmil
- Conductor - Copper Flex H Size Range 500 / 550 kcmil
- Feature - Barrel Style Skived
- Color Code Pink
- UPC 781810343999
- Voltage - Maximum 35000
- Conductor - Copper Flex G Size A 500 kcmil
- Conductor - Copper Flex I Size Range 500 / 550 kcmil
- Conductor - Copper Str Size 500 Kcmil
- Certification - CSA Approved No
- Connector Type Splice
- Plated Y
- Dimension - L Length Overall mm 109.22 mm
- Dimension - Strip Length inch 1.77
- Temperature Rating 194
- Conductor - Copper Flex G Size Range 550 kcmil
- Conductor - Copper Flex K Size Range 500 kcmil
- Standards - RoHS Compliance Status CM
- Dimension - B Length inch 1.77 in
- Conductor - Copper DLO Size Range 535 kcmil
- Rating - KVA 35 kV
- Conductor - Copper Flex I Size B 500 kcmil
- Conductor - Copper Flex H Size B 500 kcmil
- Conductor - Copper Flex M Size B 500 kcmil
- Certification - cULus No
- Voltage Rating 35 kV
- Conductor - Copper Flex K Size A 500 kcmil
- Certification - ETL No
- Certification - UL Recognized No
- Color Code - Side B Pink
- Die Index Run Side L99
- UPC 12 Digit 7818103439999
- Conductor - Copper Flex K Size B 500 kcmil
- Conductor - Copper Flex H Size A 500 kcmil
- Wire Size 500 kcmil H,I,K / 550 kcmil G,H,I,535 DLO
- Conductor - Copper Flex I Size A 500 kcmil
- UL Listed No
- Conductor - Copper Flex M Size A 500 kcmil
- Minimum Pack Quantity 1
- Conductor - Copper Str Size Range 500 / 550 kcmil
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents YS38FXLTCKITC Specs
1-year warranty
