PSP2953002 Hubbell Electronic Components
Part#:PSP2953002
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

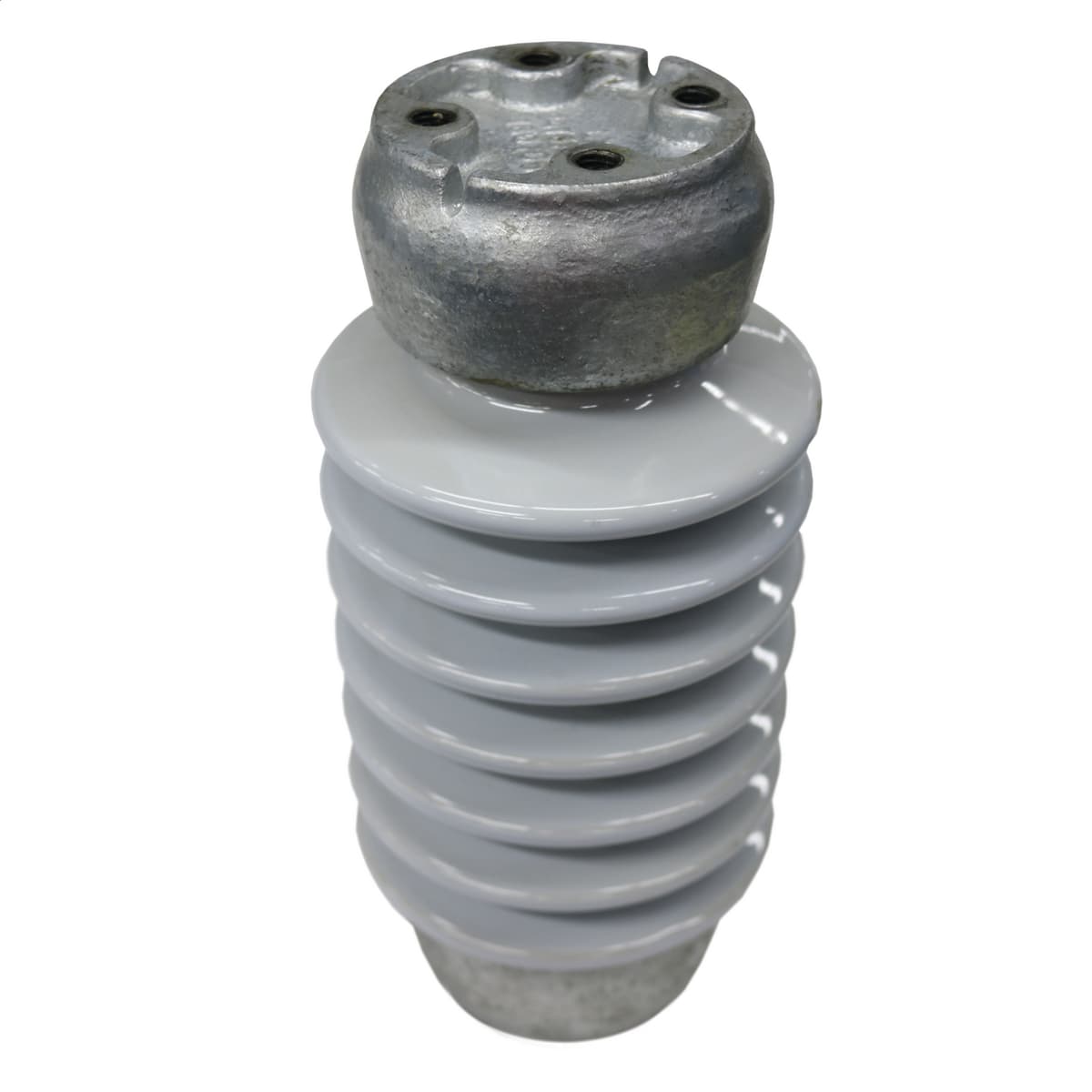

Porcelain Station Post meeting TR 295.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the PSP2953002 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Weight218.5 lb
- Cantilever Bending Strength - Routine 1866 lb
- Number of Sheds 36
- Tensile Strength High Strength
- BIL 750 kV
- Critical Impulse Flashover (CIFO) - Negative 1020 kV
- Diameter - Shed(s) 7.87" (200 mm)
- Fitting - Live Line End 5" BOLT CIRCLE
- Creep and Leakage Distance 132" (3353 mm)
- Flashover Voltage - 60 Hz Wet 380 kV
- Industry Standard(s) ANSI C29.9
- Fitting - Ground/Base 5" BOLT CIRCLE
- Voltage Application 161 kV
- UPC 096359646105
- Pallet Quantity 75
- Material - End Fitting Galvanized Steel
- Height 62 in
- Torsional Strength 40005 in-lbs. (4520 N-m)
- Flashover Voltage - 60 Hz Dry 485 kV
- Withstand Voltage - 60 Hz Wet 315 kV
- Critical Impulse Flashover (CIFO) - Positive 810 kV
- Standard Package 1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents PSP2953002 Specs
