PSP2143001 Hubbell Electronic Components
Part#:PSP2143001
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

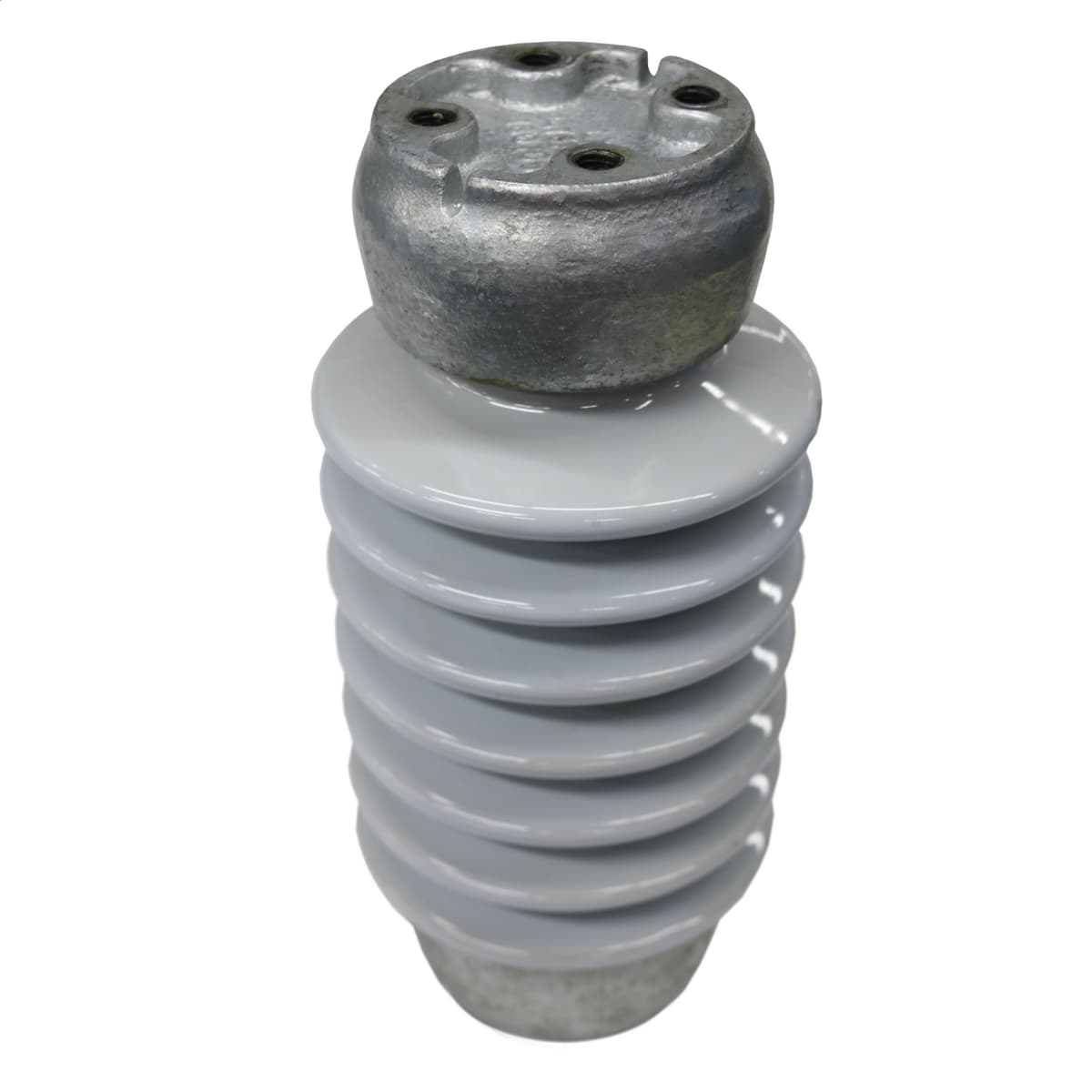

Porcelain Station Post meeting TR 214.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the PSP2143001 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Weight45.2 lb
- Height 22 in
- BIL 250 kV
- Tensile Strength Standard Strength
- Critical Impulse Flashover (CIFO) - Negative 340 kV
- Standard Package 2
- Voltage Application 46 kV
- Tension Range 13938 lb
- Material - End Fitting Galvanized Steel
- Cantilever Bending Strength - Routine 2000 lb
- Withstand Voltage - 60 Hz Wet 100 kV
- Flashover Voltage - 60 Hz Dry 170 kV
- Number of Sheds 12
- Diameter - Shed(s) 7.32" (186 mm)
- Torsional Strength 12000 in-lbs. (1356 N-m)
- Fitting - Ground/Base 3" BOLT CIRCLE
- Industry Standard(s) ANSI C29.9
- Fitting - Live Line End 3" BOLT CIRCLE
- UPC 096359646044
- Creep and Leakage Distance 43" (1092 mm)
- Flashover Voltage - 60 Hz Wet 125 kV
- Critical Impulse Flashover (CIFO) - Positive 280 kV
