PSP2163001 Hubbell Electronic Components
Part#:PSP2163001
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

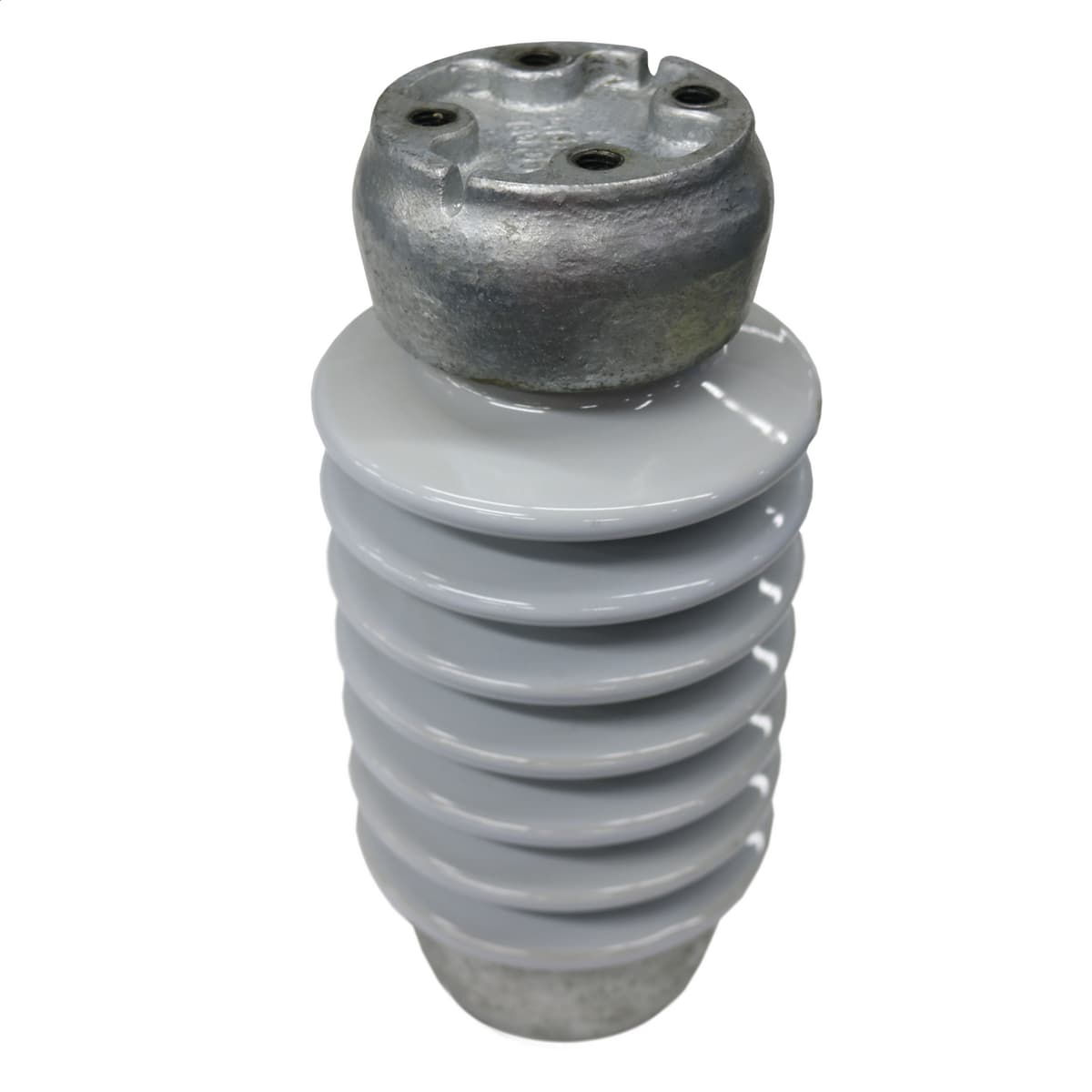

Porcelain Station Post meeting TR 216.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the PSP2163001 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Weight66.1 lb
- Cantilever Bending Strength - Routine 1500 lb
- Number of Sheds 16
- Tension Range 16000 lb
- Material - End Fitting Galvanized Steel
- BIL 350 kV
- Critical Impulse Flashover (CIFO) - Positive 390 kV
- Withstand Voltage - 60 Hz Wet 145 kV
- Fitting - Live Line End 3" BOLT CIRCLE
- UPC 096359612483
- Tensile Strength Standard Strength
- Creep and Leakage Distance 72" (1829 mm)
- Diameter - Shed(s) 7.71" (196 mm)
- Critical Impulse Flashover (CIFO) - Negative 475 kV
- Pallet Quantity 20
- Torsional Strength 15000 in-lbs. (1700 N-m)
- Fitting - Ground/Base 3" BOLT CIRCLE
- Flashover Voltage - 60 Hz Dry 235 kV
- Industry Standard(s) ANSI C29.9
- Flashover Voltage - 60 Hz Wet 180 kV
- Standard Package 1
- Height 30 in
- Voltage Application 69 kV
