PSP2053001 Hubbell Electronic Components
Part#:PSP2053001
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

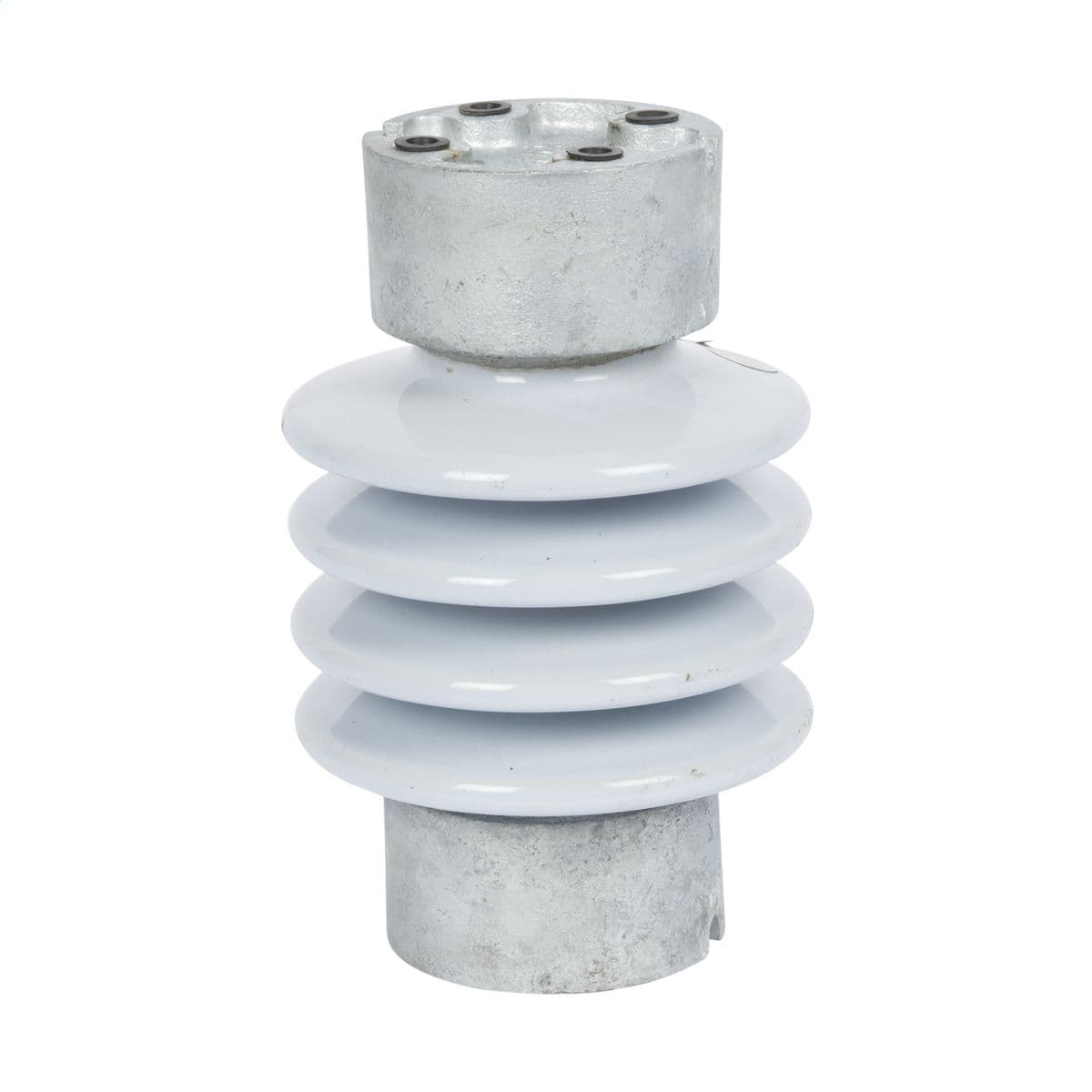

Porcelain Station Post meeting TR 205.
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the PSP2053001 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Weight15.4 lb
- Tensile Strength Standard Strength
- Critical Impulse Flashover (CIFO) - Negative 200 kV
- UPC 096359612858
- Cantilever Bending Strength - Routine 2000 lb
- Withstand Voltage - 60 Hz Wet 45 kV
- Pallet Quantity 75
- Material - End Fitting Galvanized Steel
- Torsional Strength 7000 in-lbs. (791 N-m)
- Height 10 in
- Critical Impulse Flashover (CIFO) - Positive 125 kV
- Flashover Voltage - 60 Hz Wet 55 kV
- Standard Package 3
- Fitting - Live Line End 3" BOLT CIRCLE
- Creep and Leakage Distance 15.5" (394 mm)
- BIL 110 kV
- Tension Range 8500 lb
- Voltage Application 15 kV
- Number of Sheds 4
- Fitting - Ground/Base 3" BOLT CIRCLE
- Diameter - Shed(s) 6.22" (158 mm)
- Flashover Voltage - 60 Hz Dry 85 kV
- Industry Standard(s) ANSI C29.9
