SM30SRL Banner Proximity Sensors
Part#:SM30SRL
Manufacturer:Banner
Alt. Part#:27289
Product Lifecycle:Active
Get a quick Quote!
SM30 Series: Receiver - Frequency A Stainless Stl; Range: 150 m; Input: 10-30 V dc; Output: Bi-Modal: 1 NPN; 1 PNP - LO & DO; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM30SRL Banner price in the box on the right side or send a quick quote.
Product Details
- Weight371.038256 g
- Country Of OriginMX
- Main function Sensor (Photo-electric)
- Light Color Infrared (IR)
- Material Stainless steel housing
- Product series / family name EZ-BEAM series
- Functions Photo-electric sensor receiver red LED (power ON)
- Wavelength 880 nm
- Operating mode Light-ON Dark-ON
- Response time 10ms / 0.01 s
- Primary brand Banner Engineering
- Sub-range name SM30 series
- Design through-beam system / opposed mode "A" modulation frequency washdown rated
- Shape Cylindrical threaded/barrel
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Thread size M30
- Ambient air temperature for operation -40...+70 °C
- Sensing distance 150m
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Degree of protection IP67 NEMA 6P
- Compliant with standard(s) cURus CSA CE
- Order code / Manufacturer SKU 27289
- Primary Housing Material Stainless Steel
- Output response time (ms) 10
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Outputs Bipolar (NPN & PNP)
- Quick Disconnect Type No QD
- IP Rating IP67
- DeviceNet No
- Power DC
- Min Op. Temp. (°C) -40
- Number of Pins 4
- Barrel Diameter (mm) 30
- Sensing Beam Infrared LED
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 1000
- Cable Length (m) 2
- Connection Cable
- Delay at Power-up (ms) N/A
- Indicator LEDs
- Housing Style Barrel
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Feature: Encapsulated Yes
- Max Sensing Distance (mm) 150000
- Special Feature: Water Detection No
- Adjustments N/A
- IO Link No
- Input/Output Discrete
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Audible No
- Sensing Mode (General) Opposed
- Operation Light/Dark Operate
- Opposed Mode Emitter/Receiver Receiver
- Sensing Mode (Detailed) Receiver
- Special Feature: Intrinsically Safe No
- Feature: Timing (Hold/Delay) No
- Feature: Chemical Resistant Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM30SRL Description

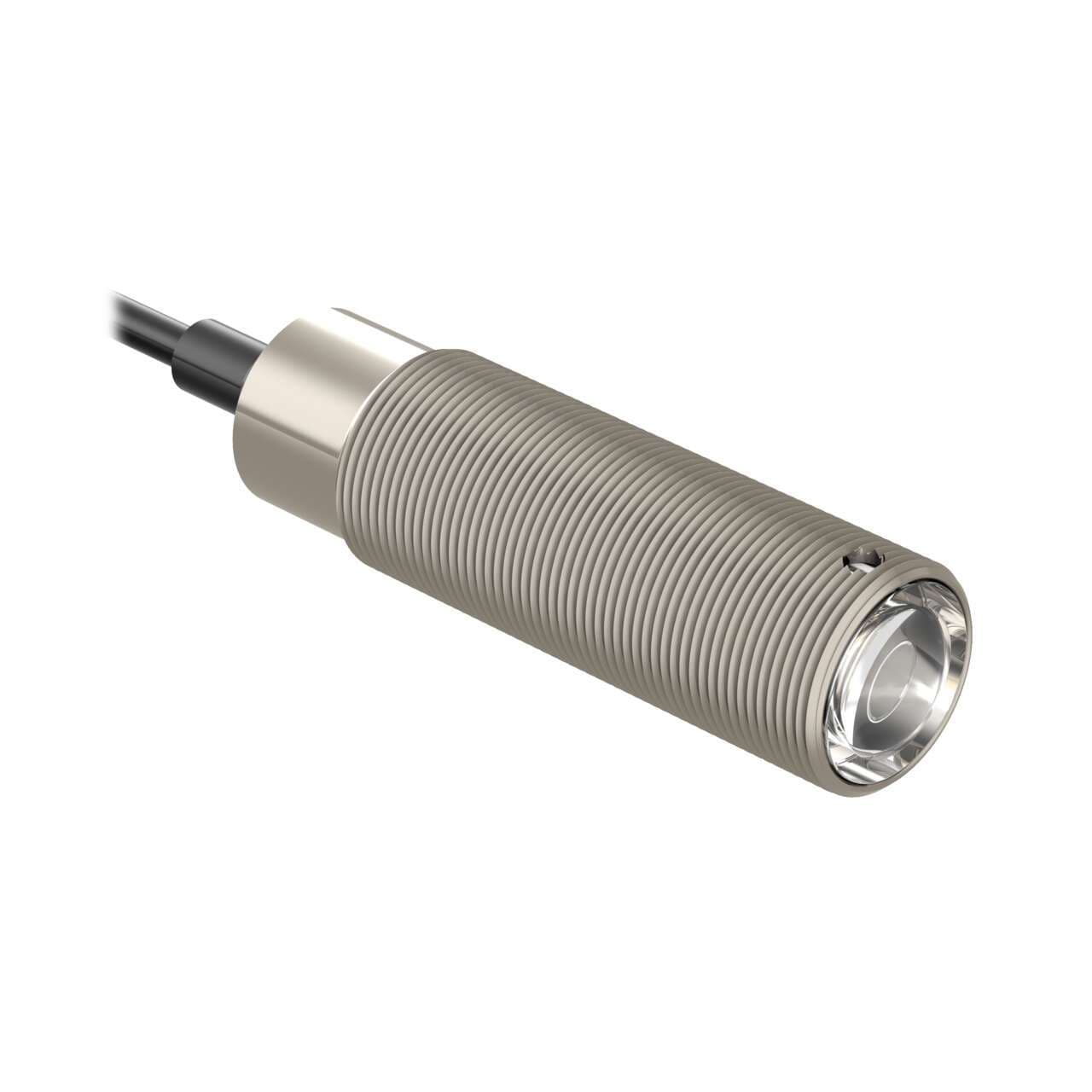

Banner Engineering SM30SRL is a photo-electric sensor designed as part of the SM30 series, featuring a through-beam system with opposed mode "A" modulation frequency and is washdown rated. This sensor, functioning as the receiver alone, is encased in a stainless steel housing, ensuring durability. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy installation. The SM30SRL operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and can function within an ambient air temperature range of -40 to +70°C. It boasts a high degree of protection with ratings of IP67, NEMA 6P, and IP69K, making it suitable for harsh environmental conditions. The sensor's shape is an M30 cylindrical threaded/barrel, facilitating straightforward mounting. It features one digital output (PNP/NPN transistor), capable of sensing distances up to 150m. The light source is infrared (IR) with a wavelength of 880 nm, and it has a quick response time of 10ms / 0.01 s. The operating modes include Light-ON and Dark-ON, with a thread size of M30, making it versatile for various applications.
Related documents SM30SRL Specs
