SMA30SEL W/30 Banner Proximity Sensors
Part#:SMA30SEL W/30
Manufacturer:Banner
Alt. Part#:27412
Product Lifecycle:Active
Get a quick Quote!
SM30 Series: Emitter - Frequency A Stainless Stl; Range: 150 m; Input: 10-30 V dc /12-240 V ac; Output: Not Applicable; 9 m (30 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SMA30SEL W/30 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight850.031408 g
- Country Of OriginMX
- Max Sensing Distance (mm) 150000
- Special Feature: Remote Teach No
- Indicator LEDs
- Lens Material Acrylic
- Feature: Audible No
- Cable Length (m) 9
- Power Supply/Supply Voltage 10-30 V dc or 12-240 V ac
- Repeatability (µs) N/A
- Feature: Timing (Hold/Delay) No
- Connection Cable
- Sensing Beam Infrared LED
- Number of Pins 2
- Feature: Chemical Resistant Yes
- Primary Housing Material Stainless Steel
- Output response time (ms) N/A
- Delay at Power-up (ms) N/A
- Opposed Mode Emitter/Receiver Emitter
- Power AC/DC Universal
- Min Op. Temp. (°C) -40
- NEMA Rating NEMA 6P
- Feature: Hazardous Area No
- Sensing Mode (General) Opposed
- Operation N/A
- Max Op. Relative Humidity [%] 90% @ 50°C
- Barrel Diameter (mm) 30
- Sensing Mode (Detailed) Emitter
- IP Rating IP67
- Feature: Encapsulated No
- Housing Style Barrel
- Quick Disconnect Type No QD
- Special Feature: Water Detection No
- DeviceNet No
- Outputs N/A
- Special Feature: Intrinsically Safe No
- Max Op. Temp. (°C) 70
- Adjustments N/A
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SMA30SEL W/30 Description

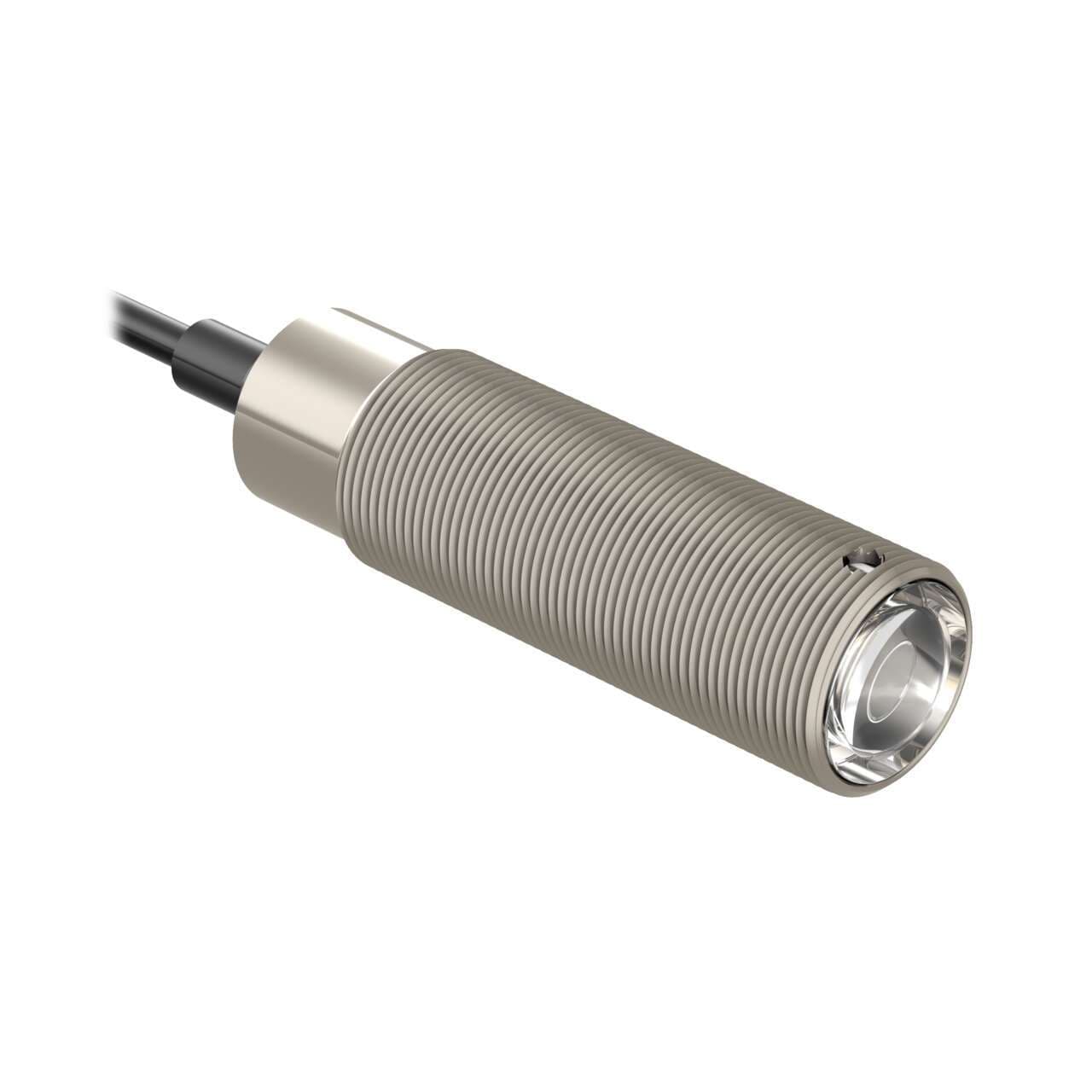

Banner Engineering SMA30SEL W/30 is a photo-electric sensor from the SM30 series, designed as a through-beam system with opposed mode "A" modulation frequency. This sensor functions as an emitter alone, encased in a stainless steel housing for durability. It is pre-wired with a 30ft / 9m cable that terminates with bare end flying leads, facilitating easy installation. The SMA30SEL W/30 operates on a supply voltage range of 12Vac-240Vac (with 200Vac / 220Vac nominal) and 10Vdc-30Vdc (with 12Vdc / 24Vdc nominal), making it versatile for various power supply configurations. It can operate in ambient air temperatures ranging from -40 to +70 degrees Celsius and is rated with a degree of protection of IP67 NEMA 6P, indicating a high level of protection against dust and water ingress. The sensor features an M30 cylindrical threaded/barrel shape for straightforward mounting, a sensing distance of up to 150m, and utilizes infrared (IR) light with a wavelength of 880 nm. Its response time is quick at 10ms / 0.01 s, ensuring timely detection for automation applications.
Related documents SMA30SEL W/30 Specs
