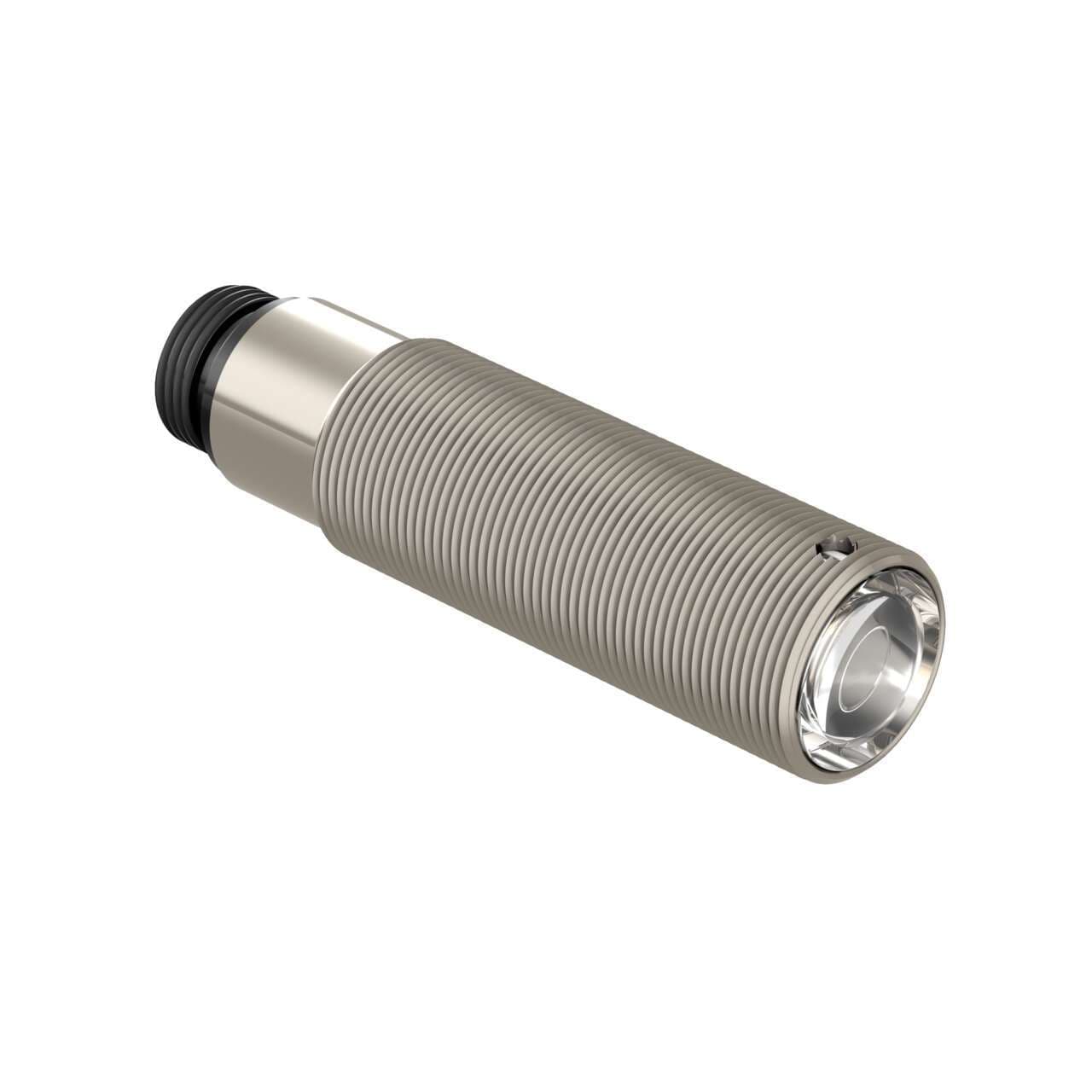

SMA30SELQDB Banner Proximity Sensors
Part#:SMA30SELQDB
Manufacturer:Banner
Alt. Part#:27373
Product Lifecycle:Active
Get a quick Quote!
SM30 Series: Emitter - Frequency B Stainless Stl; Range: 150 m; Input: 10-30 V dc /12-240 V ac; Output: Not Applicable; 3-pin Mini Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SMA30SELQDB Banner price in the box on the right side or send a quick quote.
Product Details
- Weight302.545864 g
- Country Of OriginMX
- Primary brand Banner Engineering
- Design through-beam system / opposed mode "B" modulation frequency washdown rated
- Connection type Pre-equipped with 3-pin 7/8" Mini connector
- Sub-range name SM30 series
- Light Color Infrared (IR)
- Material Stainless steel housing
- Product series / family name EZ-BEAM series
- Functions Photo-electric emitter red LED (power ON)
- Thread size M30
- Response time 10ms / 0.01 s
- Order code / Manufacturer SKU 27373
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Cylindrical threaded/barrel
- Ambient air temperature for operation -40...+70 °C
- Supply voltage (AC) 12Vac-240Vac (200Vac / 220Vac nom.)
- Wavelength 880 nm
- Degree of protection IP67 NEMA 6P
- Compliant with standard(s) cURus CSA CE
- Opposed Mode Emitter/Receiver Emitter
- Max Sensing Distance (mm) 150000
- Operation N/A
- Repeatability (µs) N/A
- Feature: Timing (Hold/Delay) No
- Power AC/DC Universal
- Output response time (ms) N/A
- Lens Material Acrylic
- Feature: Chemical Resistant Yes
- Sensing Mode (General) Opposed
- Connection Integral QD
- Number of Pins 3
- Feature: Encapsulated Yes
- Housing Style Barrel
- Min Op. Temp. (°C) -40
- Delay at Power-up (ms) N/A
- Indicator LEDs
- Power Supply/Supply Voltage 10-30 V dc or 12-240 V ac
- Special Feature: Remote Teach No
- NEMA Rating NEMA 6P
- DeviceNet No
- Primary Housing Material Stainless Steel
- Outputs N/A
- Special Feature: Intrinsically Safe No
- Barrel Diameter (mm) 30
- Sensing Beam Infrared LED
- Quick Disconnect Type 7/8 in. (Mini)
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- Sensing Mode (Detailed) Emitter
- Max Op. Temp. (°C) 70
- IP Rating IP67
- Feature: Hazardous Area No
- Special Feature: Water Detection No
- Adjustments N/A
- IO Link No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SMA30SELQDB Description
Banner Engineering SMA30SELQDB is a photo-electric sensor designed for through-beam system applications, part of the SM30 series. This sensor operates as an emitter alone with a "B" modulation frequency and is rated for washdown environments. It features a durable stainless steel housing and is equipped with a 3-pin 7/8" mini connector for connectivity. The SMA30SELQDB supports a wide supply voltage range, accepting 12Vac-240Vac (with 200Vac / 220Vac nominal) and 10Vdc-30Vdc (with 12Vdc / 24Vdc nominal). It is designed to operate within an ambient air temperature range of -40 to +70 degrees Celsius. This sensor offers a high degree of protection with ratings of IP67, NEMA 6P, and IP69K, making it suitable for challenging environments. Its M30 cylindrical threaded/barrel shape allows for straightforward installation. The SMA30SELQDB has a sensing distance of up to 150 meters and utilizes infrared (IR) light with a wavelength of 880 nm. It boasts a quick response time of 10ms / 0.01 s.
