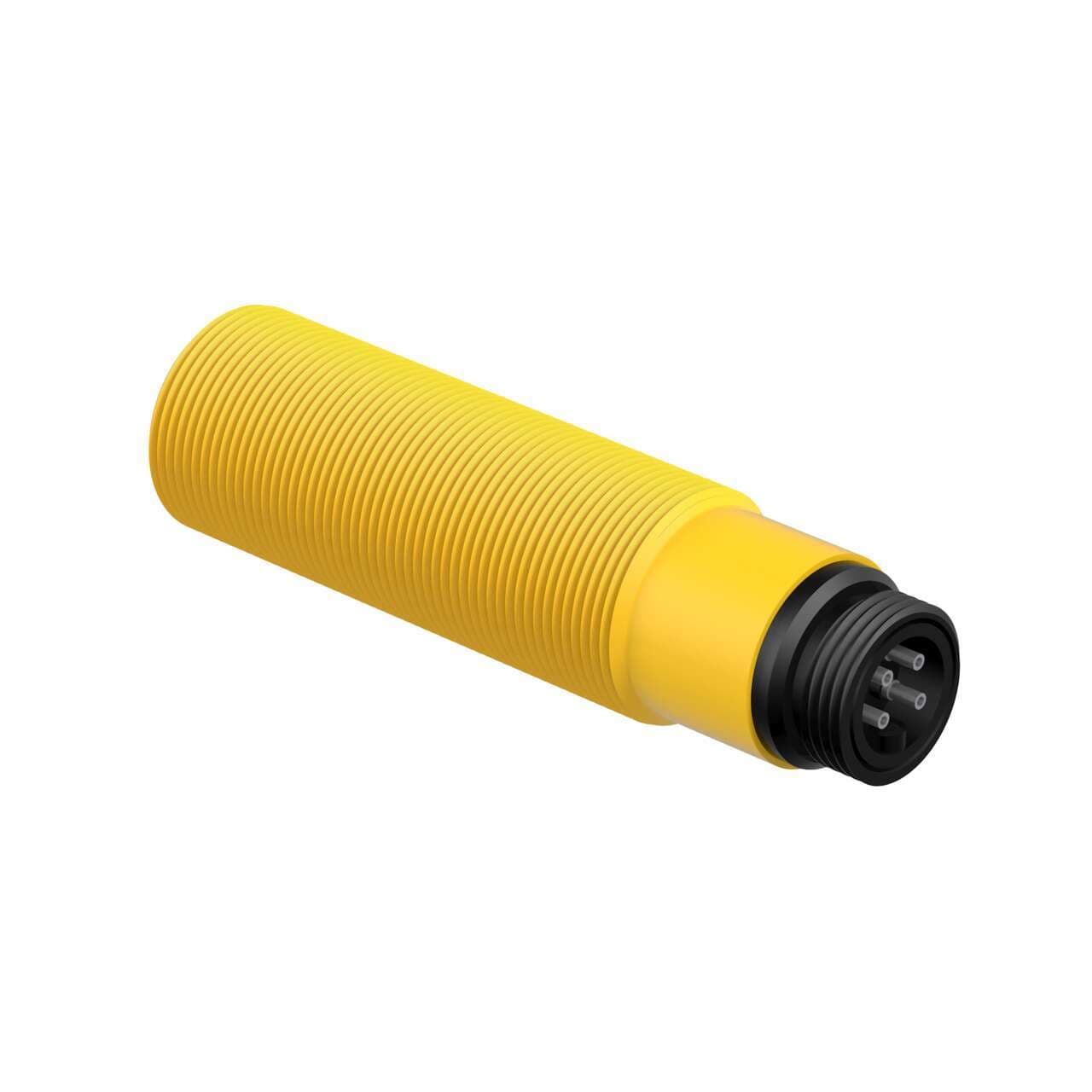

SMA30PELQD Banner Proximity Sensors
Part#:SMA30PELQD
Manufacturer:Banner
Alt. Part#:27288
Product Lifecycle:Active
Get a quick Quote!
SM30 Series: Emitter - Frequency A PBT Polyester; Range: 150 m; Input: 10-30 V dc /12-240 V ac; Output: Not Applicable; 3-pin Mini Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SMA30PELQD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight164.200304 g
- Country Of OriginMX
- Functions Photo-electric emitter red LED (power ON)
- Connection type Pre-equipped with 3-pin 7/8" Mini connector
- Compliant with standard(s) cURus CSA CE
- Product series / family name EZ-BEAM series
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Cylindrical threaded/barrel
- Material thermoplastic housing
- Primary brand Banner Engineering
- Supply voltage (AC) 12Vac-240Vac (200Vac / 220Vac nom.)
- Design through-beam system / opposed mode "A" modulation frequency washdown rated
- Wavelength 880 nm
- Response time 10ms / 0.01 s
- Light Color Infrared (IR)
- Ambient air temperature for operation -40...+70 °C
- Order code / Manufacturer SKU 27288
- Main function Sensor (Photo-electric)
- Sub-range name SM30 series
- Thread size M30
- Degree of protection IP67 NEMA 6P
- Housing Style Barrel
- Connection Integral QD
- Special Feature: Water Detection No
- Indicator LEDs
- Feature: Chemical Resistant No
- Max Sensing Distance (mm) 150000
- Min Op. Temp. (°C) -40
- Lens Material Acrylic
- Feature: Timing (Hold/Delay) No
- Outputs N/A
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- DeviceNet No
- Number of Pins 3
- Primary Housing Material Thermoplastic
- Max Op. Relative Humidity [%] 90% @ 50°C
- IO Link No
- Power Supply/Supply Voltage 10-30 V dc or 12-240 V ac
- Max Op. Temp. (°C) 70
- Adjustments N/A
- Sensing Mode (General) Opposed
- Operation N/A
- Delay at Power-up (ms) N/A
- Feature: Audible No
- Sensing Beam Infrared LED
- Quick Disconnect Type 7/8 in. (Mini)
- Repeatability (µs) N/A
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Emitter
- Special Feature: Remote Teach No
- NEMA Rating NEMA 6P
- Feature: Encapsulated Yes
- Power AC/DC Universal
- Output response time (ms) N/A
- Barrel Diameter (mm) 30
- Opposed Mode Emitter/Receiver Emitter
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SMA30PELQD Description
Banner Engineering SMA30PELQD is a photo-electric sensor from the SM30 series designed with a through-beam system and opposed mode "A" modulation frequency, suitable for washdown applications. This sensor, functioning as an emitter alone, is housed in a thermoplastic material and comes pre-equipped with a 3-pin 7/8" mini connector. It supports a supply voltage range of 12Vac-240Vac (with 200Vac / 220Vac nominal) and 10Vdc-30Vdc (with 12Vdc / 24Vdc nominal). The SMA30PELQD operates within an ambient air temperature range of -40 to +70 °C and boasts a degree of protection rated at IP67, NEMA 6P, and IP69K. Its M30 cylindrical threaded/barrel shape facilitates easy installation, and it offers a sensing distance of up to 150m. The sensor emits infrared (IR) light with a wavelength of 880 nm and responds within 10ms / 0.01 s.
