SLC4R24-320P4 Banner Electronic Components

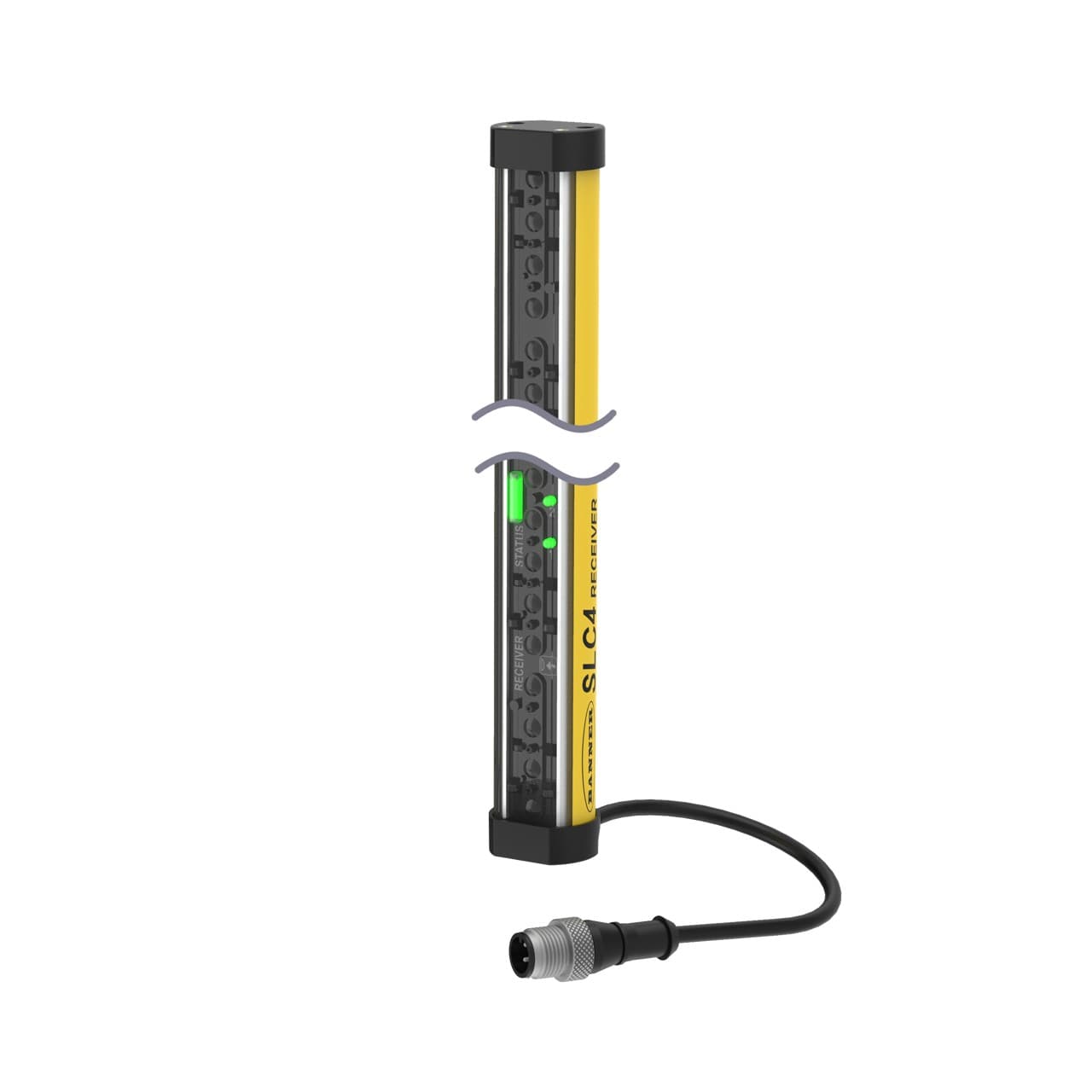

Banner SLC4R24-320P4 Banner Engineering SLC4R24-320P4 is a safety light curtain designed for hand detection with a protective height of 320mm and a resolution of 24mm. It features a polycarbonate housing and end cap in yellow, ensuring visibility. This model is pre-wired with a 300mm pigtail that terminates with a 4-pin Euro-style M12 connector for easy installation. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLC4R24-320P4 offers a degree of protection rated at IP65, making it suitable for various industrial environments. It has a net width of 27mm, a net height of 333mm, and a net depth of 23mm, with a 24mm beam spacing/pitch. The sensing distance ranges from 10cm to 2m. Additionally, it is equipped with 2 x digital outputs (24Vdc; 300mA; sourcing; redundant OSSD solid-state outputs) for enhanced safety measures.
Banner

Part#:SLC4R24-320P4

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering SLC4R24-320P4 is a safety light curtain designed for hand detection with a protective height of 320mm and a resolution of 24mm. It features a polycarbonate housing and end cap in yellow, ensuring visibility. This model is pre-wired with a 300mm pigtail that terminates with a 4-pin Euro-style M12 connector for easy installation. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLC4R24-320P4 offers a degree of protection rated at IP65, making it suitable for various industrial environments. It has a net width of 27mm, a net height of 333mm, and a net depth of 23mm, with a 24mm beam spacing/pitch. The sensing distance ranges from 10cm to 2m. Additionally, it is equipped with 2 x digital outputs (24Vdc; 300mA; sourcing; redundant OSSD solid-state outputs) for enhanced safety measures.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLC4R24-320P4 Banner price in the box on the right side or send a quick quote.

Product Details

  • Safety Level
    Type 4
  • Fixed Blanking
    No
  • SIL Rating
    SIL3; CL3
  • Overall Length (mm)
    333
  • Operating Temperature
    -20 to +55 deg. C; RH 95%
  • Short Protection
    Yes
  • Feature: Integral Muting
    No
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Housing Finish
    Clear Polycarbonate/Yellow Polyester
  • PL Rating
    Ple
  • Vibration
    10-55 Hz at 0.35 mm
  • Primary Housing Material
    Polycarbonate
  • Operating Voltage
    24 V dc +/- 15%
  • Scan Code
    None
  • IP Rating
    IP65
  • Resolution (mm)
    24
  • Trip/Latch Output
    Trip
  • Connector Type
    M12 Pigtail (Black)
  • Operating Distance (m)
    0.1 - 2
  • Reduced Resolution
    No
  • Dimensions WxD (mm)
    26.7 x 22.1
  • Recovery Time
    34 / 203
  • Supply Current
    65
  • External Monitoring Device
    No
  • Shock
    10g at 16ms (6000 cycles)
  • Housing Material
    Aluminum, Polycarbonate
  • Feature: ESD Safe
    No
  • Defined Area Height (mm)
    320
  • Number of Pins (Receiver/Emitter)
    4
  • Electrical Safety Class
    III
  • System Type
    Receiver
  • Auxiliary Output
    No
  • Fault Output
    No
  • Feature: End-to-End Sensing
    Yes
  • OSSD Rating
    24 V dc; 0.3 A max.
  • Test Input
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents SLC4R24-320P4 Specs

SLC4R24-320P4 SLC4 320mm-1630956086583.stp
SLC4R24-320P4 SLC4 Safety Light Curtain -- Multilingual Datasheet-1630956086355.pdf
SLC4R24-320P4 SLC4 320mm-1630956086301.pdf
