SLC4R24-160P4 Banner Electronic Components

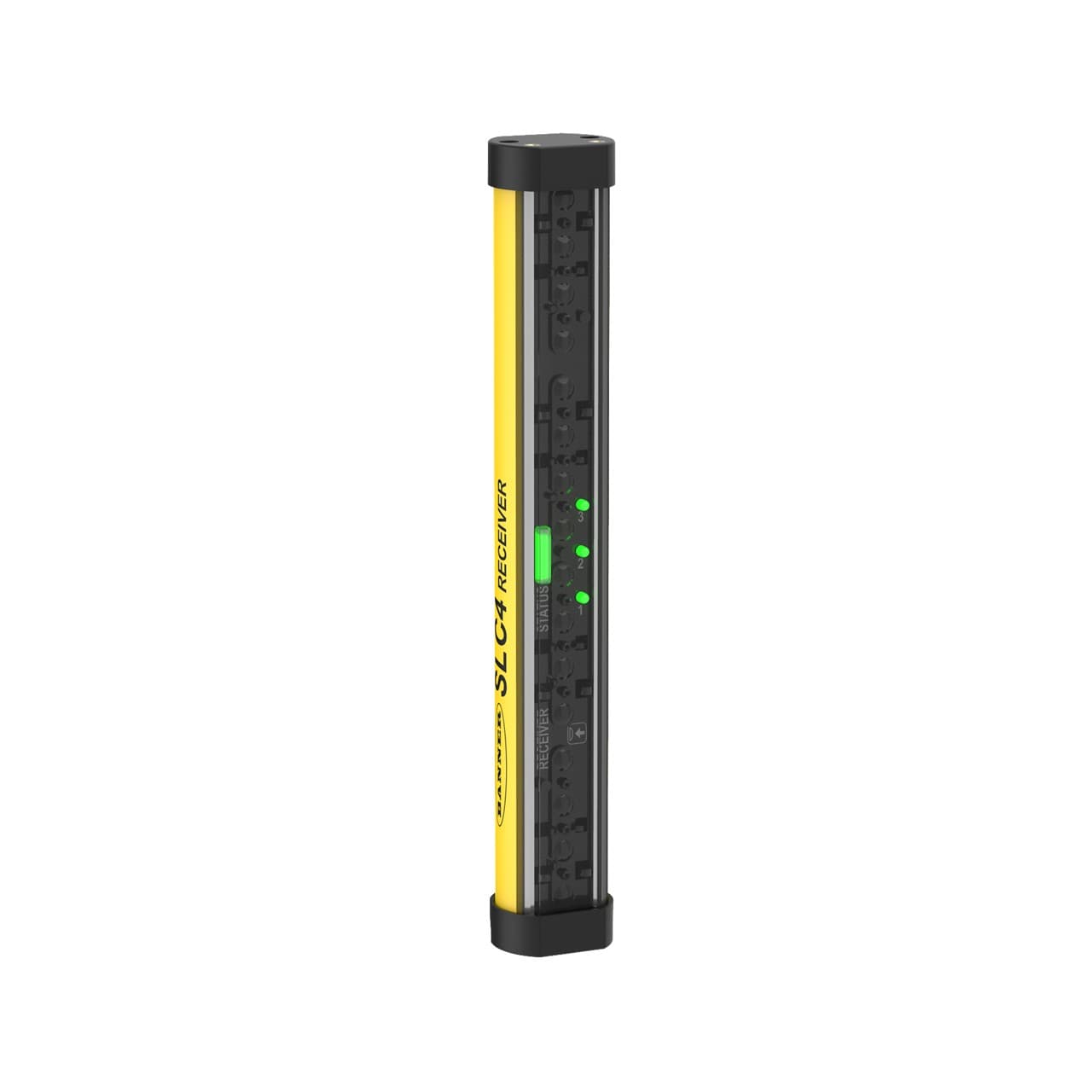

Banner SLC4R24-160P4 Banner Engineering SLC4R24-160P4 is a safety light curtain designed specifically for hand detection with a resolution of 24mm and a protective height of 160mm. This receiver unit is encased in a polycarbonate housing and end cap, ensuring durability. It features a pre-wired 300mm pigtail that terminates with a 4-pin Euro-style M12 connector for easy installation. The unit operates on a 24Vdc supply voltage and is designed to function within an ambient air temperature range of -20 to +55°C. With an IP65 degree of protection, it is well-suited for various industrial environments. The SLC4R24-160P4 offers a sensing distance ranging from 10cm to 2m and includes 2 digital outputs (24Vdc; 300mA; sourcing; redundant OSSD solid-state outputs) for enhanced functionality. The dimensions of this safety light curtain are 27mm in width, 174mm in height, and 23mm in depth, with a beam spacing/pitch of 24mm. The housing is colored yellow for visibility.
Banner

Part#:SLC4R24-160P4

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

Banner Engineering SLC4R24-160P4 is a safety light curtain designed specifically for hand detection with a resolution of 24mm and a protective height of 160mm. This receiver unit is encased in a polycarbonate housing and end cap, ensuring durability. It features a pre-wired 300mm pigtail that terminates with a 4-pin Euro-style M12 connector for easy installation. The unit operates on a 24Vdc supply voltage and is designed to function within an ambient air temperature range of -20 to +55°C. With an IP65 degree of protection, it is well-suited for various industrial environments. The SLC4R24-160P4 offers a sensing distance ranging from 10cm to 2m and includes 2 digital outputs (24Vdc; 300mA; sourcing; redundant OSSD solid-state outputs) for enhanced functionality. The dimensions of this safety light curtain are 27mm in width, 174mm in height, and 23mm in depth, with a beam spacing/pitch of 24mm. The housing is colored yellow for visibility.

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the SLC4R24-160P4 Banner price in the box on the right side or send a quick quote.

Product Details

  • Dimensions WxD (mm)
    26.7 x 22.1
  • Operating Voltage
    24 V dc +/- 15%
  • SIL Rating
    SIL3; CL3
  • Feature: Integral Muting
    No
  • Overall Length (mm)
    173.2
  • PL Rating
    Ple
  • Short Protection
    Yes
  • Feature: ESD Safe
    No
  • Safety Level
    Type 4
  • Resolution (mm)
    24
  • System Type
    Receiver
  • Housing Material
    Aluminum, Polycarbonate
  • External Monitoring Device
    No
  • Operating Distance (m)
    0.1 - 2
  • Scan Code
    None
  • Fault Output
    No
  • Defined Area Height (mm)
    160
  • IP Rating
    IP65
  • Auxiliary Output
    No
  • Test Input
    No
  • Connector Type
    M12 Pigtail (Black)
  • Operating Temperature
    -20 to +55 deg. C; RH 95%
  • Shock
    10g at 16ms (6000 cycles)
  • Trip/Latch Output
    Trip
  • Fixed Blanking
    No
  • Number of Pins (Receiver/Emitter)
    4
  • Electrical Safety Class
    III
  • Supply Current
    65
  • Effective Aperture Angle
    Type 4 Per IEC 61496-2
  • Recovery Time
    26 / 156
  • Vibration
    10-55 Hz at 0.35 mm
  • Primary Housing Material
    Polycarbonate
  • Housing Finish
    Clear Polycarbonate/Yellow Polyester
  • Reduced Resolution
    No
  • OSSD Rating
    24 V dc; 0.3 A max.
  • Feature: End-to-End Sensing
    Yes

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents SLC4R24-160P4 Specs

SLC4R24-160P4 SLC4 160mm-1630956092249.pdf
SLC4R24-160P4 SLC4 160mm-1630956092254.stp
SLC4R24-160P4 SLC4 Safety Light Curtain -- Multilingual Datasheet-1630956092251.pdf
