SLC4P14-160P44 Banner Electronic Components
Part#:SLC4P14-160P44
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

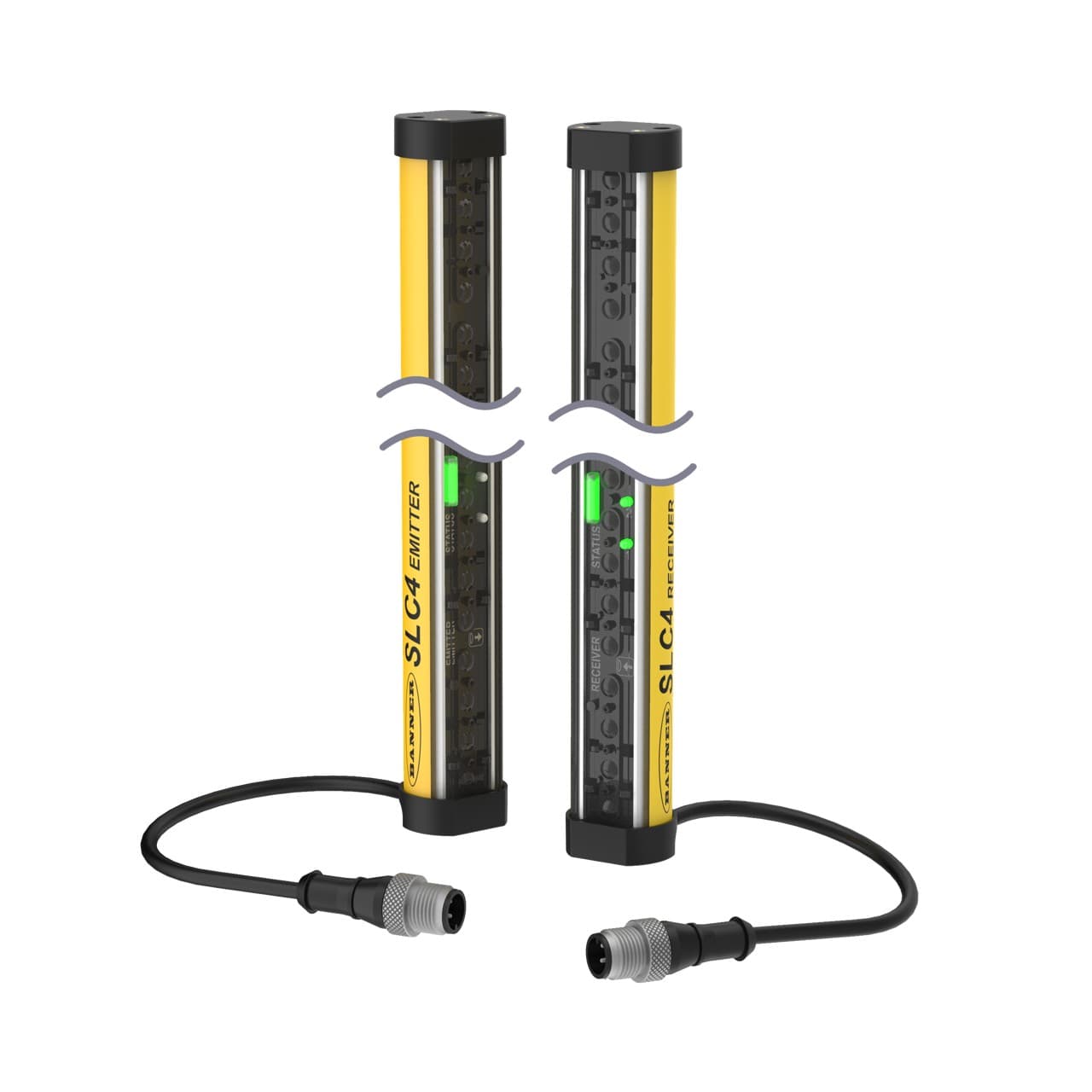

Banner Engineering SLC4P14-160P44 is a safety light curtain designed for finger detection with a resolution of 14mm, featuring both emitter and receiver pairs. It is constructed with a polycarbonate (PC) housing and end caps, and it comes pre-wired with a 300mm pigtail that terminates with a 4-pin Euro-style M12 connector. This part offers a protective height of 160mm and is housed in yellow. It operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. The SLC4P14-160P44 is IP65 rated, indicating protection against dust ingress and low-pressure water jets from any direction. It has a net width of 27mm, a net height of 174mm, and a net depth of 23mm. The light curtain features a 14mm beam spacing/pitch and provides a sensing distance ranging from 10cm to 2m. It emits infrared (IR) light with a wavelength of 860 nm and includes 2 x digital outputs (24Vdc; 300mA; sourcing; redundant OSSD solid-state outputs) for connectivity.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLC4P14-160P44 Banner price in the box on the right side or send a quick quote.
Product Details
- Defined Area Height (mm) 160
- Operating Distance (m) 0.1 - 2
- Operating Temperature -20 to +55 deg. C; RH 95%
- Connector Type M12 Pigtail (Black)
- Scan Code None
- Feature: Integral Muting No
- PL Rating Ple
- Reduced Resolution No
- External Monitoring Device No
- Operating Voltage 24 V dc +/- 15%
- System Type Emitter/Receiver Pair
- Trip/Latch Output Trip
- Overall Length (mm) 173.2
- Recovery Time 34 / 203
- Electrical Safety Class III
- Resolution (mm) 14
- OSSD Rating 24 V dc; 0.3 A max.
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Shock 10g at 16ms (6000 cycles)
- SIL Rating SIL3; CL3
- Auxiliary Output No
- Housing Finish Clear Polycarbonate/Yellow Polyester
- Dimensions WxD (mm) 26.7 x 22.1
- Fault Output No
- Primary Housing Material Polycarbonate
- IP Rating IP65
- Short Protection Yes
- Feature: ESD Safe No
- Safety Level Type 4
- Number of Pins (Receiver/Emitter) 4,4
- Supply Current 100
- Fixed Blanking No
- Housing Material Aluminum, Polycarbonate
- Vibration 10-55 Hz at 0.35 mm
- Feature: End-to-End Sensing Yes
- Test Input No
