SLC4R14-320P4 Banner Electronic Components
Part#:SLC4R14-320P4
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

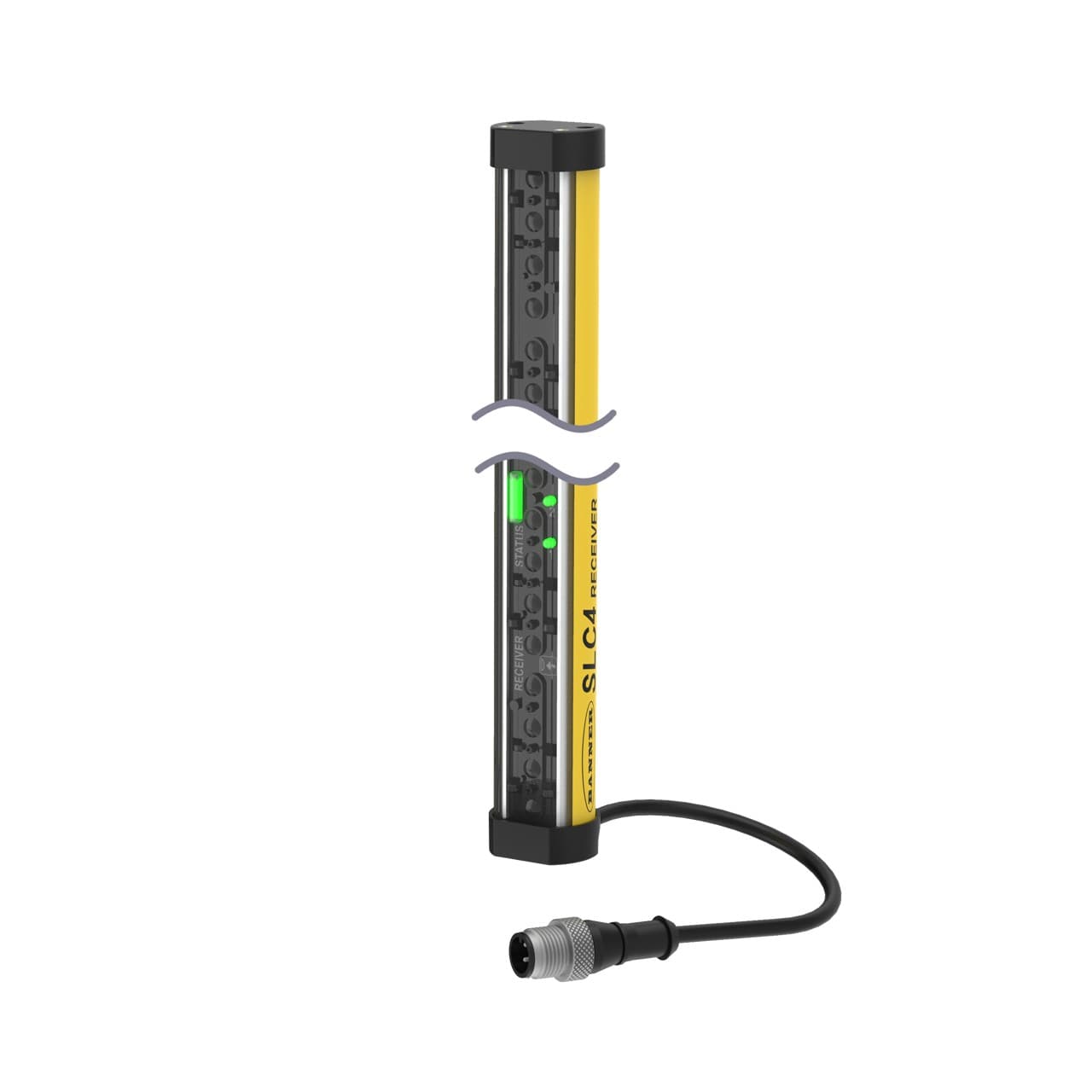

Banner Engineering SLC4R14-320P4 is a safety light curtain designed specifically as a receiver unit. It features a polycarbonate (PC) housing and end cap, ensuring durability in various industrial environments. This unit is pre-wired with a 300mm pigtail that terminates with a 4-pin Euro-style M12 connector for straightforward installation. It offers a protective height of 320mm and comes in a yellow housing, making it easily identifiable. The SLC4R14-320P4 operates on a 24Vdc supply voltage and can function within an ambient air temperature range of -20 to +55°C. It is rated with an IP65 degree of protection, indicating a high level of resistance to dust and water ingress. The dimensions of this safety light curtain are 27mm in width, 333mm in height, and 23mm in depth, with a 14mm beam spacing/pitch that allows for finger detection resolution. It also features 2 x digital outputs (24Vdc; 300mA; sourcing; redundant OSSD solid-state outputs) and is capable of sensing distances ranging from 10cm to 2m.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLC4R14-320P4 Banner price in the box on the right side or send a quick quote.
Product Details
- Safety Level Type 4
- Recovery Time 49 / 295
- Scan Code None
- Shock 10g at 16ms (6000 cycles)
- Defined Area Height (mm) 320
- Operating Voltage 24 V dc +/- 15%
- Vibration 10-55 Hz at 0.35 mm
- Dimensions WxD (mm) 26.7 x 22.1
- Operating Distance (m) 0.1 - 2
- Fixed Blanking No
- Short Protection Yes
- Feature: End-to-End Sensing Yes
- PL Rating Ple
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Number of Pins (Receiver/Emitter) 4
- Fault Output No
- Trip/Latch Output Trip
- Housing Finish Clear Polycarbonate/Yellow Polyester
- Reduced Resolution No
- Auxiliary Output No
- Test Input No
- Feature: Integral Muting No
- External Monitoring Device No
- Resolution (mm) 14
- Overall Length (mm) 333
- Operating Temperature -20 to +55 deg. C; RH 95%
- Supply Current 65
- Connector Type M12 Pigtail (Black)
- SIL Rating SIL3; CL3
- System Type Receiver
- IP Rating IP65
- Electrical Safety Class III
- Feature: ESD Safe No
- Primary Housing Material Polycarbonate
- OSSD Rating 24 V dc; 0.3 A max.
- Housing Material Aluminum, Polycarbonate
