S15LRGPQ Banner Signal Beacons
Part#:S15LRGPQ
Manufacturer:Banner
Alt. Part#:811971
Product Lifecycle:Active
Get a quick Quote!
S15L Series: 2-Color In-Line Sensor Status Indicator; Voltage: 10-30 V dc; Housing: Polyurethane; IP67; Input: PNP; Colors: Red Green; Male-Female 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S15LRGPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight34.926584 g
- Country Of OriginTW
- Mounting Thread No Thread
- Color 2 - Wavelength/Color Temp/Coordinates 525 nm
- Feature: Cascade Yes
- Power Source DC
- Animation Option 2 Solid On
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Indication Yes
- Color Technology Standard LED
- Input Type PNP
- Multi-Color Device Single Color On
- Wireless No
- Product Size (mm) 15
- Number of Input Pins/Conductors 4
- Modbus RTU No
- Number of Colors / Segments 2
- Color Option 2 Green
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- IO Link No
- Primary Housing Material PUR
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Environmental Rating IP66; IP67
- Feature: Hazardous Area No
- Housing Style Barrel - Straight
- Animation Option 1 Solid On
- Supply Voltage 10-30 V dc
- Feature: Chemical Resistant No
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 15.0 X 58.0
- Storage Temp (°C) -40 to 70
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 1 Red
- Max Current Color (mA) 15
- Power DC
- Connection Integral QD
- I/O Block Compatible Yes
- Feature: Quick Disconnect Yes
- Min Op. Temperature (°C) -40
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
S15LRGPQ Description

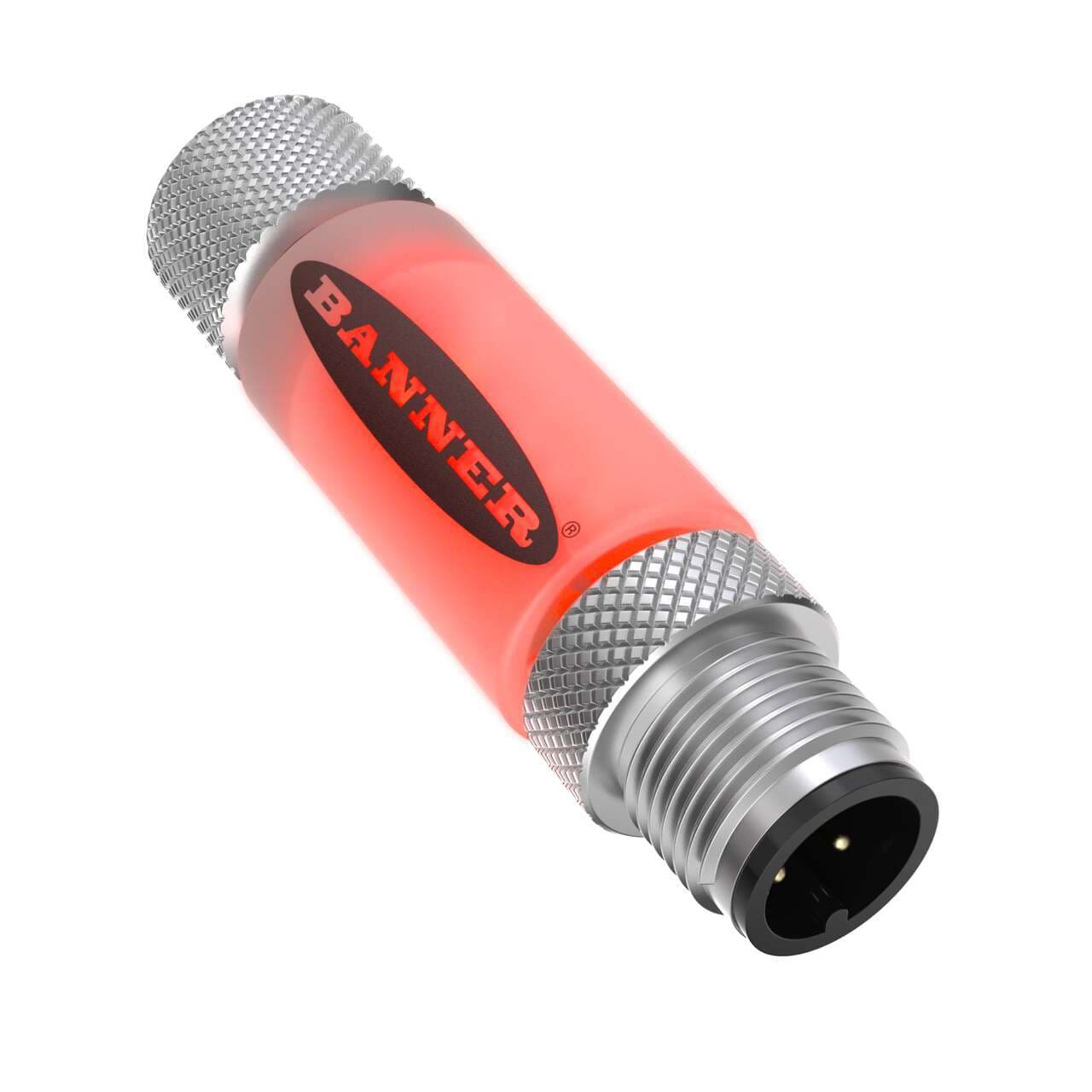

Banner Engineering S15LRGPQ is a pilot light designed with a 2-color R (Not activated) / G (activated) LED illumination, serving as a 2-color in-line sensor status indicator. This part is encased in a polyurethane (PUR) housing, ensuring durability and is equipped with a 4-pin Euro-style M12 male connector for easy connection. It features dimensions of L27.9mm x D15mm and L58mm x D15mm, accommodating a supply voltage range of 10Vdc-30Vdc (12Vdc-24Vdc nominal). The S15LRGPQ is designed to operate within an ambient air temperature range of -40°C to +50°C and offers a high degree of protection with ratings of IP66, IP67, IP68, and NEMA 1. Its cylindrical linear strip shape is complemented by 1 x digital input (10-30Vdc; PNP) for color control, making it a versatile component for various applications.
Related documents S15LRGPQ Specs
