S15LGRNQ Banner Electronic Components
Part#:S15LGRNQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

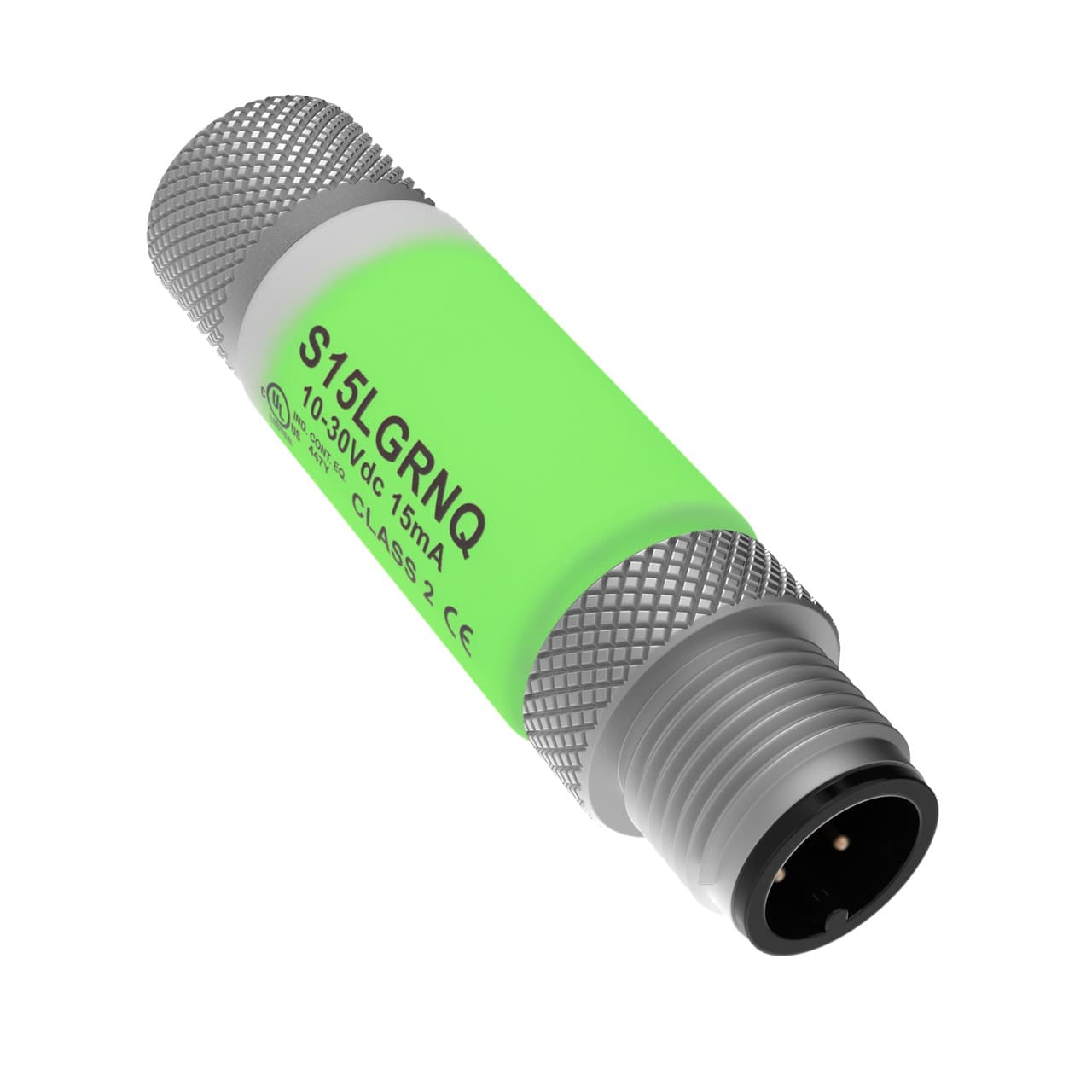

Banner Engineering S15LGRNQ is a pilot light designed with 2-color G (Not activated) / R (activated) LED illumination, serving as a 2-color in-line sensor status indicator. It features a durable polyurethane (PUR) housing and is equipped with a 4-pin Euro-style M12 male connector for connectivity. The dimensions of this part are L27.9mm x D15mm and L58mm x D15mm, supporting a supply voltage range of 10Vdc-30Vdc (12Vdc-24Vdc nominal). It operates efficiently within an ambient air temperature range of -40°C to +50°C. This part boasts a high degree of protection, rated at IP66, IP67, IP68, and NEMA 1, ensuring its resilience in various environmental conditions. Its cylindrical linear strip shape is designed for straightforward integration, and it includes 1 x digital input (10-30Vdc; NPN) for color control.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S15LGRNQ Banner price in the box on the right side or send a quick quote.
Product Details
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Physical Dimensions (LxWxH or DxH mm) 15.0 X 58.0
- Animation Option 1 Solid On
- Connection Integral QD
- Supply Voltage 10-30 V dc
- Feature: Audible No
- Power DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Modbus RTU No
- Primary Housing Material PUR
- Quick Disconnect Type M12 (Euro)
- Number of Input Pins/Conductors 4
- Feature: Hazardous Area No
- IO Link No
- Housing Style Barrel - Straight
- Mounting Thread No Thread
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Power Source DC
- Color Option 1 Green
- Max Current Color (mA) 15
- Max Op. Temperature (°C) 50
- Wireless No
- Color Technology Standard LED
- Color Option 2 Red
- I/O Block Compatible Yes
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Environmental Rating IP66; IP67
- Multi-Color Device Single Color On
- Number of Colors / Segments 2
- Indication Yes
- Min Op. Temperature (°C) -40
- Product Size (mm) 15
- Animation Option 2 Solid On
- Input Type NPN
- Feature: Cascade Yes
- Storage Temp (°C) -40 to 70
- Feature: Quick Disconnect Yes
