S15LGRPQ Banner Signal Beacons
Part#:S15LGRPQ
Manufacturer:Banner
Alt. Part#:809569
Product Lifecycle:Active
Get a quick Quote!
S15L Series: 2-Color In-Line Sensor Status Indicator; Voltage: 10-30 V dc; Housing: Polyurethane; IP67; Input: PNP; Colors: Green Red; Male-Female 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S15LGRPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight34.926584 g
- Country Of OriginTW
- Housing Style Barrel - Straight
- Animation Option 1 Solid On
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Quick Disconnect Yes
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 15
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 2
- Animation Option 2 Solid On
- Physical Dimensions (LxWxH or DxH mm) 15.0 X 58.0
- Feature: Chemical Resistant No
- Mounting Thread No Thread
- Color Option 2 Red
- Connection Integral QD
- Environmental Rating IP66; IP67
- Multi-Color Device Single Color On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Min Op. Temperature (°C) -40
- Wireless No
- Power DC
- Number of Input Pins/Conductors 4
- Max Op. Temperature (°C) 50
- IO Link No
- Primary Housing Material PUR
- Color Technology Standard LED
- Input Type PNP
- Storage Temp (°C) -40 to 70
- Product Size (mm) 15
- Supply Voltage 10-30 V dc
- Feature: Hazardous Area No
- Indication Yes
- Color Option 1 Green
- I/O Block Compatible Yes
- Feature: Cascade Yes
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
S15LGRPQ Description

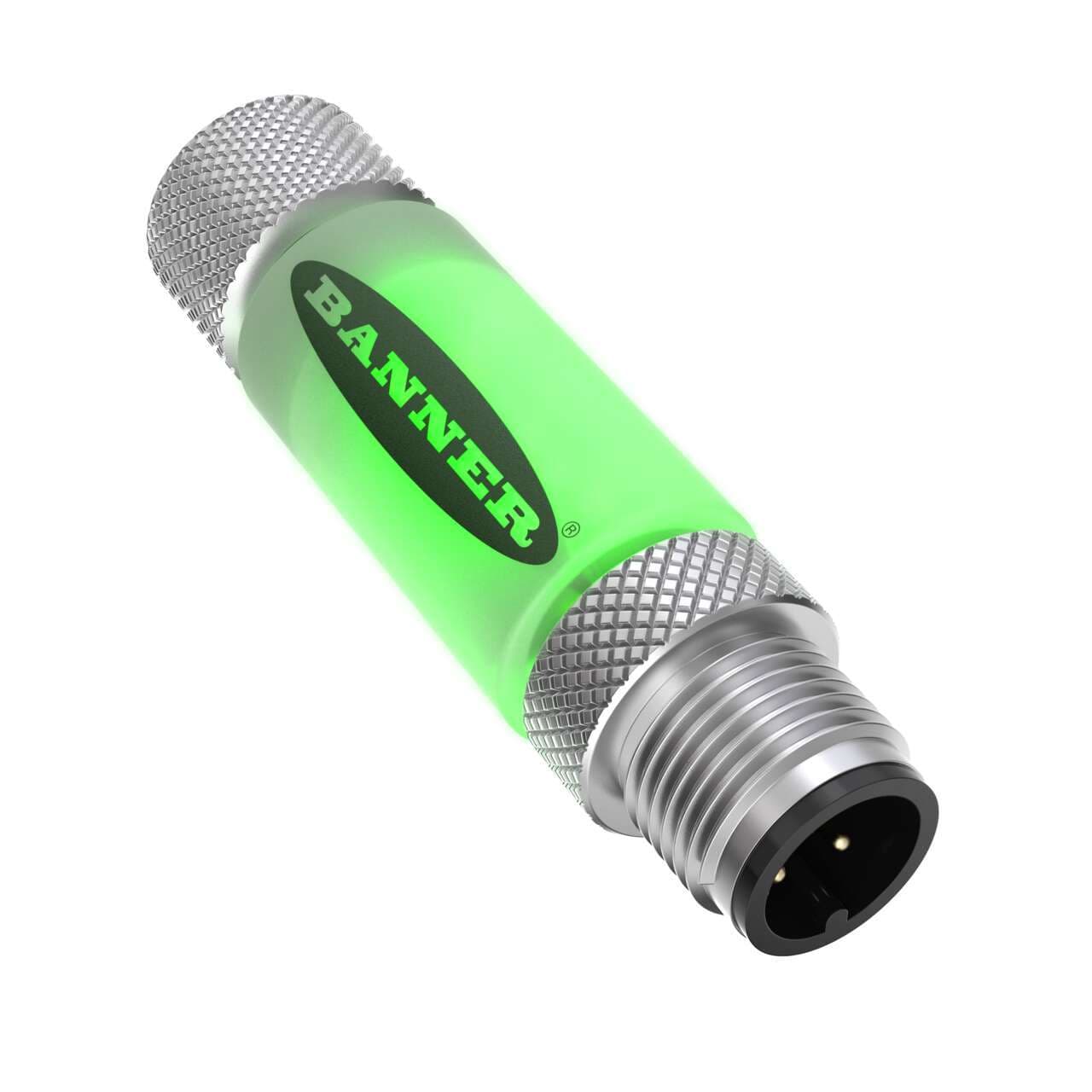

Banner Engineering S15LGRPQ is a pilot light designed with 2-color G (Not activated) / R (activated) LED illumination, serving as a 2-color in-line sensor status indicator. This part is constructed with a polyurethane (PUR) housing and comes pre-equipped with a 4-pin Euro-style M12 male connector for connectivity. It features dimensions of L27.9mm x D15mm and L58mm x D15mm, and operates on a supply voltage range of 10Vdc-30Vdc (12Vdc-24Vdc nominal). The S15LGRPQ is designed to function within an ambient air temperature range of -40°C to +50°C and offers a degree of protection rated at IP66, IP67, IP68, and NEMA 1. Its cylindrical linear strip shape is complemented by 1 x digital input (10-30Vdc; PNP) for color control.
Related documents S15LGRPQ Specs
