S15LGYPQ Banner Electronic Components
Part#:S15LGYPQ
Manufacturer:Banner
Product Lifecycle:Active
In-stock parts: 8
Jun 19, 2025

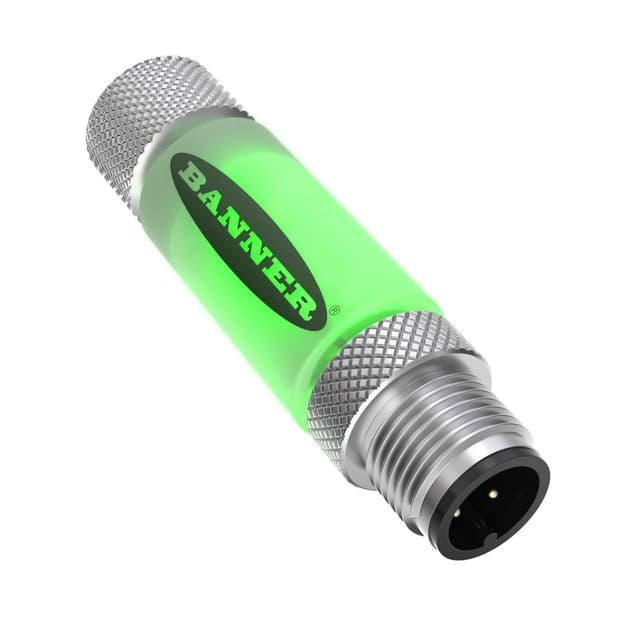

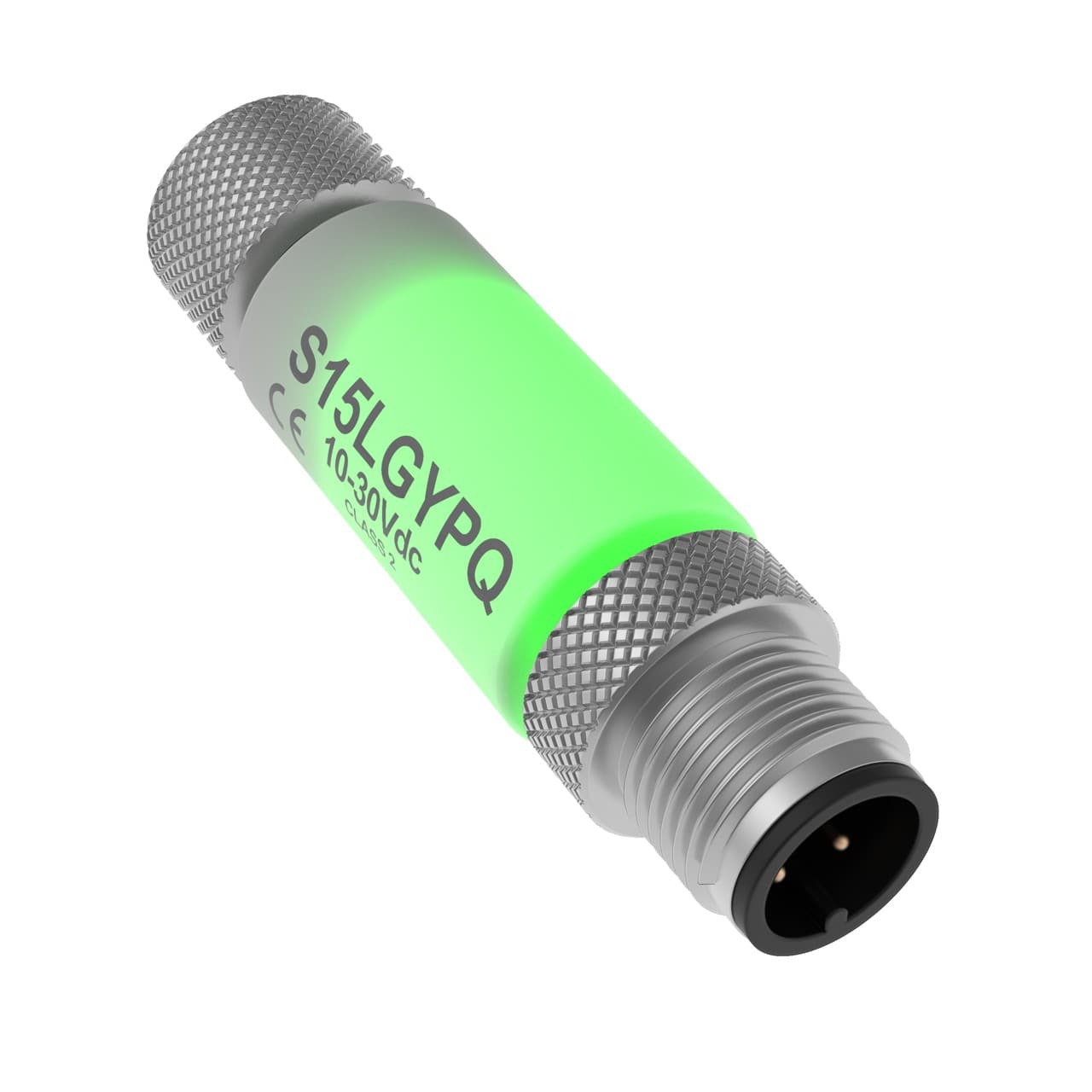

Banner Engineering S15LGYPQ is a pilot light designed with 2-color G (Green when not activated) / Y (Yellow when activated) LED illumination, serving as an in-line sensor status indicator. This part is constructed with a polyurethane (PUR) housing and comes pre-equipped with a 4-pin Euro-style M12 male connector for connectivity. It features dimensions of L27.9mm x D15mm and L58mm x D15mm, and operates on a supply voltage range of 10Vdc-30Vdc, with a nominal range of 12Vdc-24Vdc. The S15LGYPQ is designed to function within an ambient air temperature range of -40°C to +50°C and offers a high degree of protection with ratings of IP66, IP67, IP68, and NEMA 1. Its cylindrical linear strip shape is complemented by 1 x digital input (10-30Vdc; PNP) for color control, enhancing its functionality as a versatile component in automation systems.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S15LGYPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Environmental Rating IP66; IP67
- Feature: Cascade Yes
- Number of Colors / Segments 2
- Quick Disconnect Type M12 (Euro)
- I/O Block Compatible Yes
- Storage Temp (°C) -40 to 70
- Indication Yes
- Power Source DC
- Input Type PNP
- Feature: Hazardous Area No
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 15.0 X 58.0
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 2 Solid On
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Modbus RTU No
- Primary Housing Material PUR
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 4
- Multi-Color Device Single Color On
- Mounting Thread No Thread
- Color 2 - Wavelength/Color Temp/Coordinates 590 nm
- Max Op. Temperature (°C) 50
- Wireless No
- Housing Style Barrel - Straight
- Color Option 1 Green
- Supply Voltage 10-30 V dc
- Feature: Quick Disconnect Yes
- Power DC
- Connection Integral QD
- Max Current Color (mA) 15
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Product Size (mm) 15
- Color Option 2 Yellow
- Min Op. Temperature (°C) -40
- IO Link No
