Q253EQ3 Banner Electronic Components
Part#:Q253EQ3
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

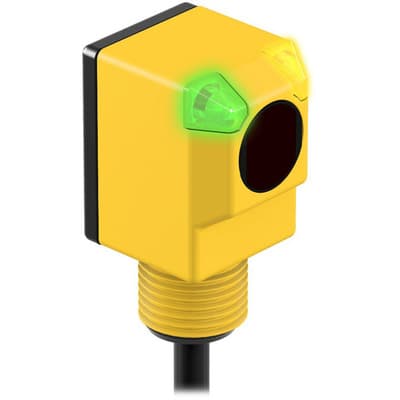

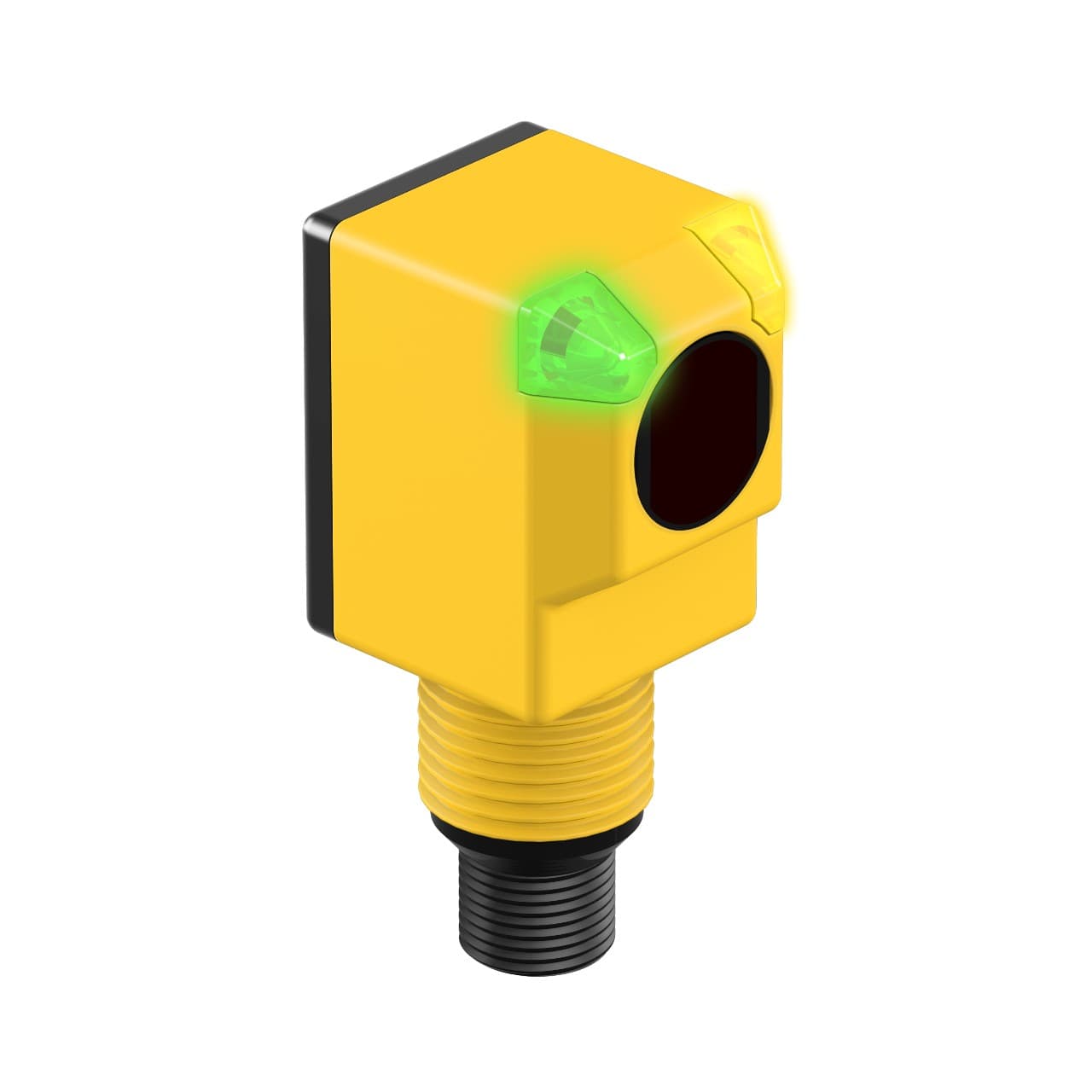

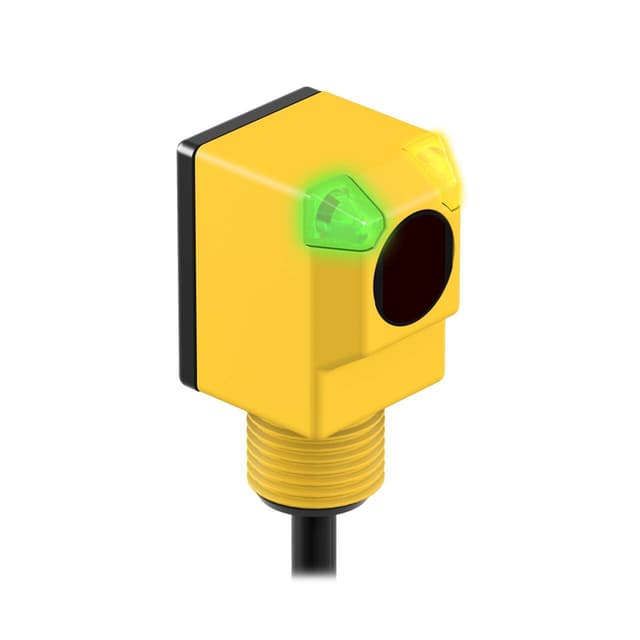

Photo-electric emitter with through-beam system / opposed mode - Banner Engineering (EZ-BEAM series - Q25 AC series) - Part #36967 - Infrared (IR) light (950nm) - Supply voltage 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.) - Pre-equipped with 5-pin Euro-s
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q253EQ3 Banner price in the box on the right side or send a quick quote.
Product Details
- Main function Sensor (Photo-electric)
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Thread size M18
- Order code / Manufacturer SKU 36967
- Primary brand Banner Engineering
- Functions Photo-electric emitter green LED (power ON) amber LED (output state)
- Shape Rectangular
- Degree of protection IP69K NEMA 6P
- Compliant with standard(s) cULus cCSAus CE
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Light Color Infrared (IR)
- Response time 16ms / 0.016 s
- Sub-range name Q25 AC series
- Wavelength 950 nm
- Material thermoplastic housing Polycarbonate lns.
- Product series / family name EZ-BEAM series
- Design through-beam system / opposed mode
- Ambient air temperature for operation -40...+70 °C
- Sensing Beam Infrared LED
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) 2000
- Opposed Mode Emitter/Receiver Emitter
- IO Link No
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 70
- IP Rating IP69
- Feature: Ecolab Certified Yes
- Max Sensing Distance (mm) 20000
- Output response time (ms) 16 ON/8 OFF
- Number of Pins 5
- Feature: Washdown Rated Yes
- Connection Integral QD
- Power Supply/Supply Voltage 20-250 V ac
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Opposed
- Adjustments N/A
- Operation N/A
- Feature: Encapsulated Yes
- Housing Style Rectangular
- Special Feature: Water Detection No
- Barrel Diameter (mm) 18
- DeviceNet No
- Power AC
- Min Op. Temp. (°C) -40
- Indicator LEDs
- Delay at Power-up (ms) 100
- Sensing Mode (Detailed) Emitter
- Lens Material Polycarbonate
- Special Feature: Intrinsically Safe No
- Feature: Audible No
- Outputs N/A
- Special Feature: Remote Teach No
- NEMA Rating NEMA 6P
- Feature: Hazardous Area No
- Feature: Chemical Resistant Yes
