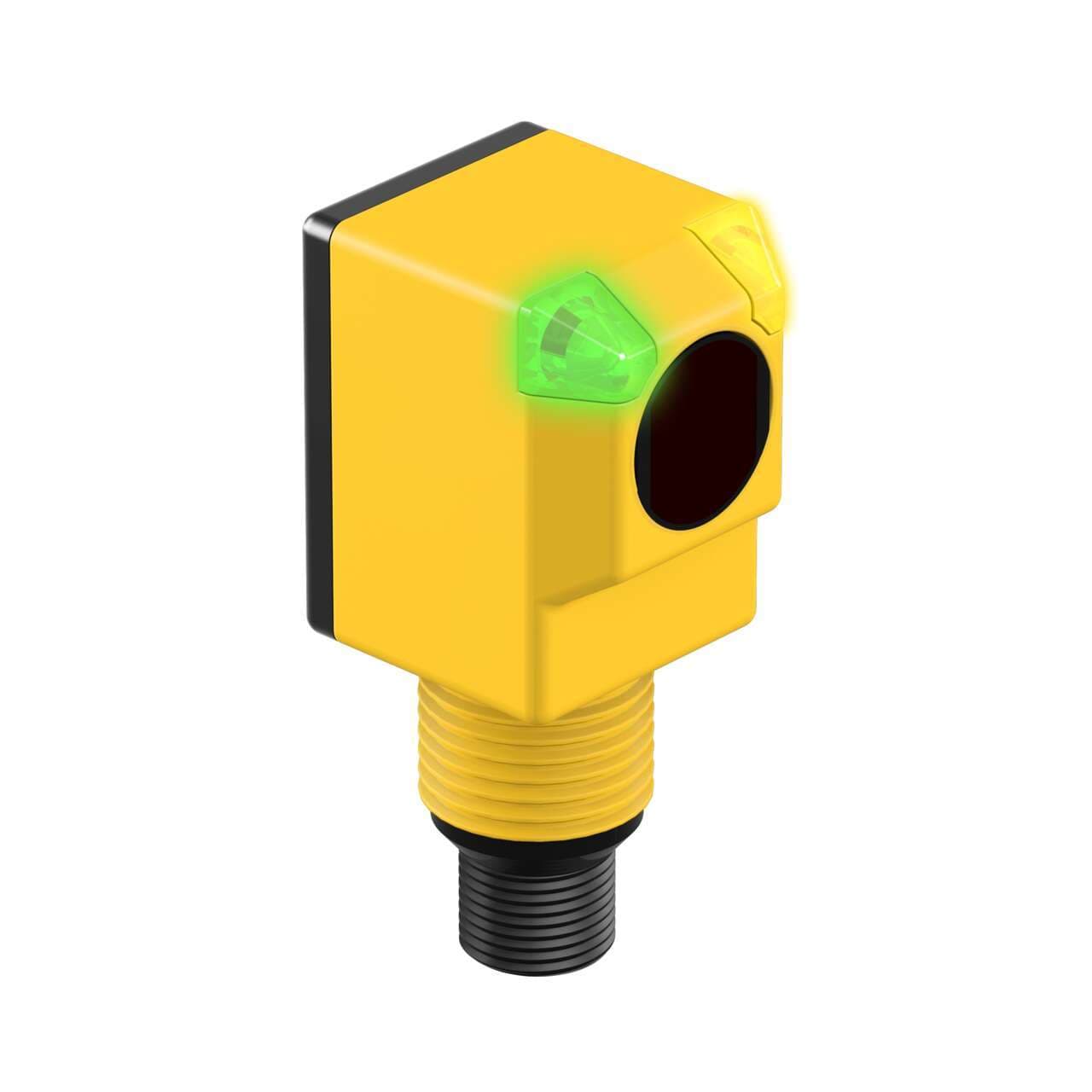

Q253EQ1 Banner Proximity Sensors
Part#:Q253EQ1
Manufacturer:Banner
Alt. Part#:31971
Product Lifecycle:Active
Get a quick Quote!
EZ-BEAM Q25 Series: Emitter; Range: 20 m; Input: 20-250 V ac; Output: Not Applicable; 4-pin Micro Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q253EQ1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight56.699 g
- Country Of OriginUS
- Main function Sensor (Photo-electric)
- Shape Rectangular
- Order code / Manufacturer SKU 31971
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Thread size M18
- Material thermoplastic housing Polycarbonate lns.
- Compliant with standard(s) cULus CCC cCSAus CE
- Primary brand Banner Engineering
- Sub-range name Q25 AC series
- Light Color Infrared (IR)
- Degree of protection IP69K NEMA 6P
- Product series / family name EZ-BEAM series
- Design through-beam system / opposed mode
- Connection type Pre-equipped with 4-pin 1/2" Micro connector
- Ambient air temperature for operation -40...+70 °C
- Functions Photo-electric emitter green LED (power ON) amber LED (output state)
- Wavelength 950 nm
- Response time 16ms / 0.016 s
- Max Sensing Distance (mm) 20000
- Special Feature: Remote Teach No
- Lens Material Polycarbonate
- Outputs N/A
- Housing Style Rectangular
- Max Op. Temp. (°C) 70
- Repeatability (µs) 2000
- Barrel Diameter (mm) 18
- Sensing Mode (General) Opposed
- Min Op. Temp. (°C) -40
- NEMA Rating NEMA 6P
- Opposed Mode Emitter/Receiver Emitter
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Emitter
- Operation N/A
- IP Rating IP69
- Feature: Ecolab Certified Yes
- Sensing Beam Infrared LED
- Connection Integral QD
- Delay at Power-up (ms) 100
- Feature: Encapsulated Yes
- Power AC
- Quick Disconnect Type 1/2 in. (Micro)
- Special Feature: Intrinsically Safe No
- Adjustments N/A
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Number of Pins 4
- DeviceNet No
- Feature: Timing (Hold/Delay) No
- Power Supply/Supply Voltage 20-250 V ac
- Special Feature: Water Detection No
- Indicator LEDs
- Output response time (ms) 16 ON/8 OFF
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Washdown Rated Yes
- IO Link No
- Feature: Chemical Resistant Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q253EQ1 Description
Banner Engineering Q253EQ1 is a photo-electric sensor designed for through-beam system applications, featuring an emitter alone configuration. It comes with an M18 threaded mount for installation and operates within an ambient air temperature range of -40 to +70°C. This sensor is part of the Q25 AC series and is equipped with a 4-pin 1/2" micro connector for connectivity. It supports a supply voltage range of 20Vac to 250Vac, with nominal values at 200Vac, 220Vac, and 240Vac. The Q253EQ1 offers a degree of protection rated at IP69K NEMA 6P, ensuring durability in various environmental conditions. Its rectangular shape is constructed from a thermoplastic housing with a polycarbonate lens. The sensing distance is up to 20m, utilizing infrared light with a wavelength of 950 nm and a response time of 16ms (0.016 s).
