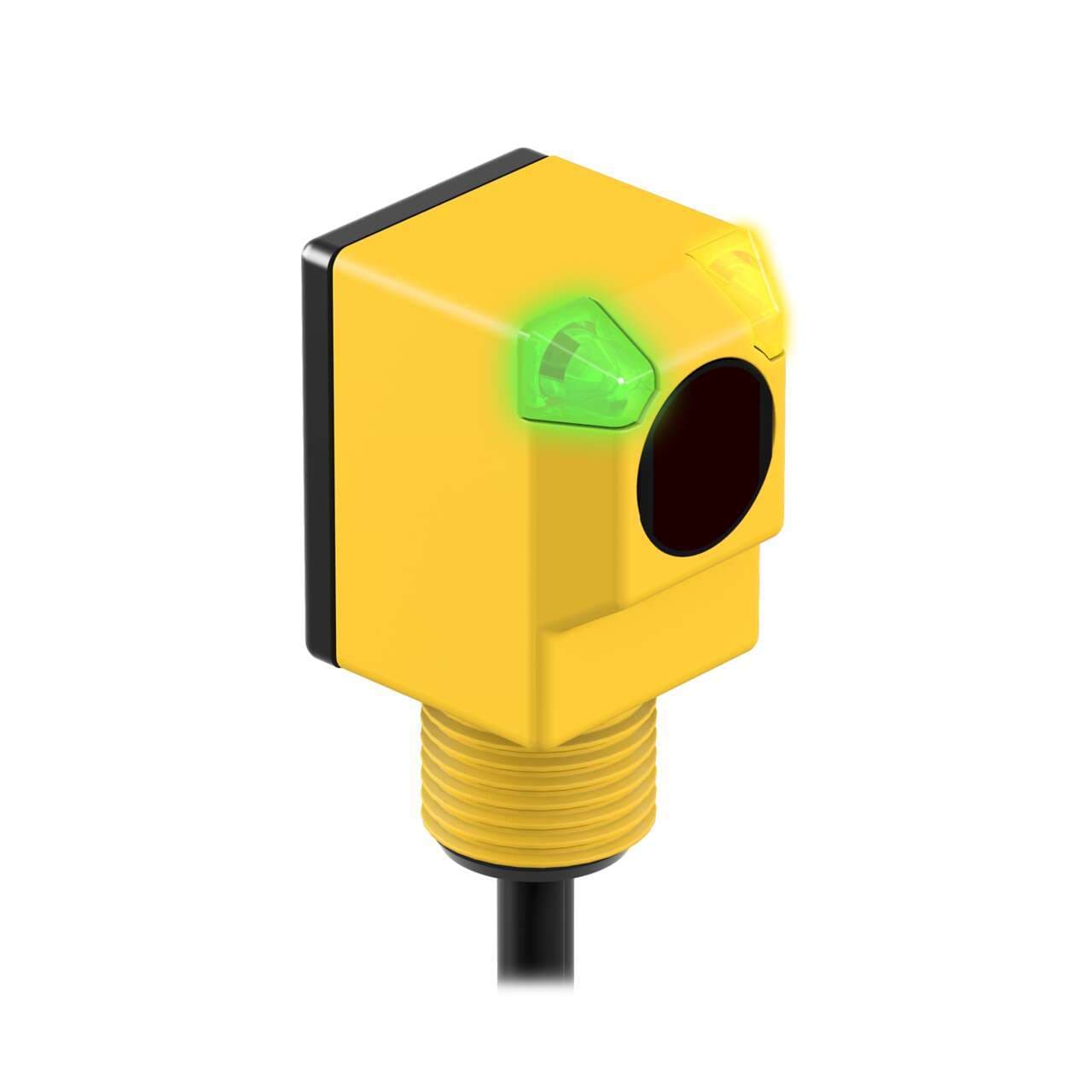

Q253E Banner Proximity Sensors
Part#:Q253E
Manufacturer:Banner
Alt. Part#:31966
Product Lifecycle:Active
Get a quick Quote!
EZ-BEAM Q25 Series: Emitter; Range: 20 m; Input: 20-250 V ac; Output: Not Applicable; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q253E Banner price in the box on the right side or send a quick quote.
Product Details
- Weight147.4174 g
- Country Of OriginUS
- Supply voltage (AC) 20Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Response time 16ms / 0.016 s
- Shape Rectangular
- Product series / family name EZ-BEAM series
- Functions Photo-electric emitter green LED (power ON) amber LED (output state)
- Degree of protection IP67 NEMA 6P
- Order code / Manufacturer SKU 31966
- Sub-range name Q25 AC series
- Wavelength 950 nm
- Compliant with standard(s) cULus CCC cCSAus CE
- Main function Sensor (Photo-electric)
- Light Color Infrared (IR)
- Material thermoplastic housing Polycarbonate lns.
- Primary brand Banner Engineering
- Design through-beam system / opposed mode
- Thread size M18
- Ambient air temperature for operation -40...+70 °C
- Housing Style Rectangular
- Output response time (ms) 16 ON/8 OFF
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Encapsulated Yes
- Feature: Chemical Resistant Yes
- Outputs N/A
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver Emitter
- Max Sensing Distance (mm) 20000
- Min Op. Temp. (°C) -40
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 18
- DeviceNet No
- Sensing Mode (General) Opposed
- Operation N/A
- IP Rating IP69
- Feature: Washdown Rated Yes
- IO Link No
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- NEMA Rating NEMA 6P
- Feature: Ecolab Certified Yes
- Sensing Mode (Detailed) Emitter
- Connection Cable
- Special Feature: Remote Teach No
- Adjustments N/A
- Feature: Hazardous Area No
- Cable Length (m) 2
- Power Supply/Supply Voltage 20-250 V ac
- Repeatability (µs) 2000
- Indicator LEDs
- Sensing Beam Infrared LED
- Special Feature: Intrinsically Safe No
- Number of Pins 2
- Feature: Timing (Hold/Delay) No
- Power AC
- Max Op. Temp. (°C) 70
- Lens Material Polycarbonate
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q253E Description
Banner Engineering Q253E is a photo-electric sensor designed for through-beam system applications, functioning as an emitter alone. It features an M18 threaded mount for secure installation and is equipped with a pre-wired 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. This sensor operates within an ambient air temperature range of -40 to +70°C and is suitable for use in environments requiring a high degree of protection, as indicated by its IP69K NEMA 6P rating. The Q253E, part of the Q25 AC series, is designed with a rectangular, thermoplastic housing and a polycarbonate lens. It operates on a supply voltage of 20Vac-250Vac (with 200Vac / 220Vac / 240Vac nominal values) and offers a sensing distance of up to 20m. The sensor emits infrared light at a wavelength of 950 nm and boasts a response time of 16ms / 0.016 s.
Related documents Q253E Specs
