Q240RA-EU-ILQ Banner Optical Sensors
Part#:Q240RA-EU-ILQ
Manufacturer:Banner
Alt. Part#:801993
Product Lifecycle:Active
Get a quick Quote!

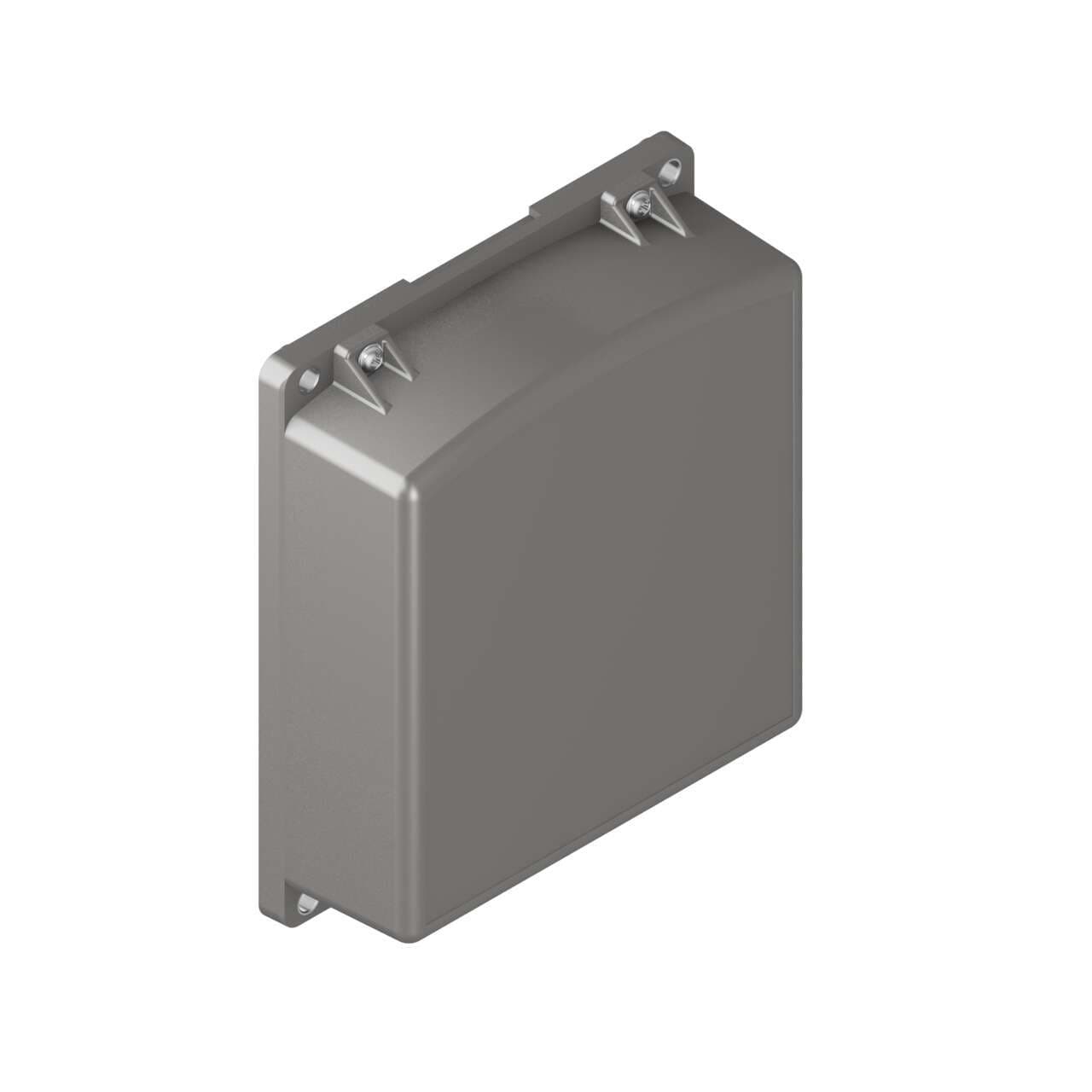

R-GAGE Series; 173 mm x 158 mm Rectangular Housing; Range: 3.5-100 m; Input: 10-30 V dc; M12 Integral QD; One Analog output 4-20 mA; EU Frequency
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q240RA-EU-ILQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1065.9412 g
- Country Of OriginUS
- Primary brand Banner Engineering
- Main function Sensor (Radar)
- Design time-of-flight system Europe / UK / Australia / New Zealand Telecom-approved
- Degree of protection IP67
- Compliant with standard(s) cULus CE
- Sub-range name Q240R
- Functions Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
- Analog outputs 1 x analog output (4-20mA)
- Ambient air temperature for operation -40...+65 °C
- Product series / family name R-GAGE series
- Sensing distance 3.5...100m
- Material polycarbonate housing
- Protection functions Reverse polarity Short-circuit
- Emission frequency 24.050GHz...24.250GHz (ISM band)
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Digital outputs 2 x digital outputs (PNP/NPN transistors)
- Order code / Manufacturer SKU 801993
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Shape Rectangular
- Operating mode NO (Normally Open) NC (Normally Closed)
- Equivalent to Q240RAEUILQ
- Sensing Beam Radar
- Indicator LED(s)
- Max Sensing Distance (mm) 100000
- Power Supply 12-30 V dc
- Discrete (Switched) Outputs 2 NPN/PNP Configurable
- Max Discrete (Switched) Output (mA) 150
- Feature: Timing (Hold/Delay) No
- Sensing Mode (Detailed) Time of Flight
- Quick Disconnect Type M12 (Euro)
- Mechanical Shock 30G 11 ms duration, half sine wave per IEC 60068-2-27
- Analog Linearity (mm) +/- 1m
- Common Ethernet Protocol No
- Sensing Mode (General) Proximity
- Connection Integral QD
- Vibration 10 Hz to 55 Hz 0.5 mm p-p amplitude per IEC 60068-2-6
- Max Operating Temperature (°C) 65
- RS-422 No
- Device Type Sensor
- Delay at Power-up (ms) 2000
- Output Protection Protected against short circuit
- RS-232 No
- SSI No
- Power DC
- Radar Beam Pattern (H x V °) 11 x 13
- Analog Current Output Rating 1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5)/0.02 Ω]
- Power/Current Consumption (exclusive of load) < 85 mA
- RS-485 No
- PC Configurable No
- Analog Resolution/Discrete Repeatability 500
- Temperature Effect (mm/°C) 50 mm/°C
- IP Rating IP67
- PROFINET No
- Cert: European Yes
- Operating Frequency 24 GHz
- Input/Output Analog & Discrete
- Adjustments Dip Switch
- Minimum Response Time (ms) 15
- IO Link No
- Housing Style Rectangular
- Analog Output Configuration 4-20 mA
- Number of Pins 5
- Min Operating Temperature (°C) -40
- Feature: Chemical Resistant No
- Profibus No
- Max Measurement Range >50 m
- Primary Housing Material Polycarbonate
- Minimum Sensing Distance (mm) 3500
- Wireless No
- 1-wire Serial Interface No
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q240RA-EU-ILQ Description
Banner Engineering Q240RA-EU-ILQ is a narrow-beam adjustable-field radar sensor designed for a variety of detection applications. It operates within an ambient air temperature range of -40 to +65 °C and features a time-of-flight system that is approved for use in Europe, the UK, Australia, and New Zealand by Telecom. This sensor is equipped with a 5-pin Euro-style M12 connector for easy installation. As part of the Q240R series, it offers an IP67 degree of protection, ensuring durability in harsh environments. The sensor requires a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and is housed in a rectangular, polycarbonate (PC) enclosure. It operates on a 24.050GHz to 24.250GHz transmission frequency within the ISM band. The Q240RA-EU-ILQ can detect objects within a sensing distance of 3.5 to 100 meters and includes both normally open (NO) and normally closed (NC) operating modes. It features 2 digital outputs (PNP/NPN transistor) and 1 analog output (4-20mA), with built-in protection against reverse polarity and short-circuit conditions.
