Q240RA-CN-AF2LQ Banner Electronic Components
Part#:Q240RA-CN-AF2LQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

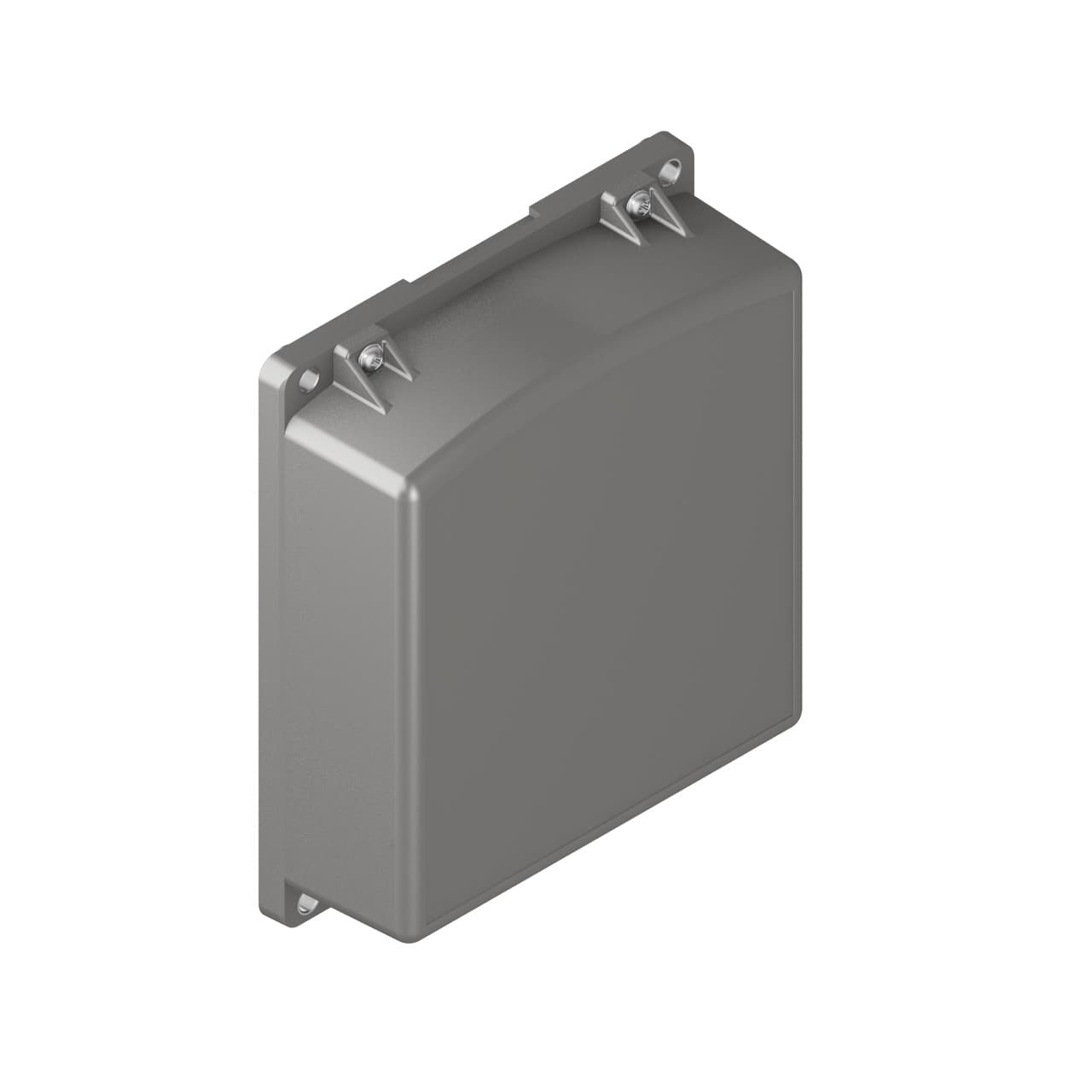

Banner Engineering Q240RA-CN-AF2LQ is a narrow-beam adjustable-field radar sensor designed with a time-of-flight system and approved by China Telecom. It operates within an ambient air temperature range of -40 to +65 °C and is housed in a polycarbonate (PC) material, ensuring durability within specified environmental conditions. This sensor is part of the Q240R series and features a rectangular shape with a degree of protection rated at IP67, making it suitable for various industrial applications. It is pre-equipped with a 5-pin Euro-style M12 connector for connectivity and operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The sensor's transmission frequency spans from 24.050GHz to 24.250GHz within the ISM band, and it can detect objects within a sensing distance of 3.5 to 100 meters. It offers two digital outputs (PNP/NPN transistor) and supports both Normally Open (NO) and Normally Closed (NC) operating modes. Additionally, it includes protection functions against reverse polarity and short-circuit incidents.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q240RA-CN-AF2LQ Banner price in the box on the right side or send a quick quote.
Product Details
- Design time-of-flight system China telecom-approved
- Material polycarbonate housing
- Equivalent to Q240RACNAF2LQ
- Primary brand Banner Engineering
- Sub-range name Q240R
- Functions Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
- Degree of protection IP67
- Compliant with standard(s) cULus
- Main function Sensor (Radar)
- Product series / family name R-GAGE series
- Operating mode NO (Normally Open) NC (Normally Closed)
- Emission frequency 24.050GHz...24.250GHz (ISM band)
- Ambient air temperature for operation -40...+65 °C
- Order code / Manufacturer SKU 801722
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Protection functions Reverse polarity Short-circuit
- Sensing distance 3.5...100m
- Shape Rectangular
- Digital outputs 2 x digital outputs (PNP/NPN transistors)
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- SSI No
- PC Configurable No
- Adjustments Dip Switch
- Max Operating Temperature (°C) 65
- Sensing Mode (General) Proximity
- Indicator LED(s)
- Number of Pins 5
- Minimum Response Time (ms) 15
- 1-wire Serial Interface No
- Housing Style Rectangular
- Operating Frequency 24 GHz
- Sensing Mode (Detailed) Time of Flight
- Connection Integral QD
- Max Sensing Distance (mm) 100000
- Max Discrete (Switched) Output (mA) 150
- Output Protection Protected against short circuit
- Power/Current Consumption (exclusive of load) < 85 mA
- Feature: Chemical Resistant No
- Power DC
- Minimum Sensing Distance (mm) 3500
- Discrete (Switched) Outputs 2 NPN/PNP Configurable
- IO Link No
- Profibus No
- Max Measurement Range >50 m
- Quick Disconnect Type M12 (Euro)
- Vibration 10 Hz to 55 Hz 0.5 mm p-p amplitude per IEC 60068-2-6
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- RS-422 No
- Cert: China Yes
- Sensing Beam Radar
- Input/Output Discrete
- Delay at Power-up (ms) 2000
- Min Operating Temperature (°C) -40
- PROFINET No
- Primary Housing Material Polycarbonate
- Power Supply 12-30 V dc
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Radar Beam Pattern (H x V °) 11 x 13
- Device Type Sensor
- Mechanical Shock 30G 11 ms duration, half sine wave per IEC 60068-2-27
- Common Ethernet Protocol No
- RS-485 No
- RS-232 No
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents Q240RA-CN-AF2LQ Specs
