Q240RA-EU-AF2LQ Banner Optical Sensors
Part#:Q240RA-EU-AF2LQ
Manufacturer:Banner
Alt. Part#:801992
Product Lifecycle:Active
Get a quick Quote!

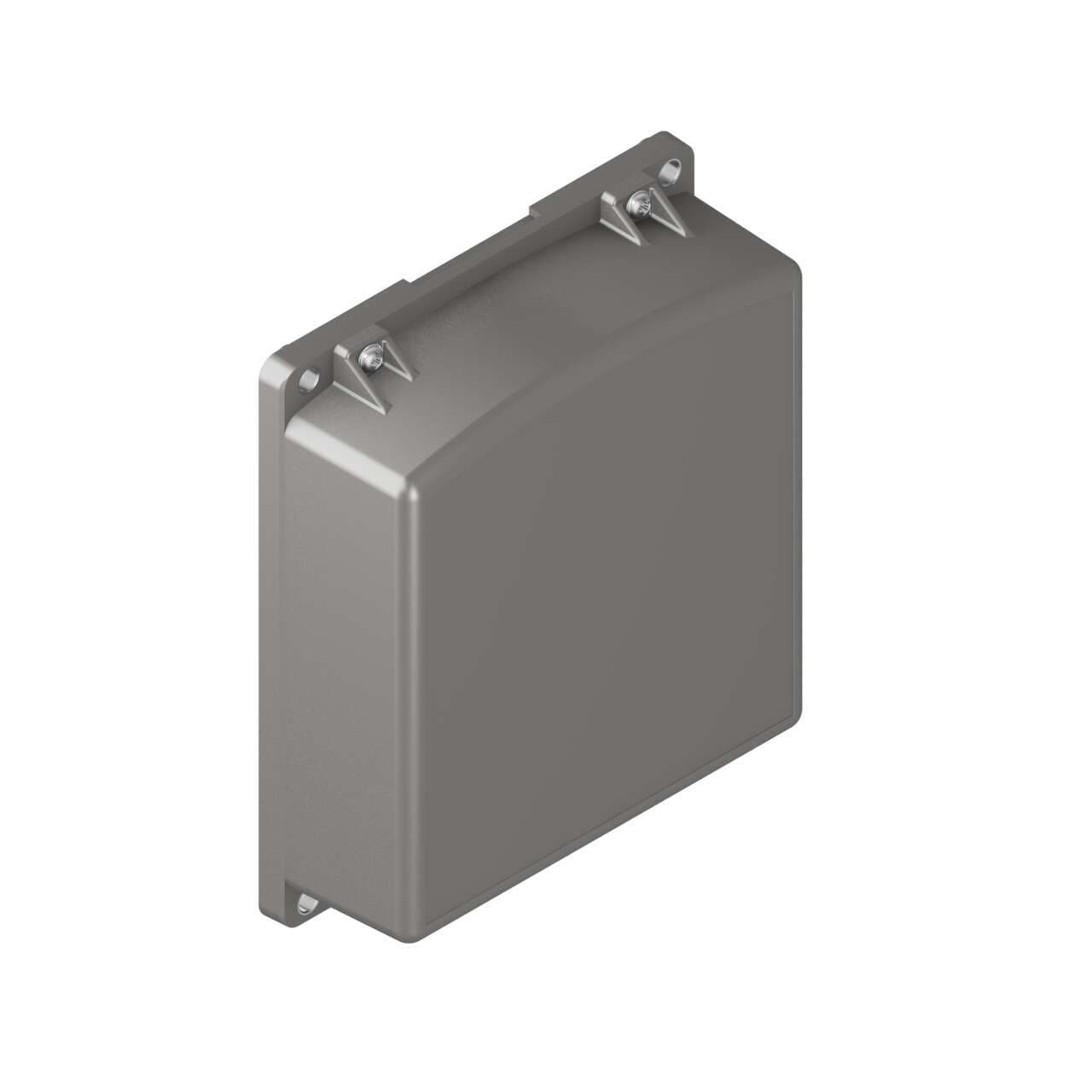

R-GAGE Series; 173 mm X 158 mm Rectangular Housing; Range: 3.5-100 m; Input: 10-30 V dc; M12 Integral QD; Two Bipolar Outputs; EU Frequency
About the manufacturer: Banner is one of the manufacturers that offers Optical Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q240RA-EU-AF2LQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1034.18976 g
- Country Of OriginUS
- Sensing distance 3.5...100m
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Digital outputs 2 x digital outputs (PNP/NPN transistors)
- Compliant with standard(s) cULus CE
- Product series / family name R-GAGE series
- Shape Rectangular
- Equivalent to Q240RAEUAF2LQ
- Sub-range name Q240R
- Operating mode NO (Normally Open) NC (Normally Closed)
- Ambient air temperature for operation -40...+65 °C
- Emission frequency 24.050GHz...24.250GHz (ISM band)
- Main function Sensor (Radar)
- Functions Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Protection functions Reverse polarity Short-circuit
- Primary brand Banner Engineering
- Design time-of-flight system Europe / UK / Australia / New Zealand Telecom-approved
- Degree of protection IP67
- Material polycarbonate housing
- Order code / Manufacturer SKU 801992
- Max Measurement Range >50 m
- Max Sensing Distance (mm) 100000
- Power DC
- Minimum Sensing Distance (mm) 3500
- Output Protection Protected against short circuit
- Power/Current Consumption (exclusive of load) < 85 mA
- IP Rating IP67
- RS-485 No
- Sensing Mode (General) Proximity
- Input/Output Discrete
- Adjustments Dip Switch
- Minimum Response Time (ms) 15
- Wireless No
- Quick Disconnect Type M12 (Euro)
- Max Operating Temperature (°C) 65
- Feature: Chemical Resistant No
- Profibus No
- PC Configurable No
- Housing Style Rectangular
- Power Supply 12-30 V dc
- Discrete (Switched) Outputs 2 NPN/PNP Configurable
- RS-232 No
- Sensing Beam Radar
- Radar Beam Pattern (H x V °) 11 x 13
- Number of Pins 5
- Min Operating Temperature (°C) -40
- SSI No
- Sensing Mode (Detailed) Time of Flight
- Primary Housing Material Polycarbonate
- Delay at Power-up (ms) 2000
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- PROFINET No
- Operating Frequency 24 GHz
- Indicator LED(s)
- Vibration 10 Hz to 55 Hz 0.5 mm p-p amplitude per IEC 60068-2-6
- Feature: Timing (Hold/Delay) No
- RS-422 No
- Device Type Sensor
- Connection Integral QD
- Mechanical Shock 30G 11 ms duration, half sine wave per IEC 60068-2-27
- Common Ethernet Protocol No
- Cert: European Yes
- Max Discrete (Switched) Output (mA) 150
- IO Link No
- 1-wire Serial Interface No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Q240RA-EU-AF2LQ Description
Banner Engineering Q240RA-EU-AF2LQ is a narrow-beam adjustable-field radar sensor designed for precise detection tasks. It operates within an ambient air temperature range of -40 to +65°C and is built on a time-of-flight system that is approved for use in Europe, the UK, Australia, and New Zealand by telecom authorities. This sensor is equipped with a 5-pin Euro-style M12 connector for connectivity and belongs to the Q240R series. It offers a degree of protection rated at IP67, making it suitable for challenging environments. The supply voltage required for operation ranges from 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. Its rectangular shape is constructed from a polycarbonate (PC) housing, ensuring durability. The sensor operates on a 24.050GHz to 24.250GHz transmission frequency within the ISM band and can detect objects within a sensing distance of 3.5 to 100 meters. It features an operating mode that can be set to either NO (Normally Open) or NC (Normally Closed) and includes 2 x digital outputs (PNP/NPN transistor) for versatile signaling. Additionally, it is equipped with protection functions against reverse polarity and short-circuit incidents.
