Q240RA-US-AF2LQ Banner Electronic Components
Part#:Q240RA-US-AF2LQ
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

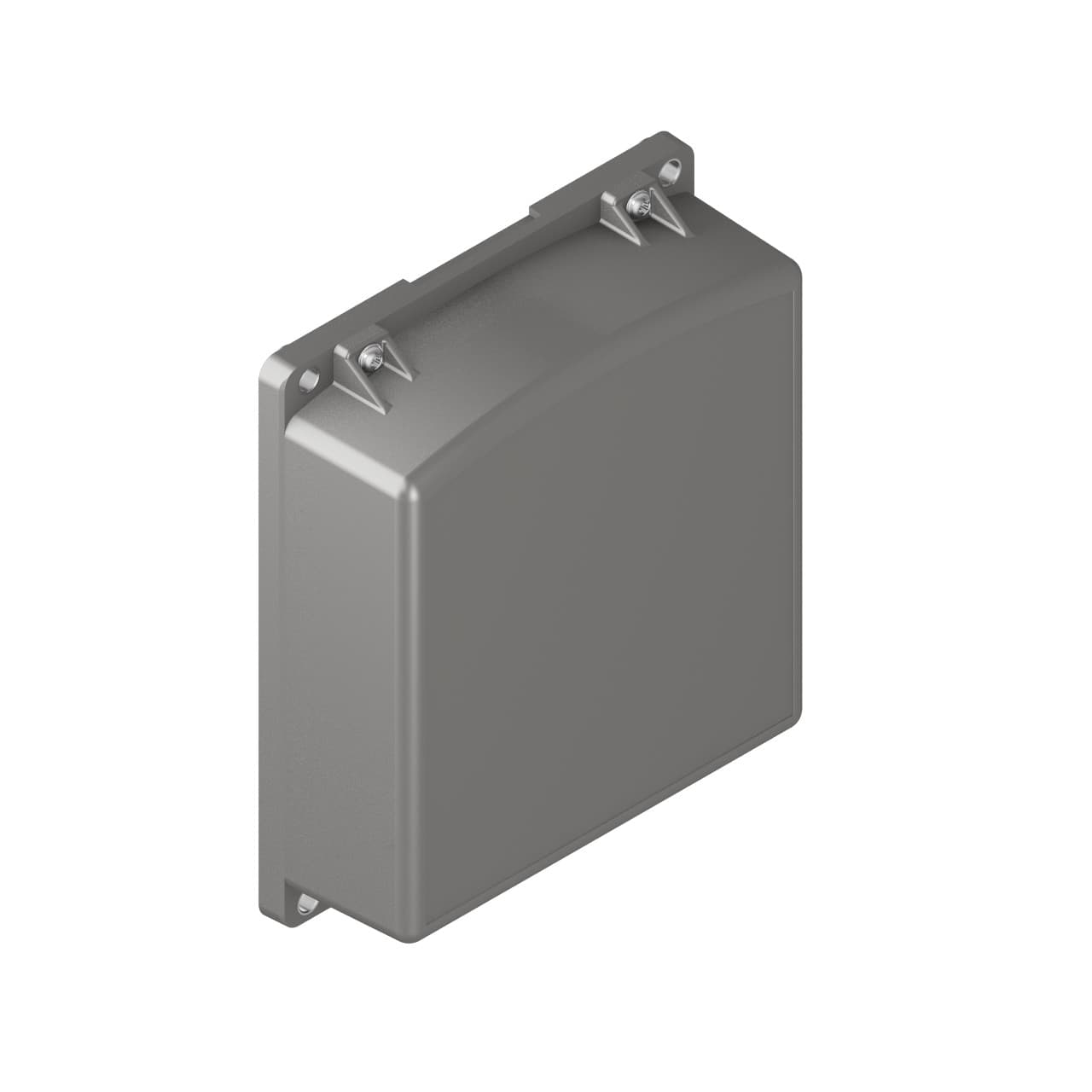

Banner Engineering Q240RA-US-AF2LQ is a narrow-beam adjustable-field radar sensor designed for a variety of applications. It operates within an ambient air temperature range of -40 to +65°C and features a time-of-flight system that is US / Canada Telecom-approved. This sensor is equipped with a 5-pin Euro-style M12 connector for easy installation and falls under the Q240R series. It boasts an IP67 degree of protection, making it suitable for harsh environments. The supply voltage required for operation is 12Vdc to 30Vdc, with 24Vdc being nominal. Its rectangular shape is constructed from a polycarbonate (PC) housing, ensuring durability. The sensor operates on a 24.075GHz to 24.175GHz (ISM band) transmission frequency, offering a sensing distance range of 3.5 to 100 meters. It supports both Normally Open (NO) and Normally Closed (NC) operating modes and includes 2 x digital outputs (PNP/NPN transistor) for versatile connectivity. Additionally, it features protection functions against reverse polarity and short-circuit incidents.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q240RA-US-AF2LQ Banner price in the box on the right side or send a quick quote.
Product Details
- Product series / family name R-GAGE series
- Shape Rectangular
- Compliant with standard(s) cULus
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Operating mode NO (Normally Open) NC (Normally Closed)
- Ambient air temperature for operation -40...+65 °C
- Order code / Manufacturer SKU 801660
- Main function Sensor (Radar)
- Design time-of-flight system US / Canada Telecom-approved
- Degree of protection IP67
- Equivalent to Q240RAUSAF2LQ
- Primary brand Banner Engineering
- Functions Narrow-beam adjustable-field radar sensor green LED (power ON) yellow LED (output state)
- Sensing distance 3.5...100m
- Digital outputs 2 x digital outputs (PNP/NPN transistors)
- Emission frequency 24.075GHz...24.175GHz (ISM band)
- Sub-range name Q240R
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Material polycarbonate housing
- Protection functions Reverse polarity Short-circuit
- Power DC
- Power Supply 12-30 V dc
- Output Protection Protected against short circuit
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Wireless No
- Radar Beam Pattern (H x V °) 11 x 13
- Number of Pins 5
- PC Configurable No
- RS-422 No
- IO Link No
- Cert: US Yes
- Sensing Mode (Detailed) Time of Flight
- Primary Housing Material Polycarbonate
- Delay at Power-up (ms) 2000
- Min Operating Temperature (°C) -40
- RS-485 No
- Housing Style Rectangular
- Quick Disconnect Type M12 (Euro)
- Minimum Response Time (ms) 15
- Max Discrete (Switched) Output (mA) 150
- SSI No
- Operating Frequency 24 GHz
- Indicator LED(s)
- Vibration 10 Hz to 55 Hz 0.5 mm p-p amplitude per IEC 60068-2-6
- RS-232 No
- Sensing Beam Radar
- Connection Integral QD
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- PROFINET No
- Device Type Sensor
- Minimum Sensing Distance (mm) 3500
- Discrete (Switched) Outputs 2 NPN/PNP Configurable
- Power/Current Consumption (exclusive of load) < 85 mA
- Profibus No
- Sensing Mode (General) Proximity
- Max Sensing Distance (mm) 100000
- Mechanical Shock 30G 11 ms duration, half sine wave per IEC 60068-2-27
- Common Ethernet Protocol No
- 1-wire Serial Interface No
- Input/Output Discrete
- Max Measurement Range >50 m
- Adjustments Dip Switch
- Max Operating Temperature (°C) 65
- Feature: Chemical Resistant No
- Cert: Canada Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents Q240RA-US-AF2LQ Specs
