MQAC2-506 Banner Cordsets
Part#:MQAC2-506
Manufacturer:Banner
Alt. Part#:32713
Product Lifecycle:Active
In-stock parts: 3
Jun 19, 2025
Cordset: Single Ended MICRO; 5-pin Straight Female C Code; 2 m (6.56 ft) 5x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQAC2-506 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight136.0776 g
- Country Of OriginTW
- Number of Contacts 5
- Coupling Material/Color Nickel Plated Brass
- Secondary Connector Type Flying Leads
- Outside Cable Diameter (mm) 5.9
- Current Rating (A) 4.0
- Primary Number of Conductors 5
- Cordset Length (m) 2
- Maximum Temp. (°C) 105
- Voltage Rating (V) 250 V ac/dc
- Feature: Hazardous Area No
- Connector Body Material/Color PUR Black
- IP Rating IP67
- Primary Orientation Straight
- Shield/No Shield No Shield
- Primary Gender Female
- Cable Jacket Material PVC
- Minimum Temp. (°C) -40
- Oil/Grease Resistant No
- Number of Connectors 1
- Primary Coupling Method 1/2"-20 Dual Key
- Cable Jacket Color Black
- Primary AWG 22
- Trunk Length (m) No Trunk
- Primary Connector Type MICRO
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MQAC2-506 Description

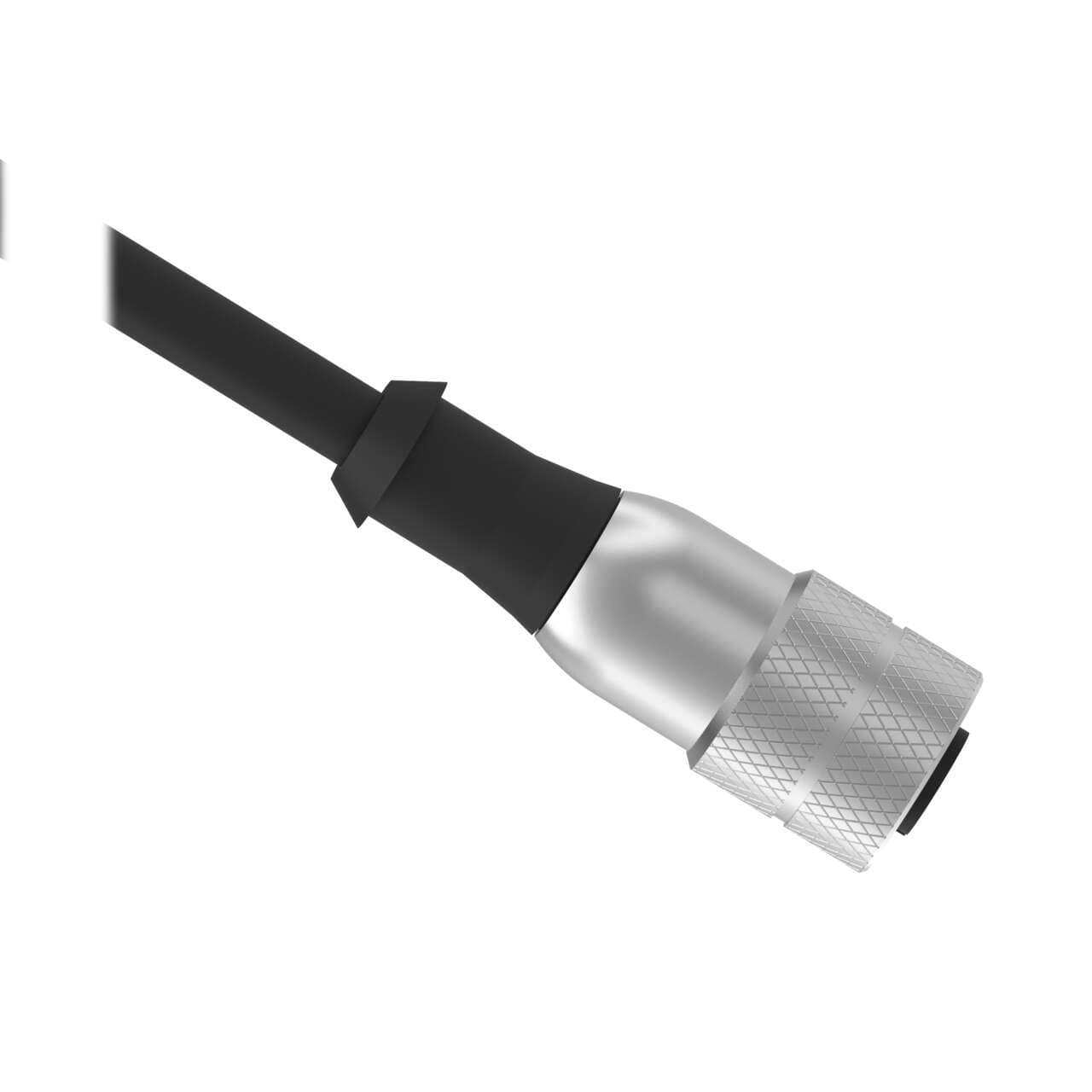

Banner Engineering MQAC2-506 is a straight cordset/cable designed for automation applications, featuring a 5-pin 1/2"-20UNF Micro-style female connector on one end and bare end flying leads on the other. It has a length of 2 meters (approximately 6.5 feet).
This item can ship within 24h!
1-year warranty
$45.36
Stock:
3
Select Qty:
$45.36
$45.36 each
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
