MQAC-430RA Banner Cordsets

Name: MQAC-430RA
Brand: Banner

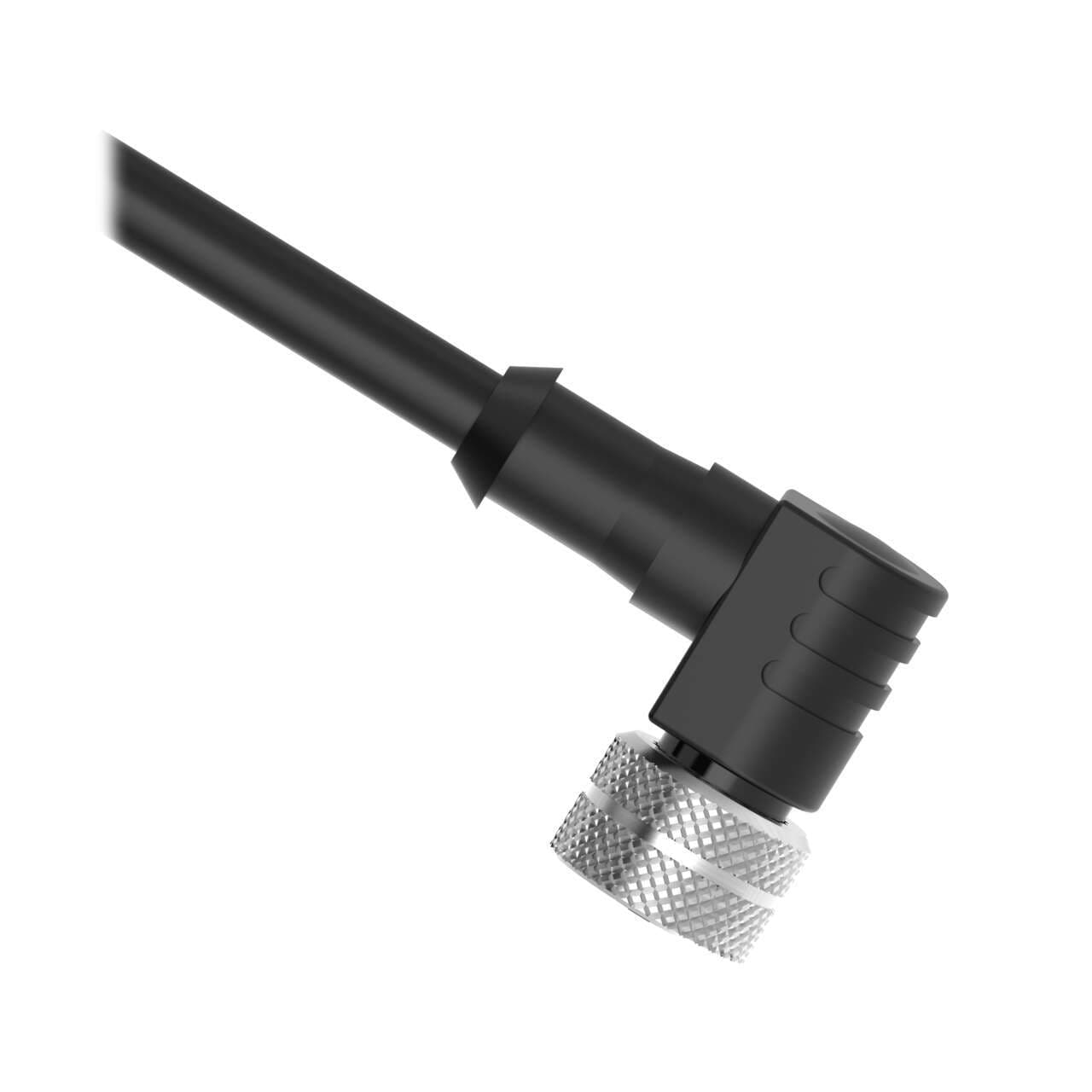

Banner MQAC-430RA Cordset: Single Ended MICRO; 4-pin Right Angle Female C Code; 9.14 m 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

Part#:MQAC-430RA

Manufacturer:Banner

Alt. Part#:44652

Product Lifecycle:Active

Get a quick Quote!

Cordset: Single Ended MICRO; 4-pin Right Angle Female C Code; 9.14 m 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQAC-430RA Banner price in the box on the right side or send a quick quote.

Product Details

Weight444.52016 g
Country Of OriginTW
Cordset Length (m)
9.14
Primary Coupling Method
1/2"-20 Dual Key
Trunk Length (m)
No Trunk
Primary Gender
Female
Cable Jacket Material
PVC
Minimum Temp. (°C)
-40
Feature: Hazardous Area
No
Outside Cable Diameter (mm)
5.7
Primary Connector Type
MICRO
Connector Body Material/Color
PUR Black
Current Rating (A)
4.0
Cable Jacket Color
Black
IP Rating
IP67
Number of Contacts
4
Coupling Material/Color
Nickel Plated Brass
Primary AWG
22
Number of Connectors
1
Voltage Rating (V)
250 V ac/dc

Oil/Grease Resistant

Shield/No Shield

No Shield

Primary Orientation

Right Angle

Maximum Temp. (°C)

105

Primary Number of Conductors

Secondary Connector Type

Flying Leads

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

MQAC-430RA Description

Banner Engineering MQAC-430RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 4-pin 1/2"-20 micro female angled connector and bare end flying leads. The cable has a diameter of 5.7mm and is encased in black sheathing made from PVC, ensuring durability and protection. The coupling nut is made from chrome-plated brass, enhancing the connector's durability. This model is designed to operate within an ambient air temperature range of -40 to +105 degrees Celsius, making it suitable for a wide range of environmental conditions. It offers a degree of protection rated at IP67, indicating its capability to withstand dust and temporary immersion in water. The MQAC-430RA has a length of 30ft (9m) and is rated for a voltage of 250Vac, making it suitable for various industrial applications requiring long-distance connections.
