MQAC-450 Banner Cordsets

Name: MQAC-450
Brand: Banner

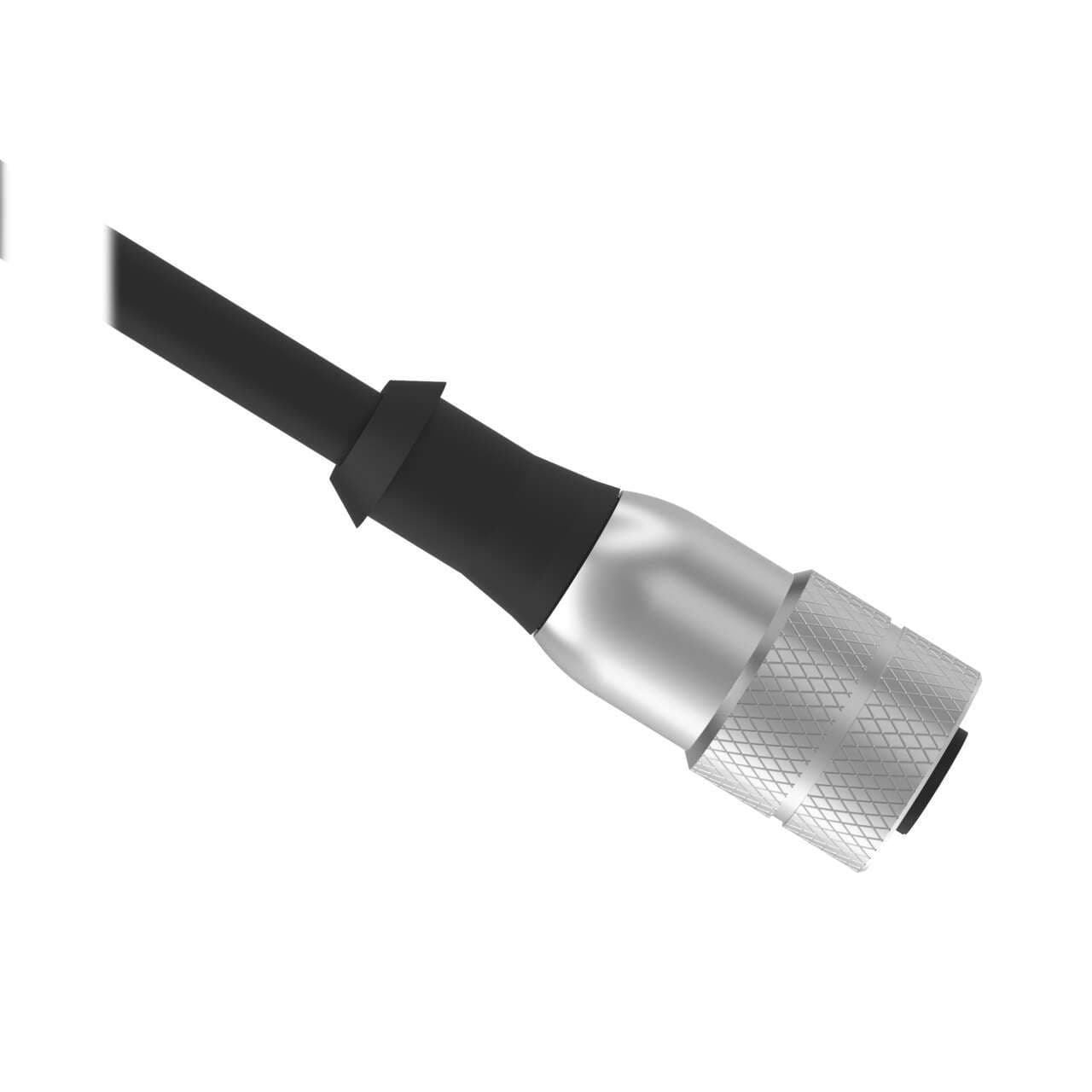

Banner MQAC-450 Cordset: Single Ended MICRO; 4-pin Straight Female C Code; 15.5 m 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

Part#:MQAC-450

Manufacturer:Banner

Alt. Part#:72218

Product Lifecycle:Active

Get a quick Quote!

Cordset: Single Ended MICRO; 4-pin Straight Female C Code; 15.5 m 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQAC-450 Banner price in the box on the right side or send a quick quote.

Product Details

Weight698.53168 g
Country Of OriginTW
Connector Body Material/Color
PUR Black
Current Rating (A)
4.0
Coupling Material/Color
Nickel Plated Brass
Secondary Connector Type
Flying Leads
Number of Contacts
4
Primary Gender
Female
Primary Connector Type
MICRO
Cable Jacket Material
PVC
Voltage Rating (V)
250 V ac/dc
Feature: Hazardous Area
No
Shield/No Shield
No Shield
Primary Coupling Method
1/2"-20 Dual Key
Cable Jacket Color
Black
Minimum Temp. (°C)
-40
Primary Number of Conductors
4
Cordset Length (m)
15.2
Primary Orientation
Straight
Trunk Length (m)
No Trunk

IP Rating

IP67

Outside Cable Diameter (mm)

5.7

Oil/Grease Resistant

Maximum Temp. (°C)

105

Primary AWG

Number of Connectors

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

MQAC-450 Description

Banner Engineering MQAC-450 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 4-pin 1/2"-20 micro female connector and bare end flying leads. The cable has a diameter of 5.7mm and is encased in black sheathing made from PVC, ensuring durability and protection against environmental factors. The chrome-plated brass coupling nut enhances the cable's robustness. With an ambient air temperature operation range of -40 to +105°C and a degree of protection rated at IP67, this cable is suitable for challenging conditions. It has a length of 50ft (15m) and is rated for 250Vac, making it versatile for a wide range of electrical connections.
