MQAC-406 Banner Cordsets

Name: MQAC-406
Brand: Banner

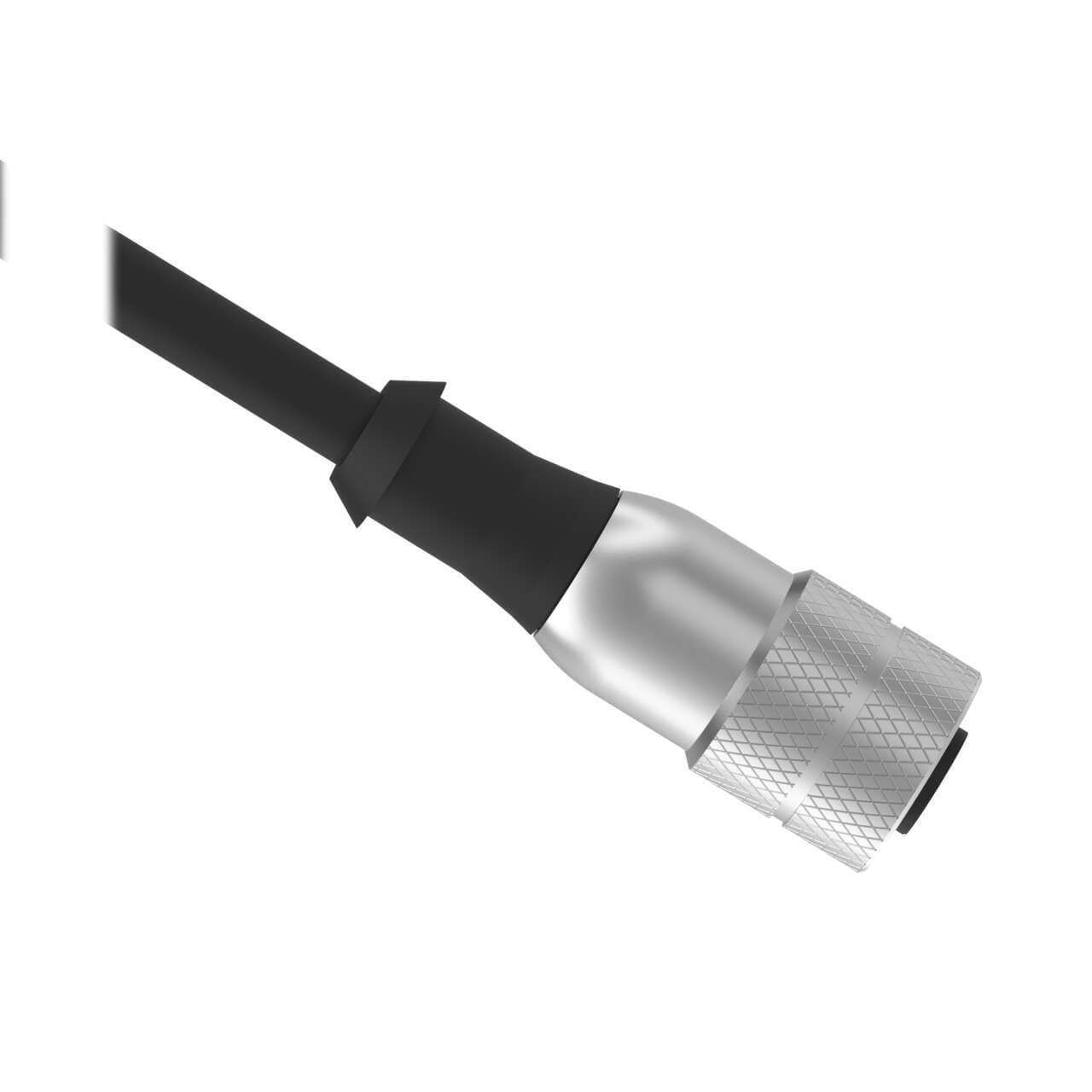

Banner MQAC-406 Cordset: Single Ended MICRO; 4-pin Straight Female C Code; 2 m (6.56 ft) 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

Part#:MQAC-406

Manufacturer:Banner

Alt. Part#:45138

Product Lifecycle:Active

Get a quick Quote!

Cordset: Single Ended MICRO; 4-pin Straight Female C Code; 2 m (6.56 ft) 4x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQAC-406 Banner price in the box on the right side or send a quick quote.

Product Details

Weight99.79024 g
Country Of OriginTW
Maximum Temp. (°C)
105
Primary Number of Conductors
4
Trunk Length (m)
No Trunk
IP Rating
IP67
Connector Body Material/Color
PUR Black
Primary Coupling Method
1/2"-20 Dual Key
Number of Connectors
1
Voltage Rating (V)
250 V ac/dc
Feature: Hazardous Area
No
Outside Cable Diameter (mm)
5.7
Primary Gender
Female
Number of Contacts
4
Coupling Material/Color
Nickel Plated Brass
Primary AWG
22
Cordset Length (m)
1.83
Minimum Temp. (°C)
-40
Cable Jacket Material
PVC
Current Rating (A)
4.0

Secondary Connector Type

Flying Leads

Shield/No Shield

No Shield

Primary Orientation

Straight

Cable Jacket Color

Black

Primary Connector Type

MICRO

Oil/Grease Resistant

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

MQAC-406 Description

Banner Engineering MQAC-406 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.7mm diameter PVC cable and a chrome-plated brass coupling nut. This cable is equipped with a 4-pin 1/2"-20 micro female connector and bare end flying leads, ensuring compatibility with a wide range of devices. The MQAC-406 operates effectively within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. The black sheathing enhances its visual integration into various setups. With a length of 6.5ft (2m) and a rated voltage of 250Vac, this cable meets the requirements for a diverse array of electrical connections.
