K90FDLRPQ Banner Signal Beacons

Banner K90FDLRPQ K90F Series EZ-LIGHT; 1-Color Daylight Visible Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Red; 5-pin M12 Integral QD
Banner

Part#:K90FDLRPQ

Manufacturer:Banner

Alt. Part#:96137

Product Lifecycle:Active

Get a quick Quote!

K90F Series EZ-LIGHT; 1-Color Daylight Visible Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Red; 5-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K90FDLRPQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight217.72416 g
  • Country Of OriginMX
  • Mounting Thread
    M30 x 1.5
  • Product Size (mm)
    90
  • Number of Input Pins/Conductors
    5
  • Primary Window Material
    Polycarbonate Clear
  • Housing Style
    Base Mount - Flat Window
  • Color 1 - Wavelength/Color Temp/Coordinates
    625 nm
  • Lumens Color 1
    83.0
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Indication
    Yes
  • Max Current Color (mA)
    475
  • Min Op. Temperature (°C)
    -40
  • Modbus RTU
    No
  • Cable Length (m)
    0.15
  • Connection
    Integral QD
  • Physical Dimensions (LxWxH or DxH mm)
    90.0 x 42.0
  • Max Op. Temperature (°C)
    50
  • Power
    DC
  • Animation Option 1
    Solid On
  • Wire Selectable Function
    Flashing
  • Feature: Hazardous Area
    No
  • Number of Colors / Segments
    1
  • Input Type
    PNP
  • Wireless
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type
    M12 (Euro)
  • Max Input Response Time (ms)
    75
  • Power Source
    DC
  • Color Option 1
    Red
  • Environmental Rating
    IP67
  • IO Link
    No
  • Primary Housing Material
    Polycarbonate
  • Color Technology
    Standard LED
  • Supply Voltage
    12-30 V dc
  • Feature: Audible
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Indication Intensity
    High Brightness & Daylight Visible
  • Feature: Chemical Resistant
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

K90FDLRPQ Description

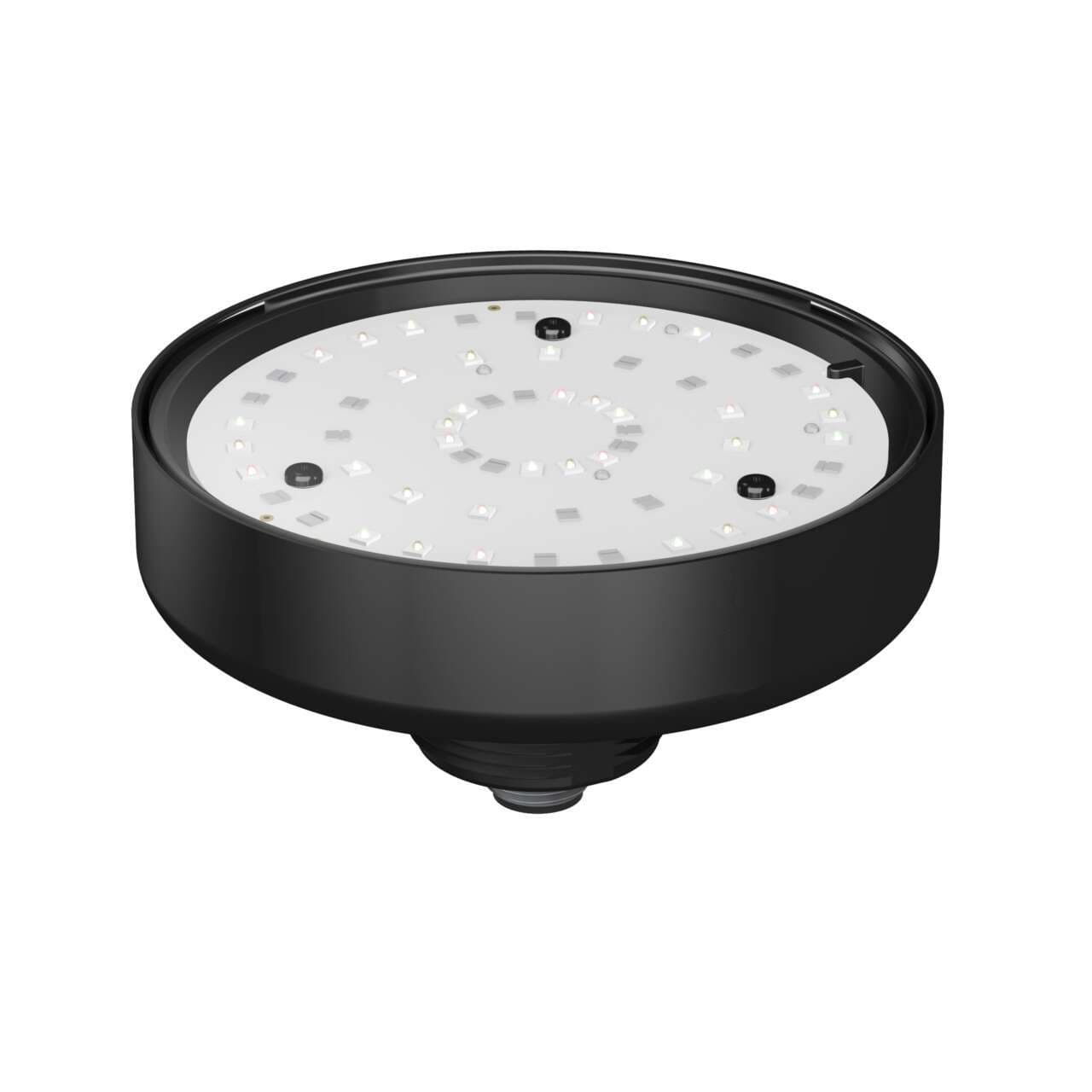

Banner Engineering K90FDLRPQ is a pilot light from the EZ-LIGHT series featuring a flat LED pilot light indicator with flashing input control. It is designed with daylight-visible 3-color R/G/Y color pattern LED illumination, encased in a black housing with a round flat window. The window and base are made from clear Polycarbonate (PC), ensuring durability. This part is pre-equipped with a 5-pin M12 Euro-style QD connector for easy connection. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc being nominal. The K90FDLRPQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread, suitable for a 90mm diameter light area. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C. With a degree of protection rated at IP67, NEMA 4X, and NEMA 13, it is well-protected against various environmental conditions. The current consumption is 475mA, and it features 3 x digital inputs (12-30Vdc; PNP) for color control.

Related documents K90FDLRPQ Specs

K90FDLRPQ 188929.pdf
