K90FDLGRN Banner Electronic Components
Part#:K90FDLGRN
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

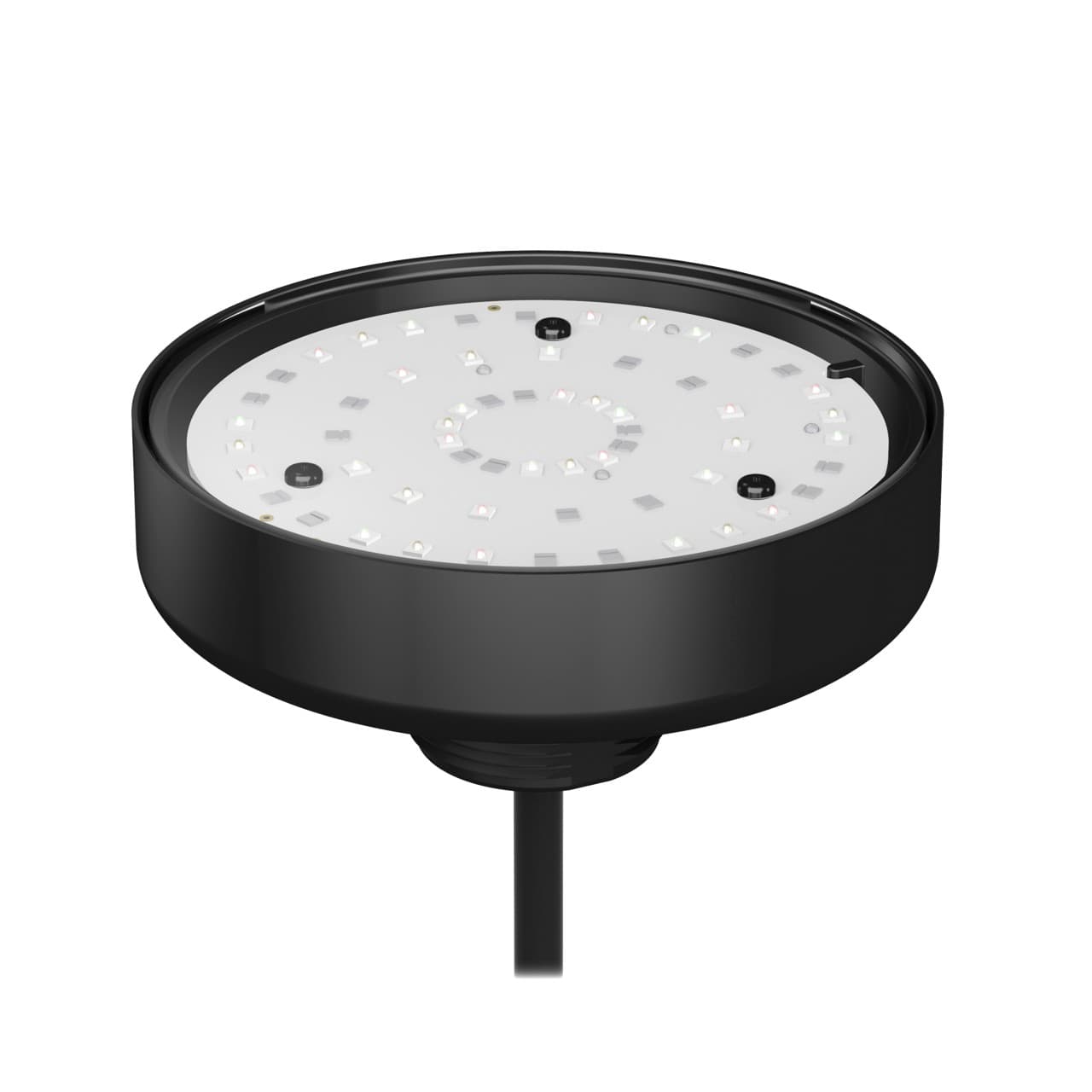

Banner Engineering K90FDLGRN is a pilot light from the EZ-LIGHT series featuring a flat LED pilot light indicator with flashing input control. It is designed with daylight-visible 1-color green LED illumination housed in a black casing. The round flat window shape is made from clear Polycarbonate (PC), with a base also constructed from Polycarbonate (PC). This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal 24Vdc, and can be mounted on the surface, base, or pole flush within a 30mm hole using an M30 thread. The light area has a diameter of 90mm. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C. The K90FDLGRN offers a degree of protection rated at IP67, NEMA 4X, and NEMA 13, with a current consumption of 475mA. It also features 1 x digital input (12-30Vdc; PNP) for color control.
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90FDLGRN Banner price in the box on the right side or send a quick quote.
Product Details
- Indication Yes
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 42.0
- IO Link No
- Lumens Color 2 83.0
- Environmental Rating IP67
- Multi-Color Device Single Color On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- NEMA Type and UL Type Rating NEMA 4X, 13
- Feature: Quick Disconnect No
- Power Source DC
- Color Option 1 Green
- Input Type NPN
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Connection Cable
- Color Option 2 Red
- Primary Window Material Polycarbonate Clear
- Number of Colors / Segments 2
- Number of Input Pins/Conductors 5
- Indication Intensity High Brightness & Daylight Visible
- Mounting Thread M30 x 1.5
- Lumens Color 1 175
- Max Input Response Time (ms) 75
- Min Op. Temperature (°C) -40
- Wireless No
- Product Size (mm) 90
- Supply Voltage 12-30 V dc
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Power DC
- Animation Option 1 Solid On
- Max Current Color (mA) 475
- Feature: Hazardous Area No
- Housing Style Base Mount - Flat Window
- Color Technology Standard LED
- Wire Selectable Function Flashing
- Feature: Audible No
