K90FDLGRPQ Banner Signal Beacons
Part#:K90FDLGRPQ
Manufacturer:Banner
Alt. Part#:96152
Product Lifecycle:Active
Get a quick Quote!
K90F Series EZ-LIGHT; 2-Color Daylight Visible Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Green Red; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90FDLGRPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginMX
- Housing Style Base Mount - Flat Window
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- Wireless No
- Cable Length (m) 0.15
- Power DC
- Number of Colors / Segments 2
- Quick Disconnect Type M12 (Euro)
- Max Op. Temperature (°C) 50
- Feature: Quick Disconnect Yes
- Product Size (mm) 90
- Max Current Color (mA) 475
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Wire Selectable Function Flashing
- Number of Input Pins/Conductors 5
- NEMA Type and UL Type Rating NEMA 4X, 13
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Animation Option 1 Solid On
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Primary Window Material Polycarbonate Clear
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 42.0
- Indication Intensity High Brightness & Daylight Visible
- Multi-Color Device Single Color On
- Mounting Thread M30 x 1.5
- Indication Yes
- Connection Integral QD
- Lumens Color 2 83.0
- Input Type PNP
- Feature: Hazardous Area No
- Color Technology Standard LED
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Max Input Response Time (ms) 75
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Lumens Color 1 175
- Color Option 2 Red
- Environmental Rating IP67
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K90FDLGRPQ Description

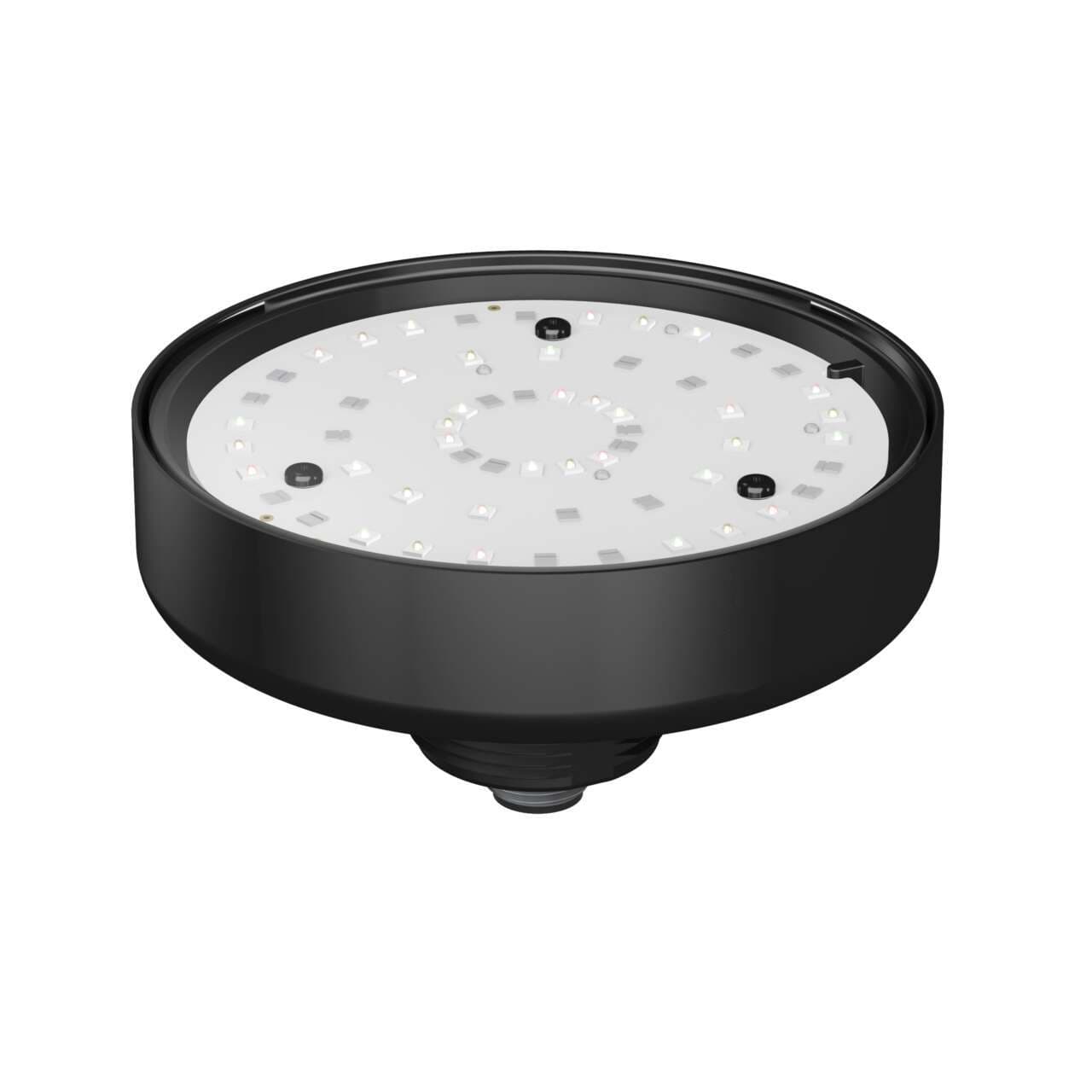

Banner Engineering K90FDLGRPQ is a pilot light from the EZ-LIGHT series designed with a flat LED pilot light indicator featuring flashing input control. It offers daylight-visible 2-color G/R color pattern LED illumination housed in a black casing. The round flat window shape is constructed from clear Polycarbonate (PC) with a Polycarbonate (PC) base for durability. This unit is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for connectivity. It operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.) and can be mounted on the surface, base, or pole flush with a 30mm hole M30 thread. The light area has a diameter of 90mm, and it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It boasts a degree of protection rated at IP67, NEMA 4X, and NEMA 13, with a current consumption of 475mA. Additionally, it features 2 x digital inputs (12-30Vdc; PNP) for color control.
Related documents K90FDLGRPQ Specs
