K90FDLBGYRPQP Banner Electronic Components

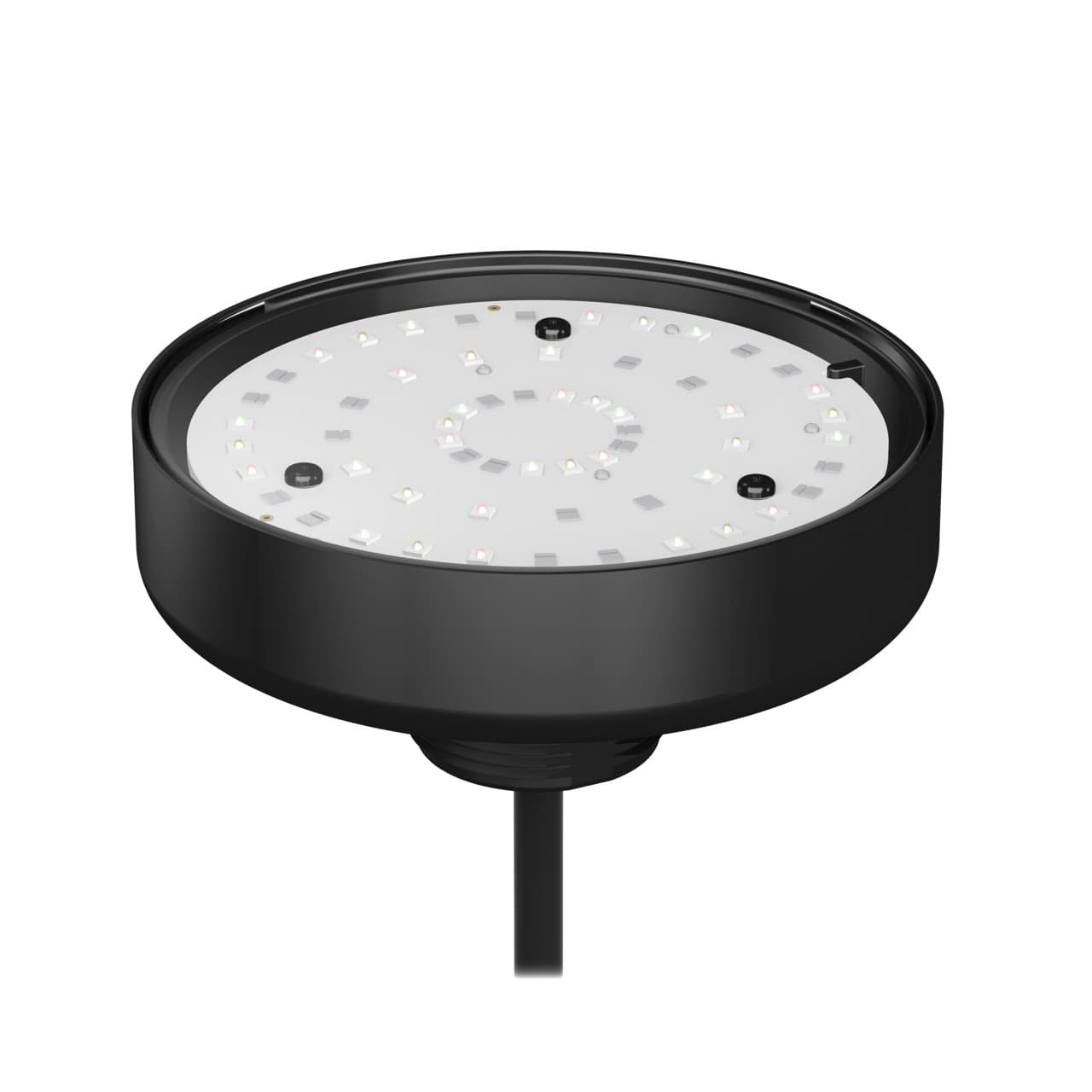

Banner K90FDLBGYRPQP K90F Series EZ-LIGHT; 4-Color Daylight Visible Indicator, Voltage: 12-30 V dc; Environmental Rating: IP67, Input: PNP; Colors: Blue Green Yellow Red, Euro 8-pin 150 mm (6 in) PVC Pigtail
Banner

Part#:K90FDLBGYRPQP

Manufacturer:Banner

Product Lifecycle:Active

Get a quick Quote!

K90F Series EZ-LIGHT; 4-Color Daylight Visible Indicator, Voltage: 12-30 V dc; Environmental Rating: IP67, Input: PNP; Colors: Blue Green Yellow Red, Euro 8-pin 150 mm (6 in) PVC Pigtail

About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the K90FDLBGYRPQP Banner price in the box on the right side or send a quick quote.

Product Details

  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Mounting Thread
    M30 x 1.5
  • Max Current Color (mA)
    475
  • Min Op. Temperature (°C)
    -40
  • Wireless
    No
  • Color 4 - Wavelength/Color Temp/Coordinates
    625 nm
  • Environmental Rating
    IP67
  • Modbus RTU
    No
  • Primary Housing Material
    Polycarbonate
  • Lumens Color 2
    175
  • Number of Input Pins/Conductors
    8
  • IO Link
    No
  • Power Source
    DC
  • Lumens Color 4
    83.0
  • Input Type
    PNP
  • Multi-Color Device
    Single Color On
  • Power
    DC
  • Connection
    Pigtail QD
  • Color 3 - Wavelength/Color Temp/Coordinates
    590 nm
  • Max Op. Temperature (°C)
    50
  • Indication Intensity
    High Brightness & Daylight Visible
  • Color Option 3
    Yellow
  • Supply Voltage
    12-30 V dc
  • Feature: Quick Disconnect
    Yes
  • Housing Style
    Base Mount - Flat Window
  • Product Size (mm)
    90
  • Lumens Color 3
    43.0
  • Max Input Response Time (ms)
    75
  • Feature: Hazardous Area
    No
  • Quick Disconnect Type
    M12 (Euro)
  • Wire Selectable Function
    Flashing
  • Primary Window Material
    Polycarbonate Clear
  • Pro-Editor Compatible (Discrete)
    No
  • Color Technology
    Standard LED
  • Color 2 - Wavelength/Color Temp/Coordinates
    525 nm
  • Physical Dimensions (LxWxH or DxH mm)
    90.0 x 42.0
  • Feature: Audible
    No
  • Color Option 2
    Green
  • Color Option 4
    Red
  • NEMA Type and UL Type Rating
    NEMA 4X, 13
  • Feature: Chemical Resistant
    No
  • Color Option 1
    Blue
  • Color 1 - Wavelength/Color Temp/Coordinates
    470 nm
  • Indication
    Yes
  • Number of Colors / Segments
    4
  • Lumens Color 1
    55.0
  • Cable Length (m)
    2
  • Animation Option 1
    Solid On

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

Related documents K90FDLBGYRPQP Specs

K90FDLBGYRPQP K90FDL Daylight Visible -- Datasheet-1630952420764.pdf

1-year warranty

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

By purchasing this item, you agree to the Terms & Conditions

Quotebeam is NOT an authorized distributor of Banner

Shipping and Delivery Worldwide

calculate costs and time

Secure Payment Processing

with money back guarantee

1 year warranty

on all parts

Responsive Customer Support

we're here to help!

Need more details?

Feel free to chat with us or check our FAQ

Banner Disclaimer:

The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

Relevant products

K90FDLGRN Part Image. Manufactured by Banner.

K90FDLGRN

Verified stock: 0

Banner Engineering K90FDLGRN is a pilot light from the EZ-LIGHT series featuring a flat LED pilot light indicator with flashing input control. It is designed with daylight-visible 1-color green LED illumination housed in a black casing. The round flat window shape is made from clear Polycarbonate (PC), with a base also constructed from Polycarbonate (PC). This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with a nominal 24Vdc, and can be mounted on the surface, base, or pole flush within a 30mm hole using an M30 thread. The light area has a diameter of 90mm. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C. The K90FDLGRN offers a degree of protection rated at IP67, NEMA 4X, and NEMA 13, with a current consumption of 475mA. It also features 1 x digital input (12-30Vdc; PNP) for color control.
