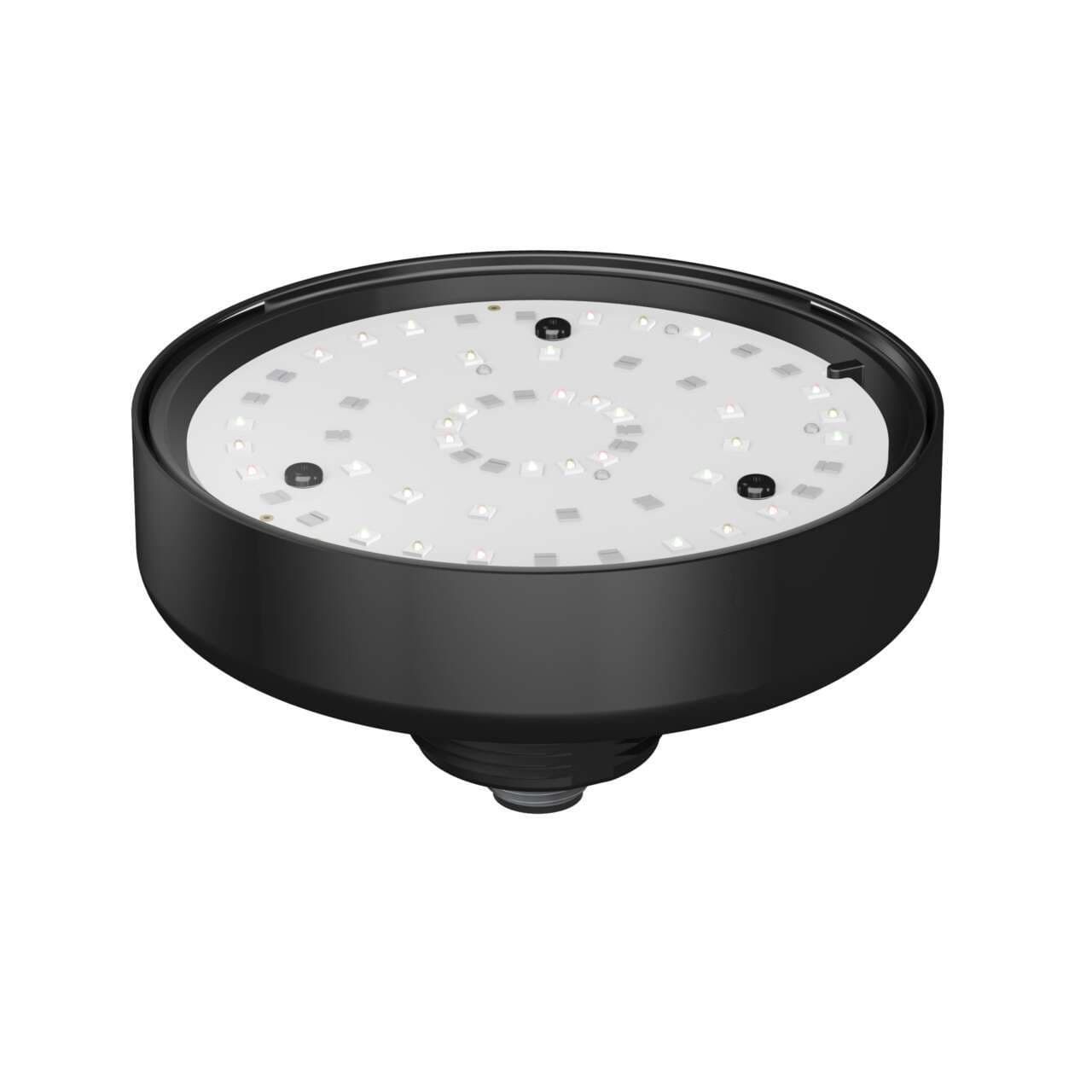

K90FDLBPQ Banner Signal Beacons
Part#:K90FDLBPQ
Manufacturer:Banner
Alt. Part#:96140
Product Lifecycle:Active
Get a quick Quote!
K90F Series EZ-LIGHT; 1-Color Daylight Visible Indicator; Voltage: 12-30 V dc; Environmental Rating: IP67; Input: PNP; Colors: Blue; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Beacons that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K90FDLBPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight217.72416 g
- Country Of OriginMX
- Power Source DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power DC
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Animation Option 1 Solid On
- Connection Integral QD
- Color 1 - Wavelength/Color Temp/Coordinates 470 nm
- Quick Disconnect Type M12 (Euro)
- Housing Style Base Mount - Flat Window
- Indication Yes
- Product Size (mm) 90
- Mounting Thread M30 x 1.5
- Color Option 1 Blue
- Max Op. Temperature (°C) 50
- Wireless No
- Lumens Color 1 55.0
- Min Op. Temperature (°C) -40
- Number of Input Pins/Conductors 5
- Feature: Audible No
- Wire Selectable Function Flashing
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Supply Voltage 12-30 V dc
- Primary Window Material Polycarbonate Clear
- Environmental Rating IP67
- Feature: Chemical Resistant No
- Physical Dimensions (LxWxH or DxH mm) 90.0 x 42.0
- Indication Intensity High Brightness & Daylight Visible
- Max Input Response Time (ms) 75
- Feature: Quick Disconnect Yes
- Input Type PNP
- IO Link No
- NEMA Type and UL Type Rating NEMA 4X, 13
- Modbus RTU No
- Cable Length (m) 0.15
- Max Current Color (mA) 475
- Number of Colors / Segments 1
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K90FDLBPQ Description
Banner Engineering K90FDLBPQ is a pilot light from the EZ-LIGHT series designed with a flat LED pilot light indicator featuring flashing input control. It showcases daylight-visible 3-color B/Y/W (Blue/Yellow/White) LED illumination within a black housing. The round flat window shape is constructed from clear Polycarbonate (PC) for both the window and the base. This unit is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. The K90FDLBPQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread, and has a 90mm diameter light area. It is designed to operate within an ambient air temperature range of -40°C to +50°C. This pilot light is protected to IP67, NEMA 4X, and NEMA 13 standards, ensuring durability in various environments. It has a current consumption of 475mA and includes 3 x digital inputs (12-30Vdc; PNP) for color control.
Related documents K90FDLBPQ Specs
1-year warranty
