DX80N9X6S-PM8-AN Banner I/O Modules

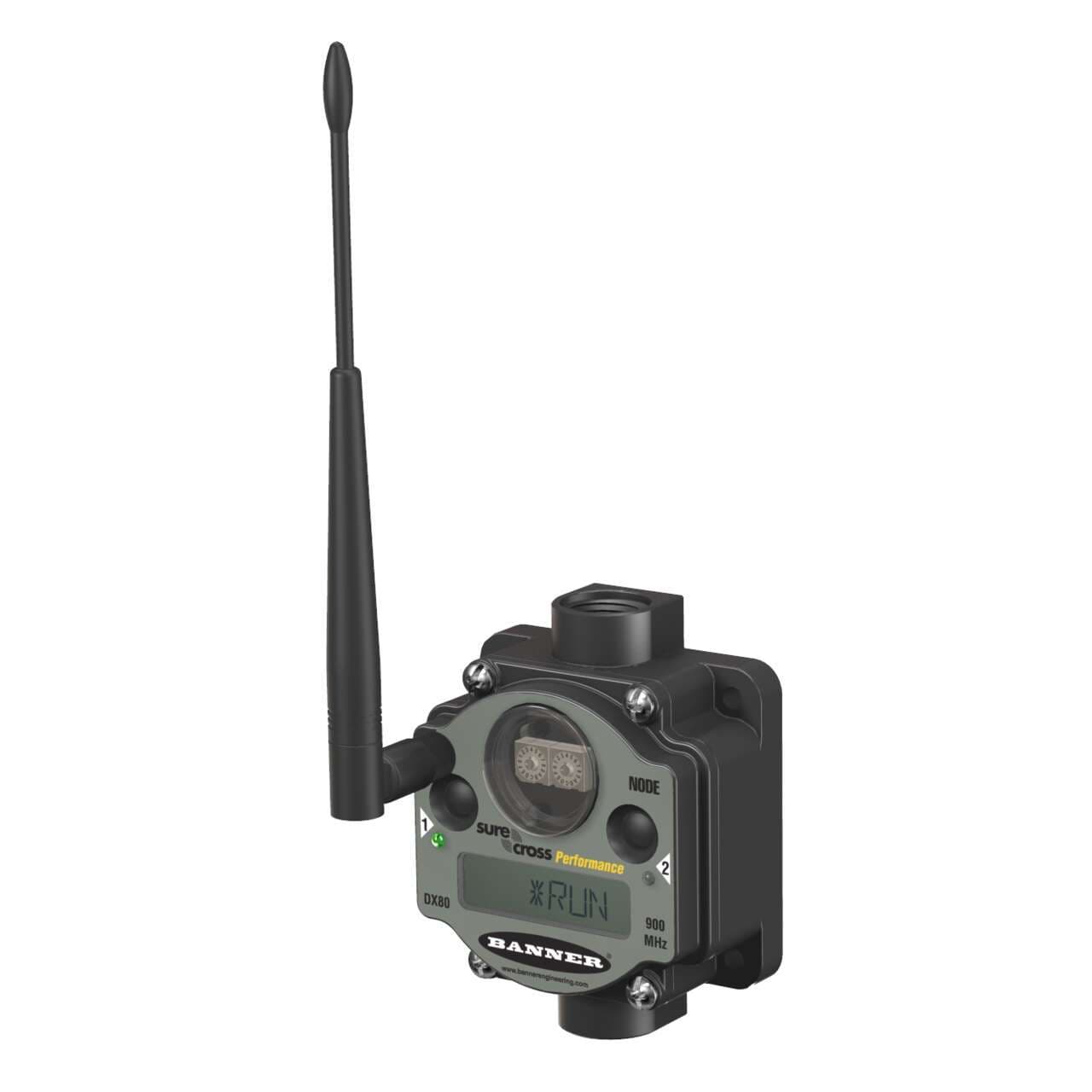

Banner DX80N9X6S-PM8-AN PM Series Node - LCD for Diagnostics; 900 MHz IP67, NEMA 6; Inputs: Six Sourcing/PNP Discrete; Outputs: Six Sourcing/PNP Discrete; Certified for Australia and New Zealand
Banner

Part#:DX80N9X6S-PM8-AN

Manufacturer:Banner

Alt. Part#:802380

Product Lifecycle:Active

Get a quick Quote!

PM Series Node - LCD for Diagnostics; 900 MHz IP67, NEMA 6; Inputs: Six Sourcing/PNP Discrete; Outputs: Six Sourcing/PNP Discrete; Certified for Australia and New Zealand

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80N9X6S-PM8-AN Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight453.592 g
  • Country Of OriginUS
  • Discrete Inputs
    Yes
  • LCD Display
    Yes
  • EtherNet/IP
    No
  • Input/Output
    Discrete
  • RS-232
    No
  • Device Type
    Node
  • Max Temp Operating Conditions
    85
  • Feature: Hazardous Area
    No
  • Wireless Radio Frequency
    900 MHz
  • Discrete Outputs
    Yes
  • Min Temp Operating Conditions
    -40
  • Tree Topology
    No
  • 1-wire Serial Interface
    No
  • Input Details
    6 PNP Discrete
  • Point-to-Multipoint Topology
    Yes
  • Star Topology
    Yes
  • Output Details
    6 PNP Discrete
  • Environmental Rating (IP)
    IP20
  • Modbus RTU
    No
  • Wireless
    Yes
  • Power Supply
    10-30 V dc
  • Environmental Rating (NEMA)
    NEMA 1
  • PROFINET
    No
  • Housing Style
    Enclosed Terminals
  • Relative Humidity
    95%
  • RS-485
    No
  • Power
    DC
  • Point-to-Point Topology
    Yes
  • Modbus/TCP
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

DX80N9X6S-PM8-AN Description

Banner Engineering DX80N9X6S-PM8-AN is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. The unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. With dimensions of H47.3mm x W106.1mm x D80.9mm, this rectangular-shaped RTU includes 6 digital outputs (30Vdc; Sourcing; 100mA) and 6 digital inputs (30Vdc 3mA; Sourcing). It is part of the PM series, designed for wire replacement, and utilizes Frequency Hopping Spread Spectrum (FHSS) technology for reliable communication. The design includes I.O. mapping, 2 buttons, and 2 bi-color LEDs, tailored for use in Australia and New Zealand. Connection is facilitated through a wiring chamber with screw-clamp connections and 2 x 1/2" NPT threaded cable accesses, alongside an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on a 900MHz ISM band with 1W power, capable of achieving a maximum transmission distance of 9.6km at nominal emission power.

Related documents DX80N9X6S-PM8-AN Specs

DX80N9X6S-PM8-AN 173570.pdf
