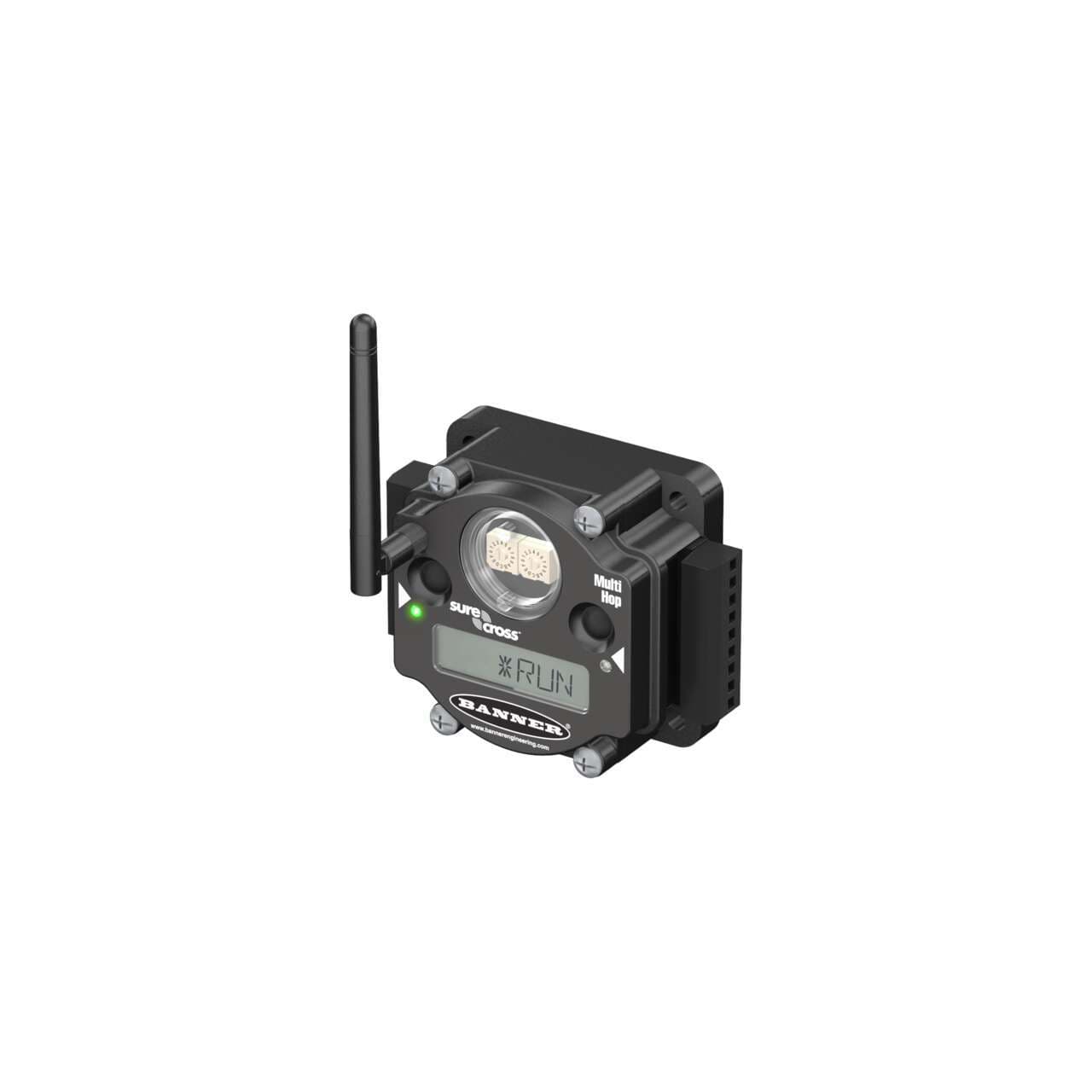

DX80DR2M-H5C Banner Network Gateways
Part#:DX80DR2M-H5C
Manufacturer:Banner
Alt. Part#:18784
Product Lifecycle:Active
In-stock parts: 1
Jun 18, 2025
MultiHop 2.4 GHz 65 mW IP20; FlexPower External Antenna RS485; Inputs: 4 Discrete 4 Analog; Outputs: 2 Discrete; External Terminals
About the manufacturer: Banner is one of the manufacturers that offers Network Gateways that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80DR2M-H5C Banner price in the box on the right side or send a quick quote.
Product Details
- Weight589.6696 g
- Country Of OriginUS
- Housing Style External Terminals
- Power Supply 10-30 V dc or 3.6-5.5 V dc low power option
- Min Operating Temperature ( °C) -20
- Wireless Yes
- Discrete Outputs Yes
- Max Temp Operating Conditions 80
- Feature: Hazardous Area Yes
- 1-wire Serial Interface No
- Discrete Inputs Yes
- Min Temp Operating Conditions -20
- Tree Topology Yes
- RS-485 Yes
- Analog Inputs Yes
- LCD Display Yes
- EtherNet/IP No
- Wireless Radio Frequency 2.4 GHz
- Output Details 2 NMOS Discrete
- Ships With Battery No
- Modbus RTU Yes
- Device Type Multihop Data Radio
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Point-to-Multipoint Topology Yes
- Input/Output Analog & Discrete
- Environmental Rating (NEMA) NEMA 1
- Relative Humidity 95%
- Modbus/TCP No
- Power Flex Power
- Environmental Rating (IP) IP20
- Point-to-Point Topology Yes
- Input Details 4 Sinking Discrete, 4 0-20 mA Analog
- Max Operating Temperature ( °C) 80
- Star Topology Yes
- RS-232 No
- PROFINET No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80DR2M-H5C Description
Banner Engineering DX80DR2M-H5C is a Gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. The dimensions of this rectangular-shaped gateway are H44.5mm x W103.3mm x D80.1mm. It features 2 digital outputs (30Vdc; NMOS; 1A), 4 analog inputs (0-20mA), and 4 digital inputs (30Vdc 3mA; NPN). This part is equipped with MultiHop flexpower data radio functionality, falls under the MultiHop Modbus IO data radios sub-range, and is designed with 2 buttons, 2 bi-color LEDs for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector. The supply voltage requirement is 10-30Vdc (12Vdc-24Vdc nom.), and it supports RS-485 Modbus RTU communication protocol. Operating on a frequency of 2.4GHz ISM band 65mW, it can achieve a maximum transmission distance of 3.2km at nominal emission power.
Related documents DX80DR2M-H5C Specs
This item can ship within 24h!
1-year warranty
$767.88
Stock:
1
Select Qty:
$767.88
$767.88 each
