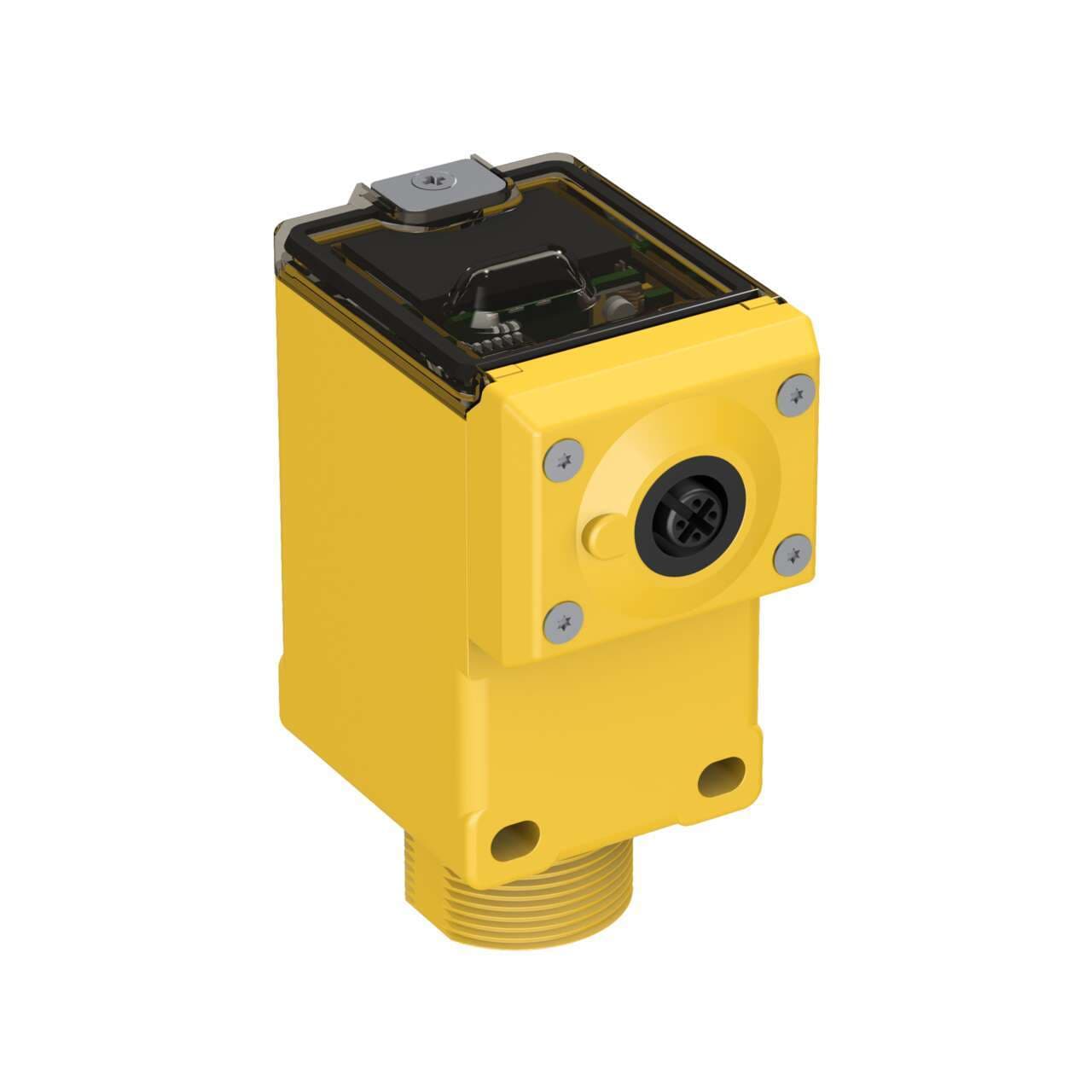

DX80N9Q45RD Banner Proximity Sensors
Part#:DX80N9Q45RD
Manufacturer:Banner
Alt. Part#:95678
Product Lifecycle:Active
Get a quick Quote!
Wireless Q45 Remote Device Node; Dry Contact or Namur Inputs 900 MHz 1 W; Female M12 Connector
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N9Q45RD Banner price in the box on the right side or send a quick quote.
Product Details
- Weight249.4756 g
- Country Of OriginUS
- Star Topology Yes
- Power Supply 2 AA Batteries
- Point-to-Multipoint Topology Yes
- Modbus RTU No
- Device Type Node
- Power Battery
- Environmental Rating (IP) IP67
- Discrete Inputs Yes
- Housing Style Integrated Battery
- Input/Output Discrete
- Max Temp Operating Conditions 70
- Environmental Rating (NEMA) NEMA 6P
- Max Operating Temperature ( °C) 70
- Relative Humidity 90% at 50° C
- Ships With Battery Yes
- Min Operating Temperature ( °C) -40
- Point-to-Point Topology Yes
- Input Details Dry contact, NAMUR Proximity Sensors
- Min Temp Operating Conditions -40
- Wireless Yes
- Feature: Hazardous Area No
- Wireless Radio Frequency 900 MHz
- EtherNet/IP No
- 1-wire Serial Interface No
- RS-232 No
- RS-485 No
- Tree Topology No
- Modbus/TCP No
- PROFINET No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N9Q45RD Description
Banner Engineering DX80N9Q45RD is a Remote Terminal Unit (RTU) from the SureCross Q45 series, designed with an M30 thread mounting mode. It features a moulded reinforced thermoplastic polyester housing with an o-ring sealed transparent cover, a moulded acrylic lens, and stainless steel hardware. This unit operates within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6P. Its dimensions are H97.1mm x W44.5mm x D66.5mm. The DX80N9Q45RD provides a visual position indicator through red and green LEDs for radio status and an amber LED for discrete input. It operates on a 900 MHz transmission frequency with FHSS (Frequency Hopping Spread Spectrum) technology, ensuring a reliable connection. The device has 2 x digital inputs (2 x dry-contacts; can be used as 1 x NAMUR input) and utilizes a 5-pin M12 female connector for its connection type. It is powered by a 3.6Vdc internal battery and is capable of a maximum transmission distance of 3.2km at nominal emission power. The housing is yellow, and it operates within the 900MHz ISM band at 1W frequency.
Related documents DX80N9Q45RD Specs
