DX80N9Q45THA Banner Proximity Sensors
Part#:DX80N9Q45THA
Manufacturer:Banner
Alt. Part#:807032
Product Lifecycle:Active
In-stock parts: 3
Jun 18, 2025
Wireless Q45 900 MHz; with Integrated Temperature and Humidity
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N9Q45THA Banner price in the box on the right side or send a quick quote.
Product Details
- Weight362.8736 g
- Country Of OriginUS
- Device Type Sensor and Node
- Relative Humidity 90% at 50° C
- PROFINET No
- Power Supply 2 AA Batteries
- Point-to-Point Topology Yes
- Wireless Yes
- Input/Output Serial
- Feature: Hazardous Area No
- Wireless Radio Frequency 900 MHz
- Power Battery
- Min Temp Operating Conditions -40
- Application: Temperature Input Yes
- 1-wire Serial Interface Yes
- Environmental Rating (IP) IP67
- Star Topology Yes
- Modbus RTU No
- Max Temp Operating Conditions 70
- Ships With Battery Yes
- EtherNet/IP No
- Housing Style Integrated Battery
- Application: Relative Humidity Input Yes
- Modbus/TCP No
- Input Details Temperature/Humidity
- Point-to-Multipoint Topology Yes
- RS-232 No
- Environmental Rating (NEMA) NEMA 6P
- Tree Topology No
- RS-485 No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N9Q45THA Description

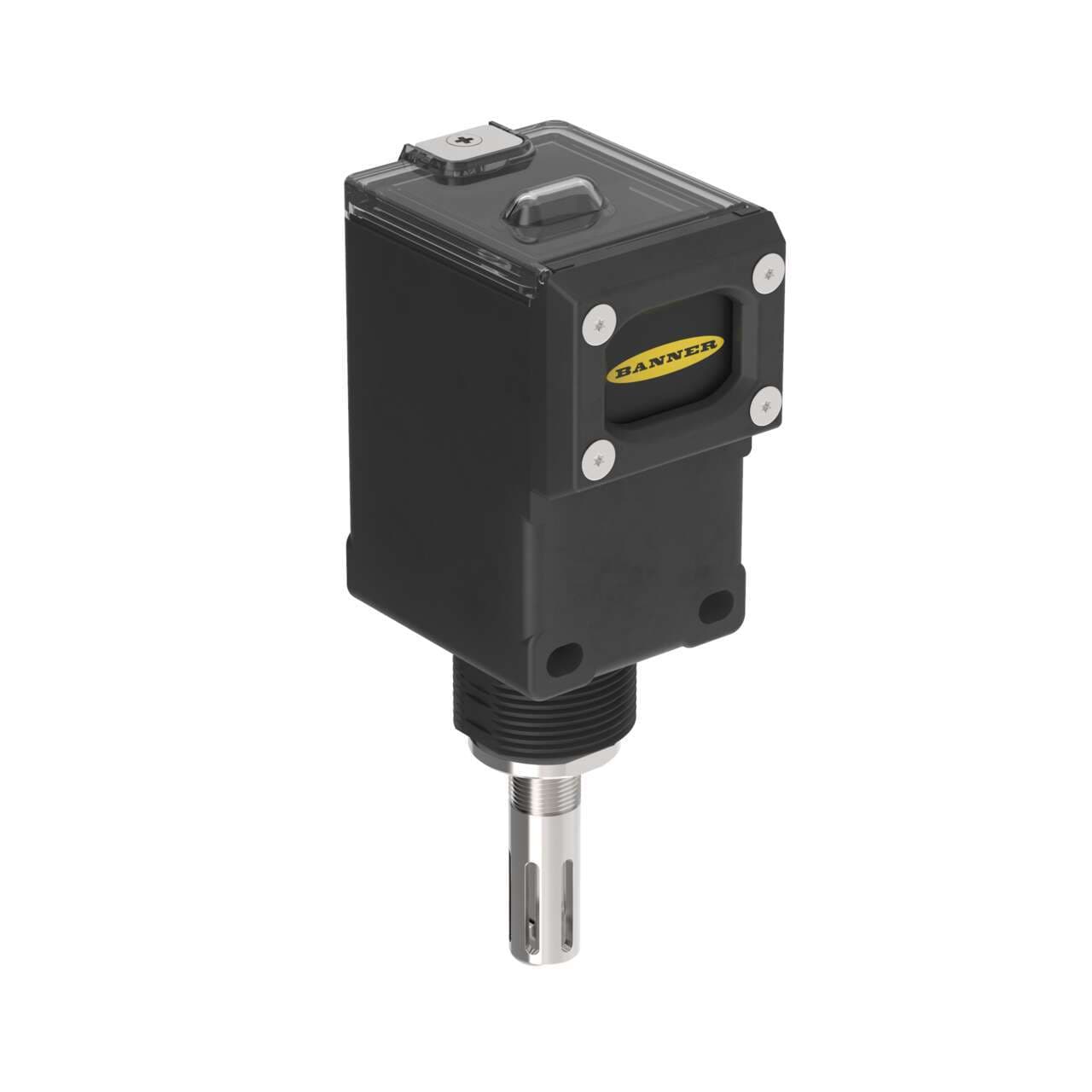

Banner Engineering DX80N9Q45THA is a Remote Terminal Unit (RTU) designed for predictive maintenance within the SureCross Q45 all-in-one series. It features a moulded reinforced thermoplastic polyester housing with an o-ring sealed transparent polycarbonate cover, a moulded acrylic lens, and stainless steel hardware. This unit operates within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67 NEMA 6P. The dimensions of this rectangular-shaped RTU are H148.8mm x W44.5mm x D58.6mm. It is equipped with a visual position indicator through red/green LEDs indicating radio status and supports light colors in red and green. The DX80N9Q45THA operates on a 900 MHz transmission frequency with a maximum distance of 3.2km for transmission at nominal emission power, utilizing FHSS (Frequency Hopping Spread Spectrum) technology for its operation. It is designed with a temperature and humidity sensor, and a 1-wire serial interface for sensor node functions. The supply voltage required is 3.6Vdc from an internal battery, and the unit comes in a black housing. It is mounted using an M30 thread.
