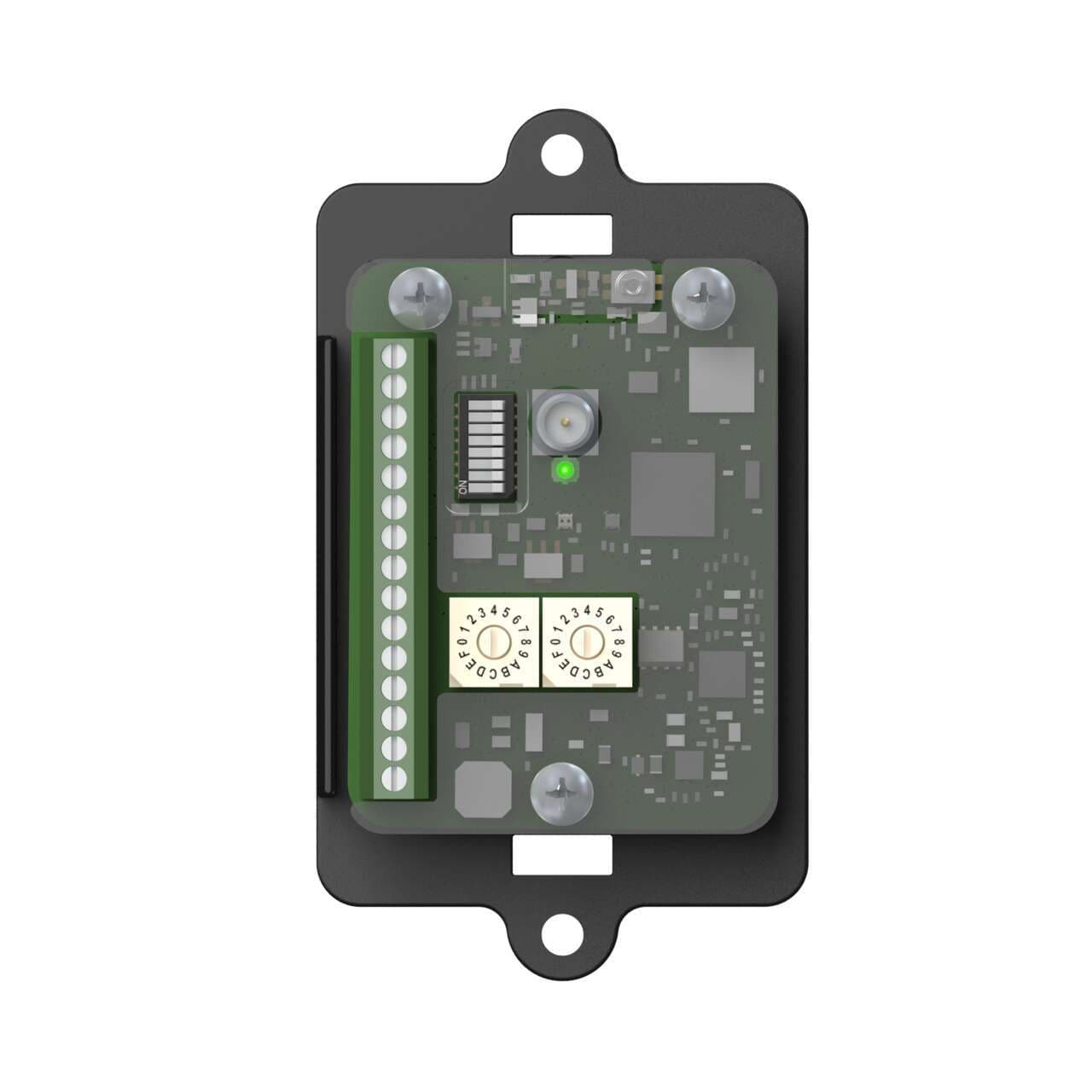

DX80N9X6S-PB2 Banner I/O Modules
Part#:DX80N9X6S-PB2
Manufacturer:Banner
Alt. Part#:25196
Product Lifecycle:Active
Get a quick Quote!
DX80 Perf 900 MHz Node 1 W Board; 10-30 V dc Ext Antenna; Input: 2 Discrete 2 Analog; Output: 2 Discrete 2 Analog
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N9X6S-PB2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight158.7572 g
- Country Of OriginUS
- Housing Style Board Level
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Tree Topology No
- Input/Output Analog & Discrete
- Output Details 2 PNP, 2 0-20 mA Analog
- Power Supply 10-30 V dc
- Star Topology Yes
- Feature: Hazardous Area Yes
- Device Type Node
- Max Temp Operating Conditions 85
- Modbus RTU No
- Discrete Outputs Yes
- Relative Humidity 95%
- PROFINET No
- Min Operating Temperature ( °C) -40
- Modbus/TCP No
- Wireless Radio Frequency 900 MHz
- Wireless Yes
- Power DC
- Analog Outputs Yes
- Input Details 2 Selectable Discrete, 2 0-20 mA
- Min Temp Operating Conditions -40
- Analog Inputs Yes
- Discrete Inputs Yes
- Max Operating Temperature ( °C) 85
- Point-to-Multipoint Topology Yes
- EtherNet/IP No
- 1-wire Serial Interface No
- Point-to-Point Topology Yes
- RS-232 No
- RS-485 No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N9X6S-PB2 Description
Banner Engineering DX80N9X6S-PB2 is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. This unit features dimensions of H53mm x W94mm x D26.8mm and is equipped with 2 analog inputs and 2 analog outputs, both supporting 0-20mA with 12-bit resolution. Additionally, it includes 2 digital inputs and 2 digital outputs, with the digital outputs capable of handling 30Vdc at 100mA and the digital inputs designed for 30Vdc at 3mA, both PNP type. The DX80N9X6S-PB2 utilizes Frequency Hopping Spread Spectrum (FHSS) technology for enhanced communication reliability and operates on a 900 MHz ISM band with a 1W power output, enabling a maximum transmission distance of 9.6km at nominal emission power. It features a rectangular shape with a bi-color LED for Ex e II applications and offers detachable screw-clamp connectors alongside an RP-SMA connector for connectivity. The unit requires a supply voltage of 10-30Vdc, with a nominal range of 12Vdc-24Vdc.
