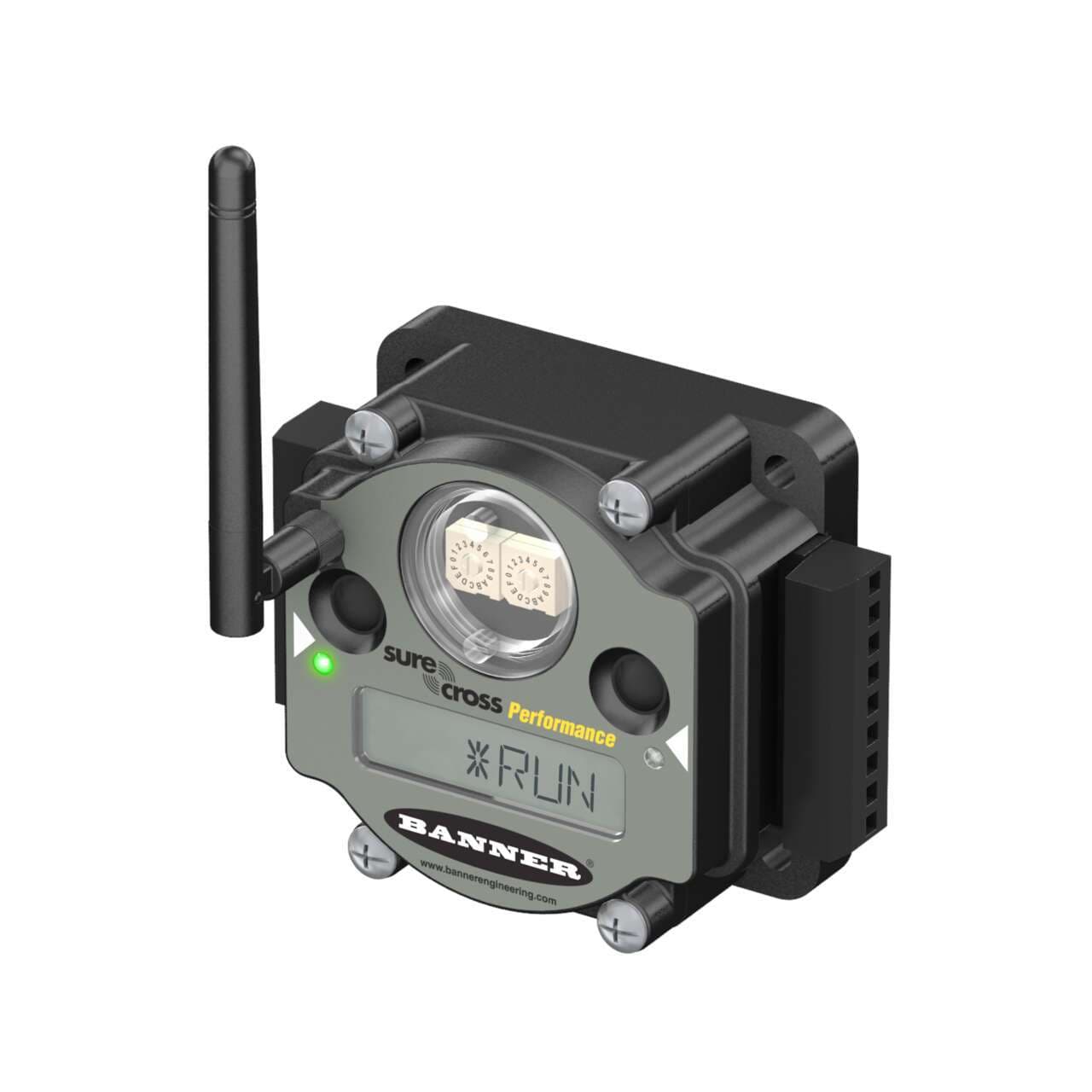

DX80N9X6S-P2C Banner I/O Modules
Part#:DX80N9X6S-P2C
Manufacturer:Banner
Alt. Part#:18797
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 900 mHz Node 1 W IP20; 10-30 V dc External Antenna; Input: 4 Discrete 2 Analog; Output: 4 Discrete 2 Analog 0-20 mA; External Terminals
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N9X6S-P2C Banner price in the box on the right side or send a quick quote.
Product Details
- Weight430.9124 g
- Country Of OriginUS
- Analog Outputs Yes
- Output Details 4 PNP Discrete, 2 0-20 mA analog
- Star Topology Yes
- PROFINET No
- Housing Style External Terminals
- Power Supply 10-30 V dc
- Point-to-Point Topology Yes
- Input/Output Analog & Discrete
- LCD Display Yes
- Min Operating Temperature ( °C) -20
- Wireless Yes
- Analog Inputs Yes
- Min Temp Operating Conditions -20
- Modbus RTU No
- Device Type Node
- Environmental Rating (NEMA) NEMA 1
- Point-to-Multipoint Topology Yes
- RS-232 No
- Power DC
- Environmental Rating (IP) IP20
- Relative Humidity 95%
- Modbus/TCP No
- Input Details 4 Selectable Discrete, 2 0-20 mA
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Discrete Inputs Yes
- Max Temp Operating Conditions 80
- Feature: Hazardous Area Yes
- Wireless Radio Frequency 900 MHz
- Discrete Outputs Yes
- Max Operating Temperature ( °C) 80
- EtherNet/IP No
- Tree Topology No
- 1-wire Serial Interface No
- RS-485 No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N9X6S-P2C Description
Banner Engineering DX80N9X6S-P2C is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. It measures H44.5mm x W103.3mm x D80.1mm, making it compact for easy installation. The DX80N9X6S-P2C is equipped with 2 analog outputs (0-20mA; 12-bit), 4 digital outputs (30Vdc; Sourcing; 100mA), 2 analog inputs (0-20mA / 0-10Vdc; 12-bit), and 4 digital inputs (30Vdc 3mA; PNP/NPN), supporting versatile connectivity options. It utilizes FHSS (Frequency Hopping Spread Spectrum) technology for reliable data transmission at a frequency of 900MHz within the ISM band, capable of reaching a maximum transmission distance of 9.6km at nominal emission power. The unit's design includes 2 buttons, 2 bi-color LEDs for Ex e II applications, detachable screw-clamp connectors, and an RP-SMA connector for easy setup and monitoring. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) for operation.
Related documents DX80N9X6S-P2C Specs
