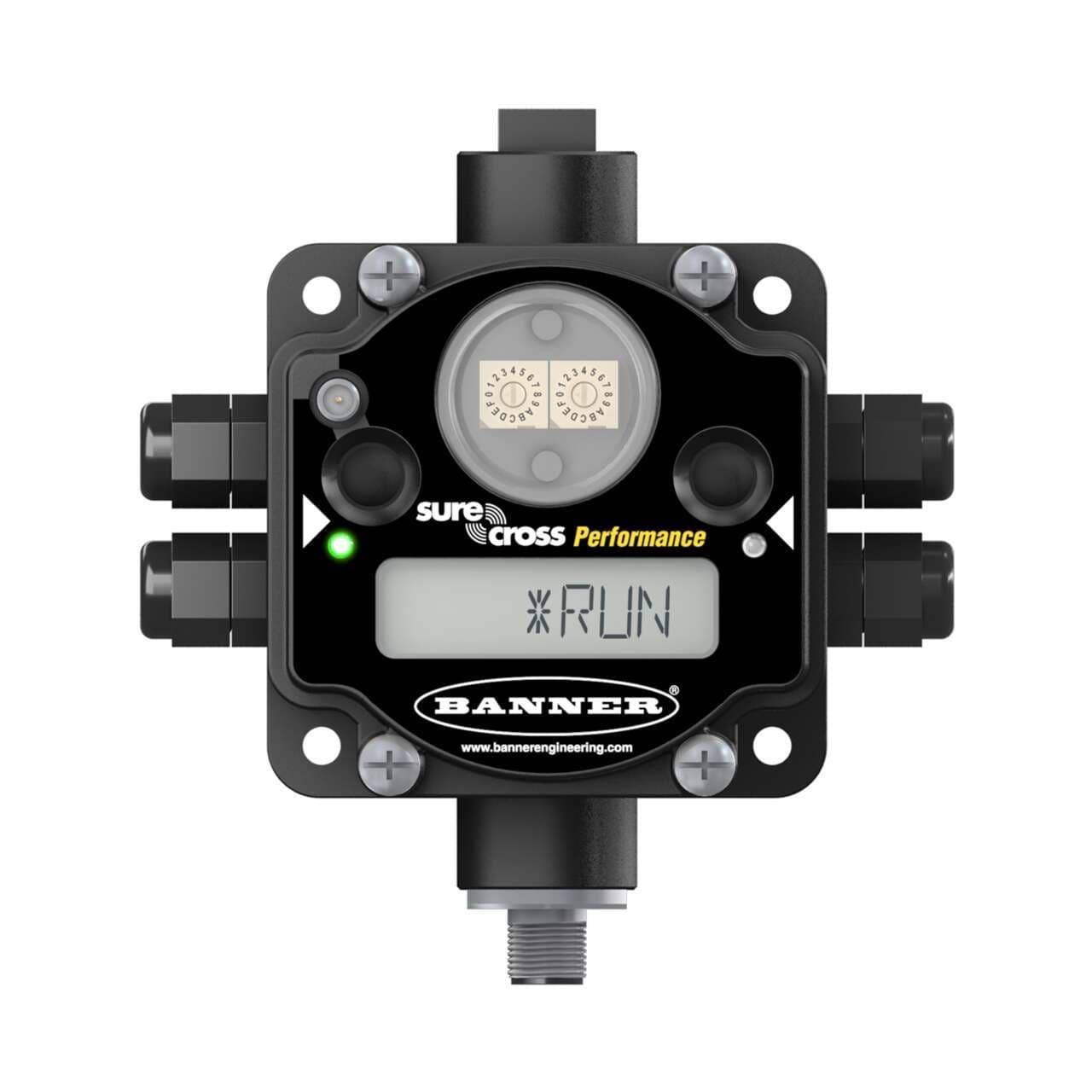

DX80N9X2S-P5 Banner I/O Modules
Part#:DX80N9X2S-P5
Manufacturer:Banner
Alt. Part#:18142
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 900 mHz Node 1 W IP67; FlexPower External Antenna; Input: 2 Discrete NPN 4 Analog; Output: 2 Discrete NMOS
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N9X2S-P5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight553.38224 g
- Country Of OriginUS
- Power Flex Power
- Max Operating Temperature ( °C) 80
- Power Supply 10-30 V dc or 3.6-5.5 V dc low power option
- EtherNet/IP No
- Input/Output Analog & Discrete
- Environmental Rating (IP) IP67
- Point-to-Multipoint Topology Yes
- RS-232 No
- Discrete Inputs Yes
- Point-to-Point Topology Yes
- RS-485 No
- Output Details 2 NMOS Discrete
- LCD Display Yes
- Star Topology Yes
- Wireless Yes
- Housing Style Enclosed Terminals
- Min Temp Operating Conditions -20
- Modbus/TCP No
- Device Type Node
- Max Temp Operating Conditions 80
- Relative Humidity 95%
- Tree Topology No
- 1-wire Serial Interface No
- Analog Inputs Yes
- Ships With Battery No
- Modbus RTU No
- Input Details 2 NPN Discrete, 4 Selectable Analog
- Environmental Rating (NEMA) NEMA 6
- Feature: Hazardous Area No
- Discrete Outputs Yes
- Min Operating Temperature ( °C) -20
- PROFINET No
- Wireless Radio Frequency 900 MHz
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N9X2S-P5 Description
Banner Engineering DX80N9X2S-P5 is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. The unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. Its dimensions are H59.8mm x W126.7mm x D117.4mm. The DX80N9X2S-P5 includes 2 digital outputs (30Vdc; NMOS; 1A) and 4 analog inputs (0-20mA / 0-10Vdc; 12-bit) for versatile connectivity. It operates on a 900 MHz transmission frequency with a rectangular shape. Additionally, it has 2 digital inputs (30Vdc 3mA; NPN) and is classified as a performance node within the SureCross DX80 series. The design incorporates 2 buttons, 2 bi-color LEDs, utilizes FHSS (Frequency Hopping Spread Spectrum) technology and Time Division Multiple Access (TDMA). Connection options include a wiring chamber with screw-clamp connections, 4 x Pg7 cable accesses, a gld. 1/2" NPT threaded cable access, a 5-pin M12 male connector, and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on the 900MHz ISM band with 1W power, capable of a maximum 9.6km transmission distance at nominal emission power.
