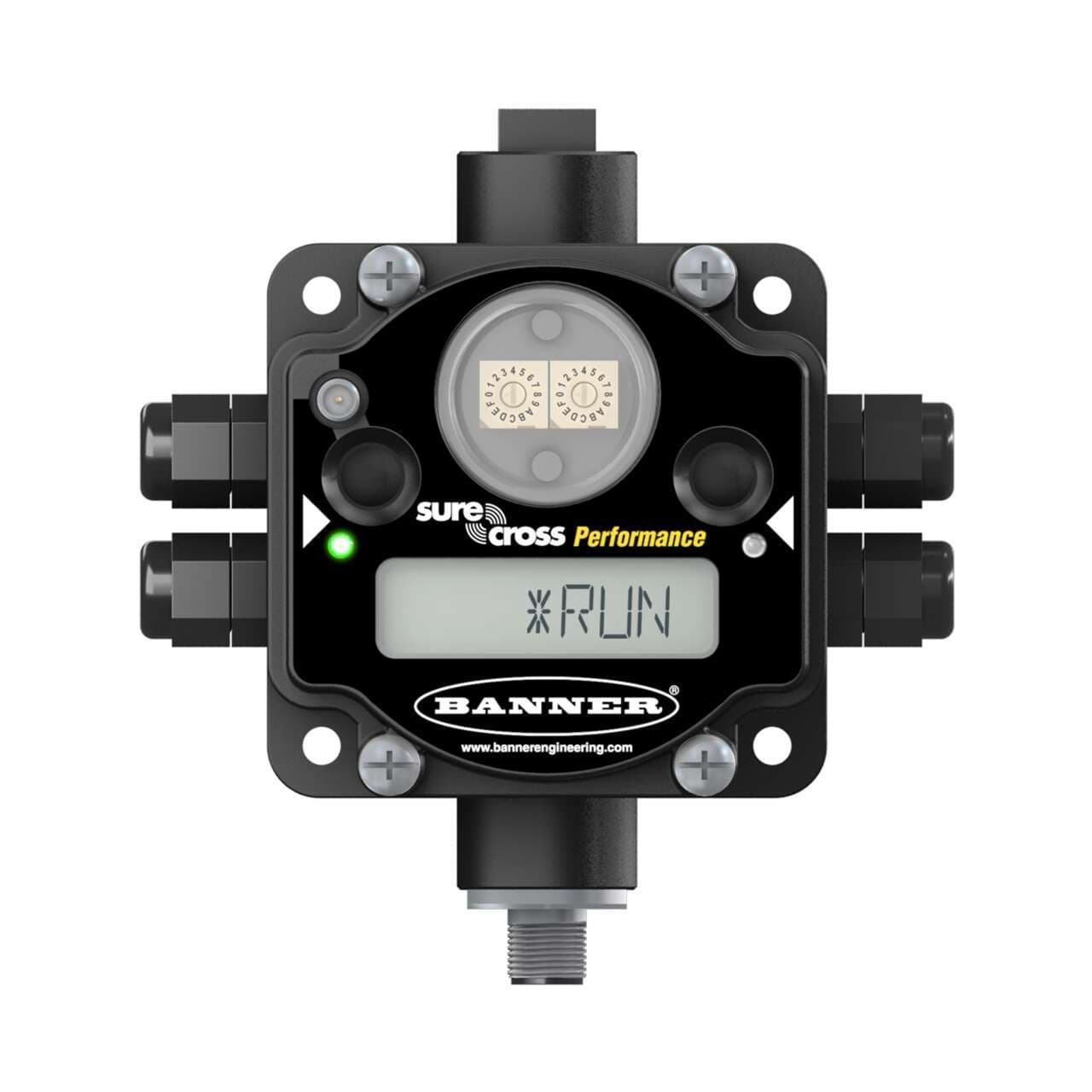

DX80N9X2S-P1 Banner I/O Modules
Part#:DX80N9X2S-P1
Manufacturer:Banner
Alt. Part#:17531
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 900 mHz Node 1 W IP67; FlexPower External Antenna; Input: 2 Discrete 2 Analog 2 Thermistor; Output: 2 Discrete NMOS
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N9X2S-P1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight656.801216 g
- Country Of OriginUS
- Device Type Node
- Environmental Rating (NEMA) NEMA 6
- Feature: Hazardous Area No
- PROFINET No
- Point-to-Point Topology Yes
- Min Operating Temperature ( °C) -20
- Input/Output Analog & Discrete
- Environmental Rating (IP) IP67
- Star Topology Yes
- RS-232 No
- Discrete Inputs Yes
- Max Operating Temperature ( °C) 80
- EtherNet/IP No
- Wireless Radio Frequency 900 MHz
- Housing Style Enclosed Terminals
- Power Supply 10-30 V dc or 3.6-5.5 V dc low power option
- Tree Topology No
- RS-485 No
- Analog Inputs Yes
- Point-to-Multipoint Topology Yes
- LCD Display Yes
- Input Details 2 Selectable Discrete, two Analog, and two Thermistor
- Max Temp Operating Conditions 80
- Relative Humidity 95%
- Discrete Outputs Yes
- Min Temp Operating Conditions -20
- Modbus RTU No
- Output Details 2 NMOS Discrete
- Ships With Battery No
- Modbus/TCP No
- 1-wire Serial Interface No
- Power Flex Power
- Application: Temperature Input Yes
- Wireless Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N9X2S-P1 Description
Banner Engineering DX80N9X2S-P1 is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, an EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. The unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 and NEMA 6. Its dimensions are H59.8mm x W126.7mm x D117.4mm. The DX80N9X2S-P1 includes 2 digital outputs (30Vdc; NMOS Sinking; 1A), 2 analog inputs (0-20mA / 0-10Vdc / Thermistor 10kΩ; 12-bit), and 2 digital inputs (30Vdc 3mA; PNP/NPN), supporting a variety of signal types. It utilizes FHSS (Frequency Hopping Spread Spectrum) technology for communication, with a transmission frequency of 900 MHz. The design incorporates 2 buttons, 2 bi-color LEDs, and offers connections through a wiring chamber with screw-clamp connections, 4 x Pg7 cable accesses equipped with gld. 1/2" NPT threaded cable access, a 5-pin M12 male connector, and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates within the 900MHz ISM band at 1W, capable of a maximum transmission distance of 9.6km at nominal emission power.
