DX80N9X1W-P14L Banner I/O Modules
Part#:DX80N9X1W-P14L
Manufacturer:Banner
Alt. Part#:803747
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 900 MHz Node 1 W; Internal Battery Internal Antenna; Input: 1 Configurable Discrete, 1 Analog Voltage (Configurable to Current), 1 Thermistor; 1 Switch Power Output; No LCD No Rotary Dials
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N9X1W-P14L Banner price in the box on the right side or send a quick quote.
Product Details
- Weight517.09488 g
- Country Of OriginUS
- Discrete Inputs Yes
- Ships With Battery Yes
- Modbus RTU Yes
- Input Details Configurable discrete, configurable analog, thermistor, asynchronous counter
- Environmental Rating (IP) IP67
- Analog Inputs Yes
- Min Temp Operating Conditions -40
- EtherNet/IP No
- Power Supply D Cell Lithium Battery
- Modbus/TCP No
- Input/Output Analog & Discrete
- Max Temp Operating Conditions 85
- Output Details Switch Power
- Star Topology Yes
- PROFINET No
- Tree Topology No
- RS-232 No
- Device Type Node
- Environmental Rating (NEMA) NEMA 6
- Application: Object Counting Yes
- Power Battery
- Relative Humidity 95%
- Feature: Hazardous Area No
- Housing Style Integrated Battery
- Point-to-Point Topology Yes
- Application: Temperature Input Yes
- Point-to-Multipoint Topology Yes
- 1-wire Serial Interface No
- RS-485 Yes
- Wireless Yes
- Wireless Radio Frequency 900 MHz
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N9X1W-P14L Description

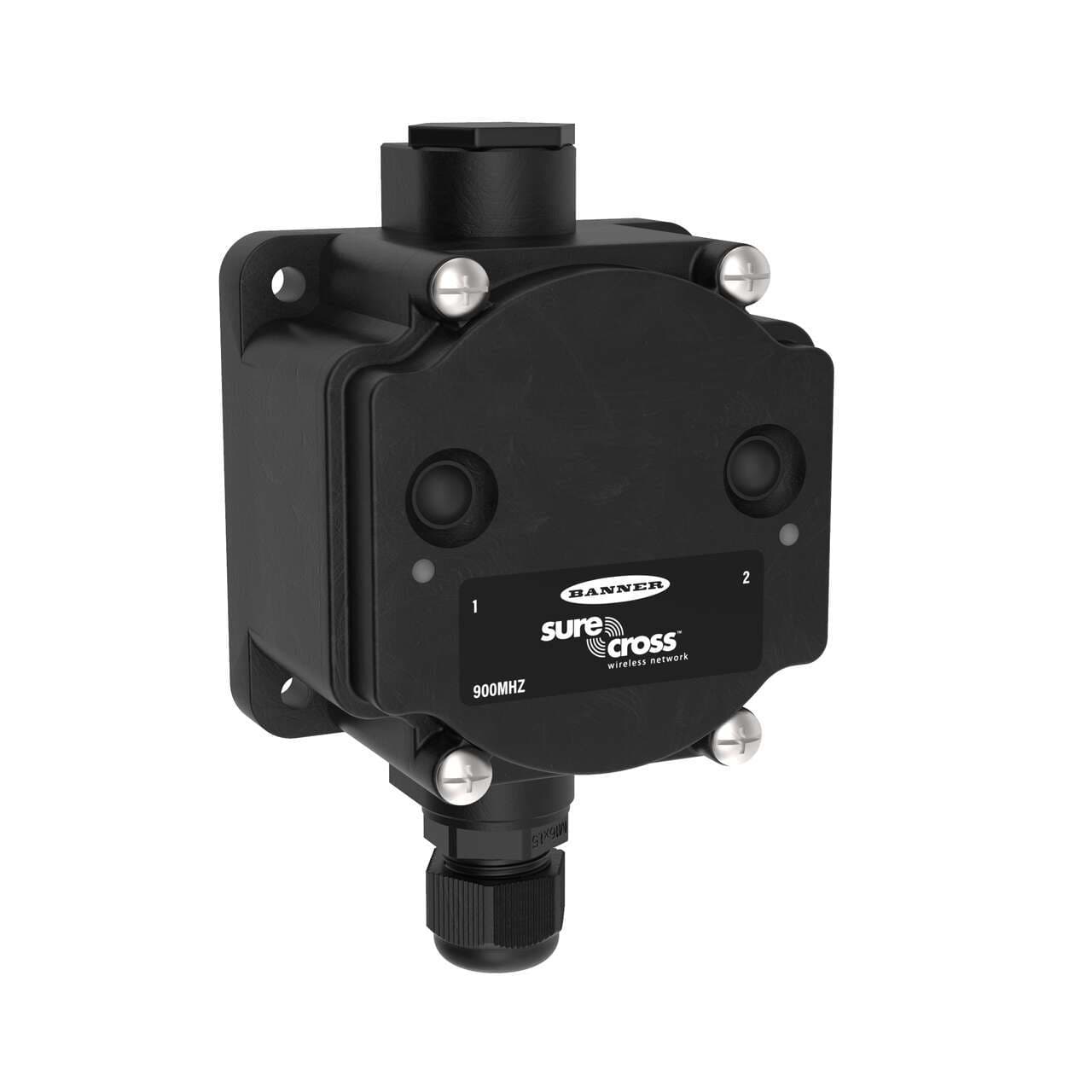

Banner Engineering DX80N9X1W-P14L is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 and NEMA 6. This unit has dimensions of H56.6mm x W106.7mm x D80.9mm and features a rectangular shape. It includes 1 x switch power output for digital or analog signals, 1 x analog input (0-20mA / 0-10Vdc; 12-bit), 1 x analog input for a Thermistor 10kΩ, and 1 x digital input (30Vdc 3mA; PNP/NPN). The DX80N9X1W-P14L utilizes FHSS (Frequency Hopping Spread Spectrum) technology, has 2 x buttons, 2 x bi-color LEDs for design, and a wiring chamber with screw-clamp connections plus 2 x 1/2" NPT threaded cable accesses for connectivity. It is powered by a 3.6Vdc internal battery and operates on a 900MHz ISM band frequency with a 1W power output, capable of a maximum transmission distance of 9.6km at nominal emission power. The housing is black.
Related documents DX80N9X1W-P14L Specs
