DX80N9X1S-P6 Banner I/O Modules
Part#:DX80N9X1S-P6
Manufacturer:Banner
Alt. Part#:18648
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 900 MHz Node 1 W IP67; 1-Wire Serial Interface; Integrated Battery
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N9X1S-P6 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight544.3104 g
- Country Of OriginUS
- Housing Style Integrated Battery
- Max Temp Operating Conditions 80
- Point-to-Multipoint Topology Yes
- Device Type Node
- LCD Display Yes
- Application: Temperature Input Yes
- Application: Vibration Sensor Input Yes
- Wireless Yes
- Wireless Radio Frequency 900 MHz
- Environmental Rating (NEMA) NEMA 6
- Environmental Rating (IP) IP67
- Min Operating Temperature ( °C) -20
- Input/Output Serial
- Power Battery
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Ships With Battery Yes
- Power Supply D Cell Lithium Battery
- Input Details 1 Wire Serial interface
- Relative Humidity 95%
- Min Temp Operating Conditions -20
- Max Operating Temperature ( °C) 80
- Star Topology Yes
- Feature: Hazardous Area Yes
- Application: Ultrasonic Yes
- RS-485 No
- Application: Relative Humidity Input Yes
- Modbus/TCP No
- EtherNet/IP No
- Tree Topology No
- PROFINET No
- 1-wire Serial Interface Yes
- Modbus RTU No
- RS-232 No
- Point-to-Point Topology Yes
- Application: Tank Level Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N9X1S-P6 Description

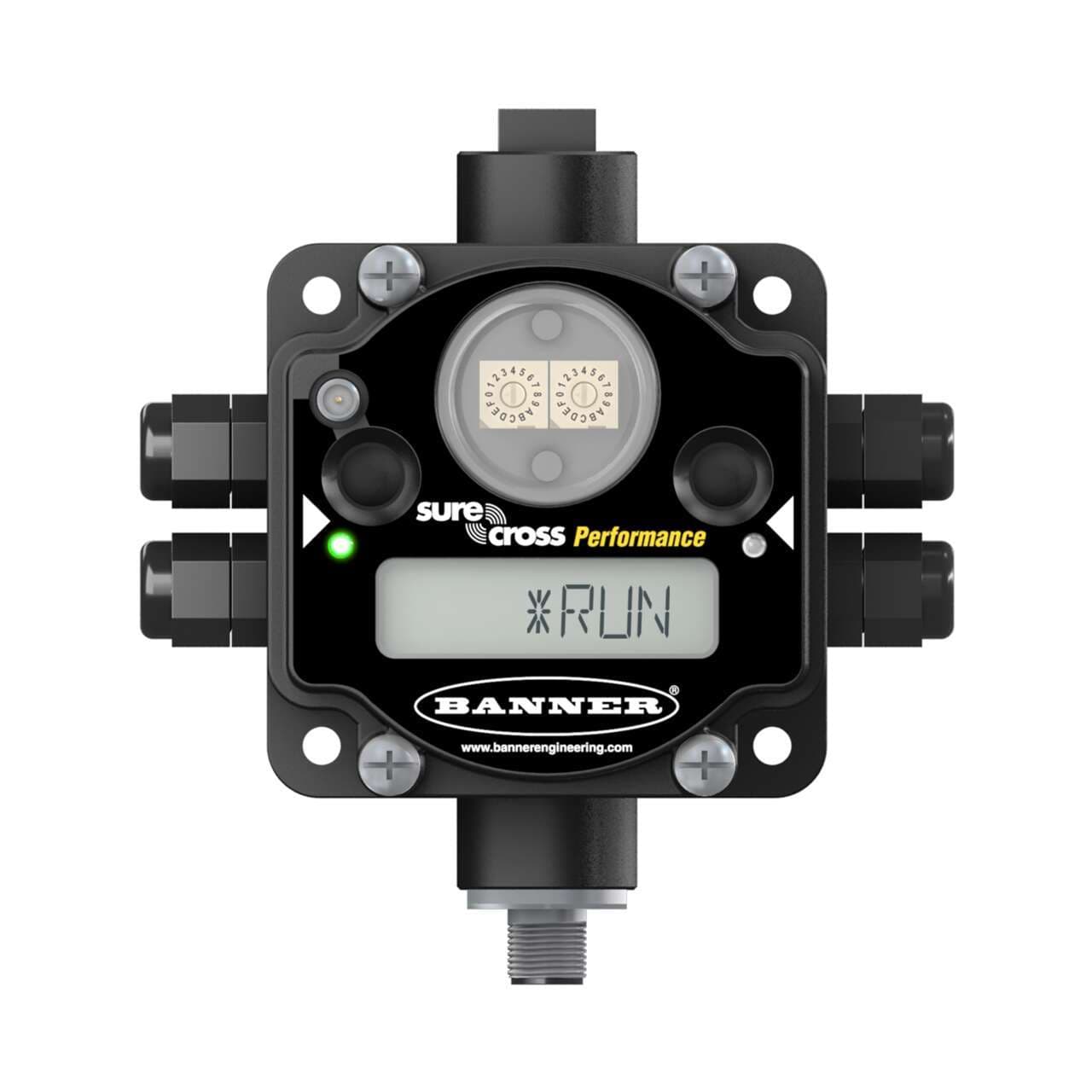

Banner Engineering DX80N9X1S-P6 is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, a polycarbonate rotary dial cover, polyester labels, an EDPM rubber cover gasket, and a nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 and NEMA 6, suitable for demanding conditions. It utilizes 900 MHz Frequency Hopping Spread Spectrum (FHSS) technology and Time Division Multiple Access (TDMA) for reliable communication, with a transmission frequency of 900 MHz within the ISM band at 1W power, capable of reaching a maximum distance of 9.6km. The design includes 2 buttons, 2 bi-color LEDs for Ex e II applications, a 5-pin M12 female connector, and an RP-SMA connector for connectivity. It is powered by an internal 3.6Vdc battery.
Related documents DX80N9X1S-P6 Specs
