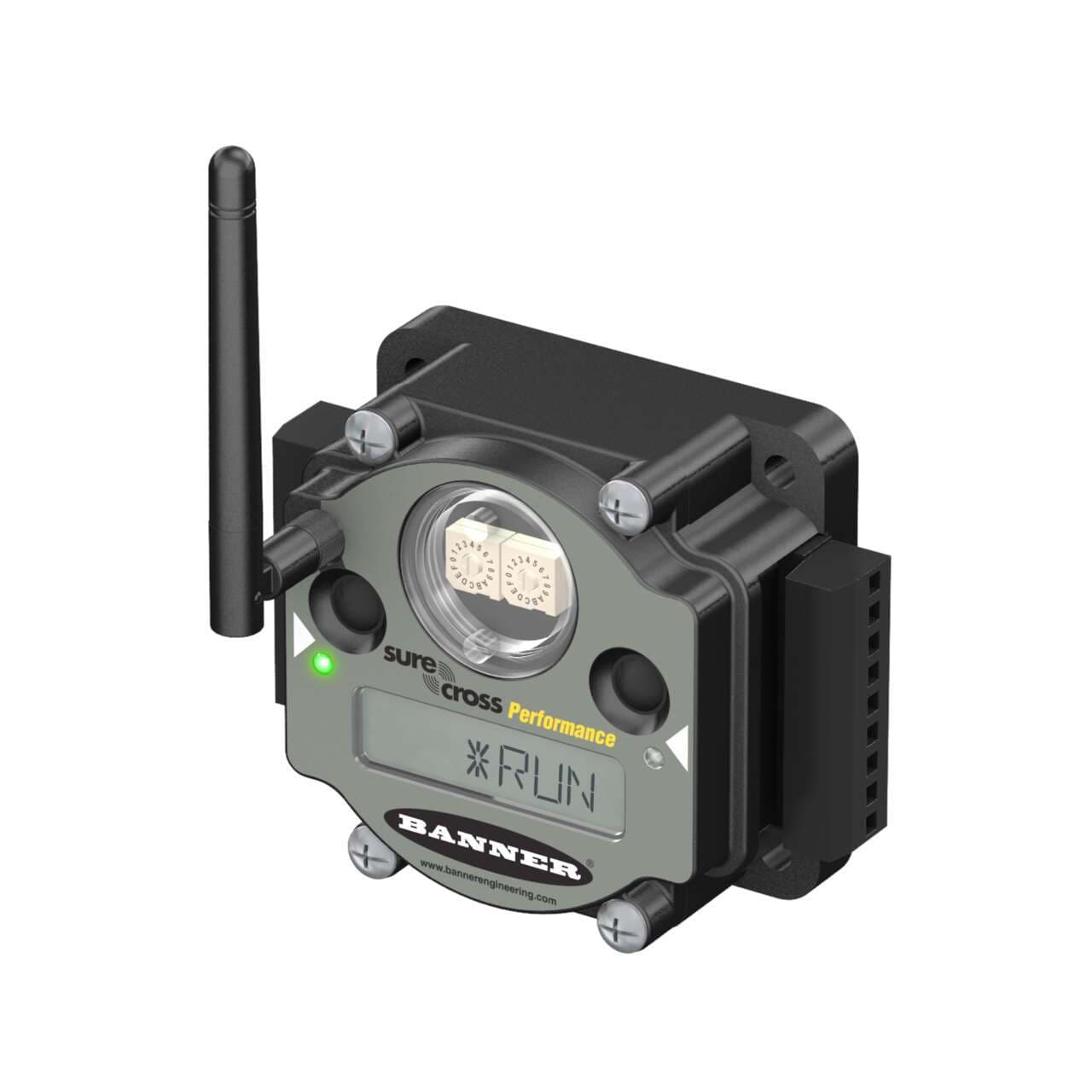

DX80N2X6S-P2C Banner I/O Modules
Part#:DX80N2X6S-P2C
Manufacturer:Banner
Alt. Part#:18798
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 2.4 GHz Node 65 mW IP20; 10-30 V dc External Antenna; Input: 4 Discrete 2 Analog; Output: 4 Discrete 2 Analog 0-20 mA; External Terminals
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N2X6S-P2C Banner price in the box on the right side or send a quick quote.
Product Details
- Weight612.3492 g
- Country Of OriginUS
- Analog Inputs Yes
- Min Temp Operating Conditions -20
- Environmental Rating (NEMA) NEMA 1
- Modbus/TCP No
- Device Type Node
- Tree Topology No
- Min Operating Temperature ( °C) -20
- Wireless Radio Frequency 2.4 GHz
- Analog Outputs Yes
- Point-to-Multipoint Topology Yes
- RS-232 No
- Discrete Inputs Yes
- Power Supply 10-30 V dc
- Output Details 4 PNP Discrete, 2 0-20 mA analog
- Modbus RTU No
- Power DC
- LCD Display Yes
- Star Topology Yes
- Wireless Yes
- Input Details 4 Selectable Discrete, 2 0-20 mA
- Environmental Rating (IP) IP20
- Relative Humidity 95%
- PROFINET No
- Discrete Outputs Yes
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Point-to-Point Topology Yes
- RS-485 No
- Input/Output Analog & Discrete
- Max Temp Operating Conditions 80
- Feature: Hazardous Area Yes
- 1-wire Serial Interface No
- Housing Style External Terminals
- Max Operating Temperature ( °C) 80
- EtherNet/IP No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N2X6S-P2C Description
Banner Engineering DX80N2X6S-P2C is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 NEMA 1. It measures H44.5mm x W103.3mm x D80.1mm and has a rectangular shape. The DX80N2X6S-P2C is equipped with 2 analog outputs (0-20mA; 12-bit), 4 digital outputs (30Vdc; Sourcing; 100mA), 2 analog inputs (0-20mA / 0-10Vdc; 12-bit), and 4 digital inputs (30Vdc 3mA; PNP/NPN). It utilizes FHSS (Frequency Hopping Spread Spectrum) technology for communication, operates on a 2.4GHz ISM band frequency with a 65mW power, and can achieve a maximum transmission distance of 3.2km at nominal emission power. The design includes 2 buttons, 2 bi-color LEDs for Ex e II applications, detachable screw-clamp connectors, and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.).
Related documents DX80N2X6S-P2C Specs
