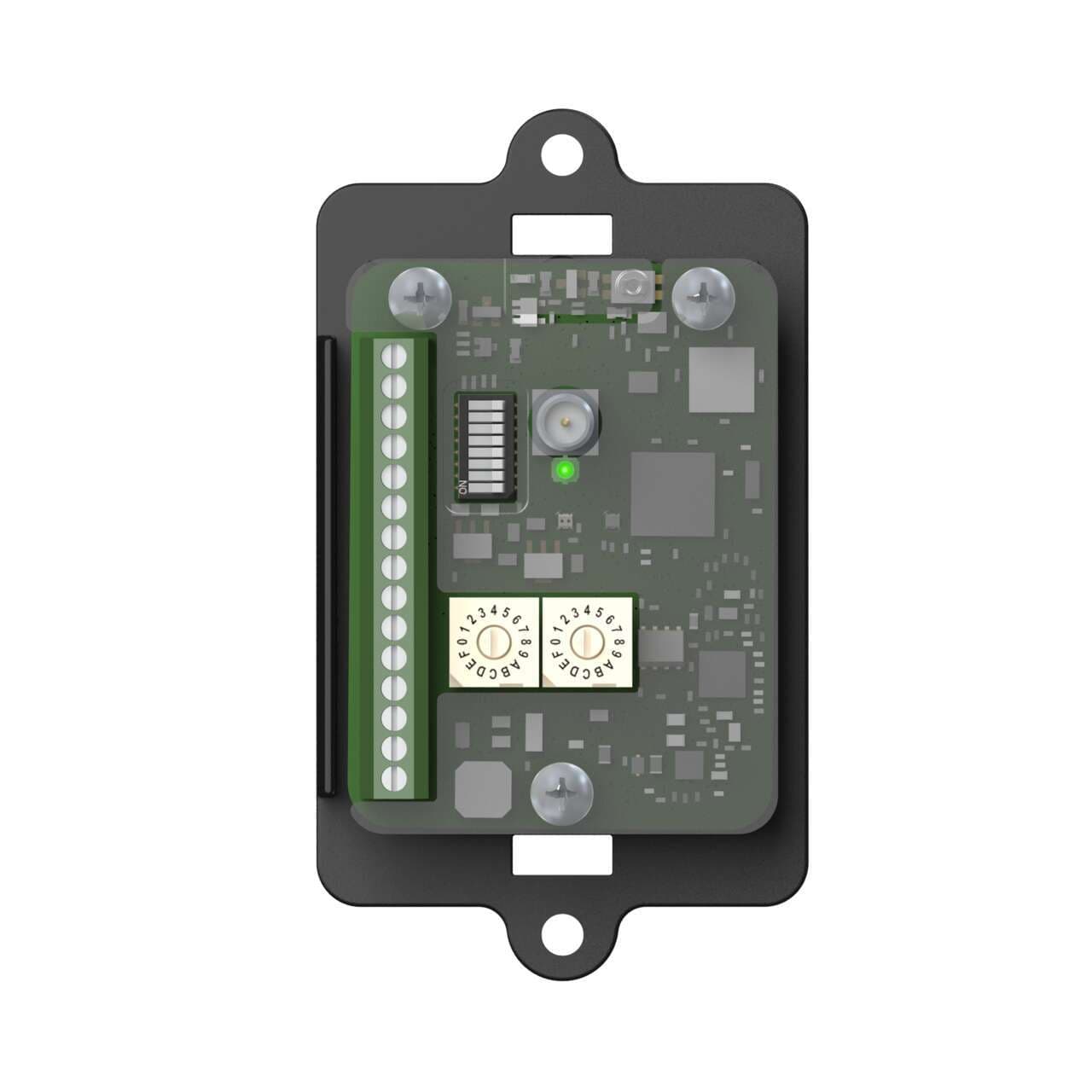

DX80N2X2S-PB1 Banner I/O Modules
Part#:DX80N2X2S-PB1
Manufacturer:Banner
Alt. Part#:25758
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 2.4 GHz Node 65 mW; FlexPower External Antenna; Input: 2 Discrete 2 Analog; Output: 2 Discrete NMOS
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N2X2S-PB1 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight35.380176 g
- Country Of OriginUS
- Device Type Node
- Environmental Rating (IP) IP67
- Feature: Hazardous Area Yes
- RS-485 No
- Power Supply 10-30 V dc or 3.6-5.5 V dc low power option
- Relative Humidity 95%
- Tree Topology No
- Output Details 2 NMOS Discrete
- Max Operating Temperature ( °C) 85
- EtherNet/IP No
- Discrete Inputs Yes
- Min Temp Operating Conditions -40
- Modbus RTU No
- Analog Inputs Yes
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- Power Flex Power
- Discrete Outputs Yes
- Min Operating Temperature ( °C) -40
- Input Details 2 NPN Discrete, 2 0-20 mA Analog
- Ships With Battery No
- Modbus/TCP No
- RS-232 No
- Housing Style Board Level
- Environmental Rating (NEMA) NEMA 6
- Point-to-Multipoint Topology Yes
- PROFINET No
- Input/Output Analog & Discrete
- Max Temp Operating Conditions 85
- Point-to-Point Topology Yes
- Star Topology Yes
- 1-wire Serial Interface No
- Wireless Radio Frequency 2.4 GHz
- Wireless Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N2X2S-PB1 Description
Banner Engineering DX80N2X2S-PB1 is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. The unit has dimensions of H53mm x W94mm x D26.8mm. It features 2 digital outputs (30Vdc; NMOS; 10mA) and 2 analog inputs (0-20mA; 12-bit), alongside 2 digital inputs (30Vdc 3mA; NPN). This RTU utilizes Flexpower performance radio module technology and is equipped with a bi-color LED for Ex e II applications, incorporating FHSS (Frequency Hopping Spread Spectrum) technology for enhanced communication. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector. The device requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on a 2.4GHz ISM band frequency with a 65mW power output, capable of achieving a maximum transmission distance of 3.2km at nominal emission power.
