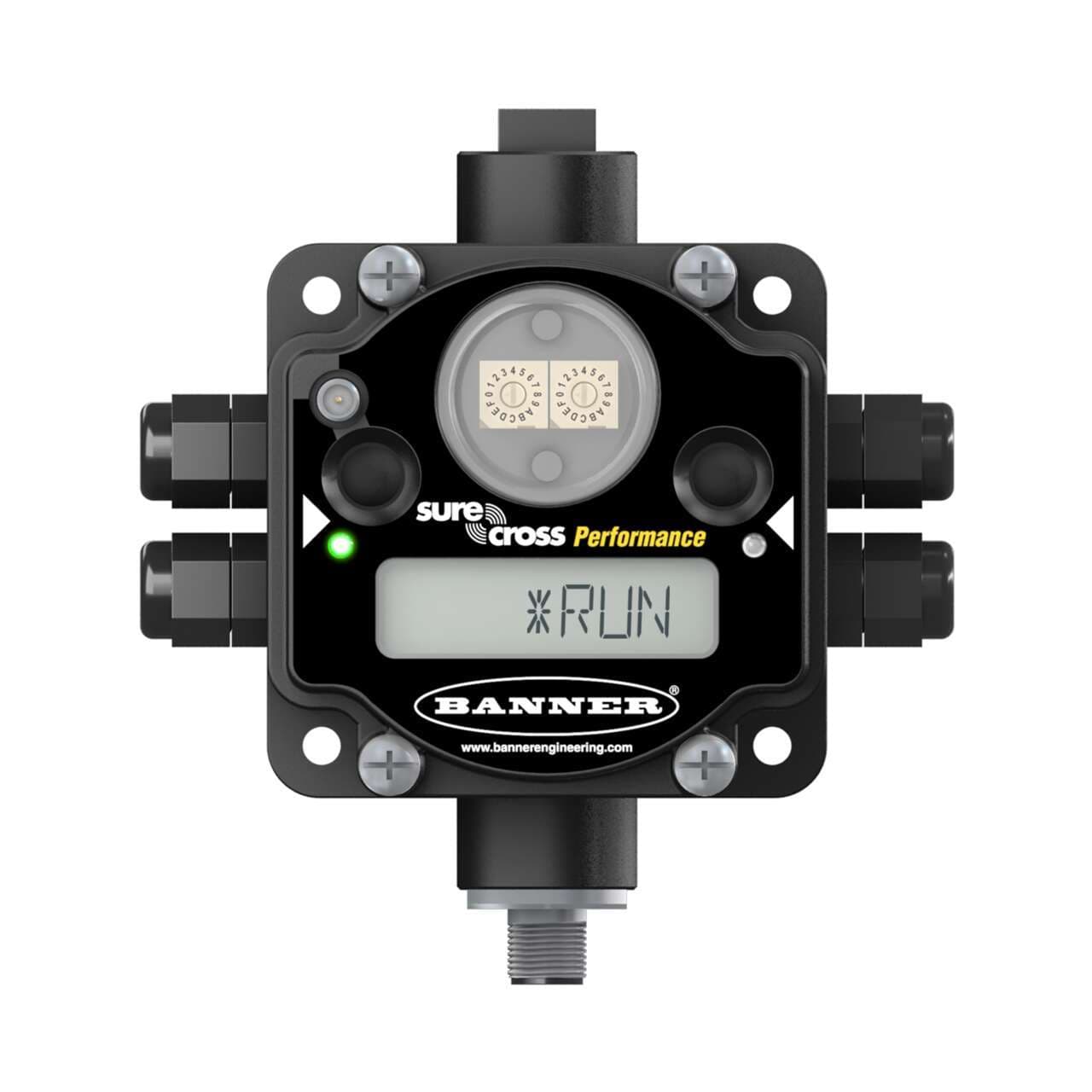

DX80N2X2S-P7 Banner I/O Modules
Part#:DX80N2X2S-P7
Manufacturer:Banner
Alt. Part#:17454
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 2.4 GHz Node 65 mW IP67; FlexPower External Antenna RS485; Up to 12 Discrete NPN IO
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N2X2S-P7 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight612.3492 g
- Country Of OriginUS
- Max Temp Operating Conditions 80
- Input Details 12 NPN (not exceed 12 I/O points)
- Input/Output Discrete
- Min Temp Operating Conditions -20
- Feature: Hazardous Area No
- Environmental Rating (NEMA) NEMA 6
- Housing Style Enclosed Terminals
- Discrete Outputs Yes
- Max Operating Temperature ( °C) 80
- Min Operating Temperature ( °C) -20
- EtherNet/IP No
- RS-232 No
- Device Type Node
- Wireless Yes
- Output Details 12 NMOS (not exceeding 12 I/O points)
- LCD Display Yes
- Point-to-Point Topology Yes
- Wireless Radio Frequency 2.4 GHz
- Power Supply 10-30 V dc or 3.6-5.5 V dc low power option
- Relative Humidity 95%
- Ships With Battery No
- Point-to-Multipoint Topology Yes
- Modbus/TCP No
- Modbus RTU No
- Power Flex Power
- PROFINET No
- Star Topology Yes
- 1-wire Serial Interface No
- Environmental Rating (IP) IP67
- Discrete Inputs Yes
- Tree Topology No
- RS-485 Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N2X2S-P7 Description
Banner Engineering DX80N2X2S-P7 is a Remote Terminal Unit (RTU) designed for surface mounting. It features a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. The unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 and NEMA 6. With dimensions of H59.8mm x W126.7mm x D117.4mm, this rectangular-shaped RTU supports a transmission frequency of 2400 MHz. It includes 12 digital inputs (30Vdc 3mA; Sinking) that can also function as digital NMOS 100mA 30Vdc outputs. The DX80N2X2S-P7 is part of the SureCross DX80 series and incorporates 2 buttons, 2 bi-color LEDs, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology for enhanced communication. Connection options include a wiring chamber with screw-clamp connections, 4 x Pg7 cable accesses with gld. 1/2" NPT threaded cable access, a 5-pin M12 male connector, and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on the 2.4GHz ISM band with a 65mW frequency, capable of achieving a maximum transmission distance of 3.2km at nominal emission power.
Related documents DX80N2X2S-P7 Specs
